HEATING & AIR CONDITIONING - COOLER UNIT

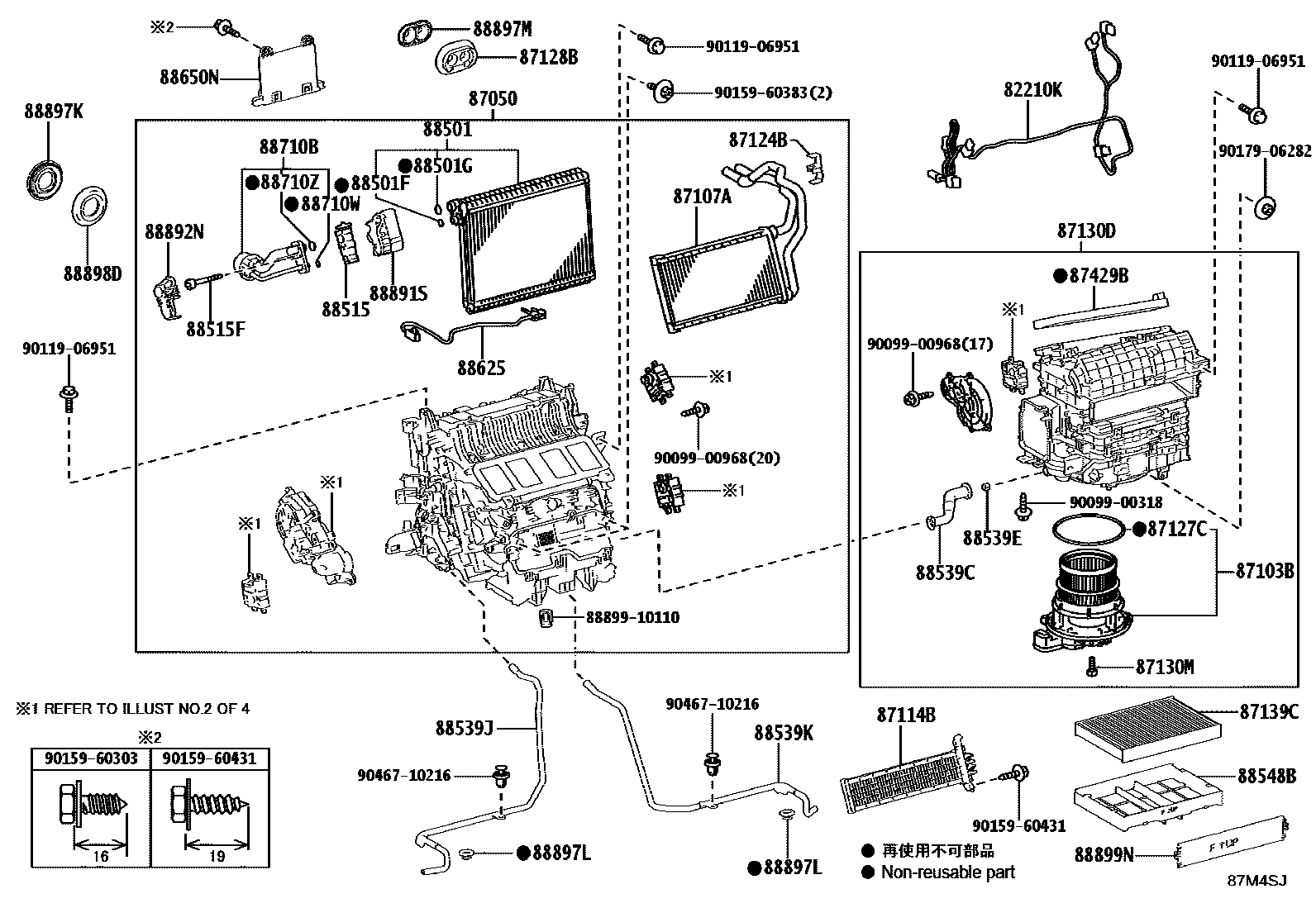

0001 1FRONT(2ZONE) 0002 1FRONT(2ZONE RR-FACE) 0003 1FRONT(2ZONE) 0004 1FRONT(2ZONE RR-FACE) 0005 1DAMPER SERVO 0006 1DAMPER SERVO 0007 1REAR 0008 1COOL BOX

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60620iTJH252,VJA252..CHI,GEN202402

main82212-60630iVJA252..RUS202402

"OVERTRAIL" PACKAGE

main82212-60660iVJA252..ARL202402

"OVERTRAIL" PACKAGE

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60R60iVJA252..RUS202402

"OVERTRAIL" PACKAGE

main87050-60R90iVJA252..ARL202402-202411

BRUNEI SPEC&"OVERTRAIL" PACKAGE

main87050-60S00iVJA252..ARL202402

"OVERTRAIL" PACKAGE

main87050-60S40iTJH252202403

"OVERTRAIL+" PACKAGE

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50180iTJH252,VJA252..LHD202402

main87103-50190iVJA252..ARL202402-202410

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60530iTJH252,VJA252..LHD202402

main87107-60540iVJA252..ARL202402

87114BCOVER, HEATER

main87114-30010iTJH252,VJA252..ARL,CHI,GEN202402

87124BCLAMP, HEATER

main87124-33070iTJH252,VJA252202402

87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1

main87127-11010iVJA252..ARL202402-202410

87128BGROMMET, HEATER, NO.2

main87128-28020iTJH252,VJA252202402

87130DBLOWER ASSY

main87130-60641iVJA252..ARL202410

main87130-60651iTJH252,VJA252..LHD202402

87130MSCREW(FOR BLOWER)

main87193-87101iTJH252,VJA252202402

87139CFILTER, CLEAN AIR

main87139-30110iTJH252,VJA252202402

DEODORANT FILTER

main87139-60030iVJA252202402

POLLEN FILTER

main87139-60040iTJH252202403

MICRO DUST FILTER

87429BPACKING, COOLER UNIT, NO.1

main87429-60020iTJH252,VJA252202402

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60620iTJH252202403

main88501-60670iVJA252..LHD202402

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iTJH252,VJA252202402

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iTJH252,VJA252202402

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-60350iTJH252,VJA252..LHD202402

88515FBOLT(FOR COOLER EXPANSION VALVE)

main88899-44050iTJH252,VJA252202402

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-60440iVJA252..ARL202402-202410

88539EHOSE, COOLER UNIT DRAIN, NO.3

main88539-30A00iVJA252..ARL202402-202410

88539JHOSE, DRAIN COOLER

main88539-60450iTJH252,VJA252202402

88539KHOSE, DRAIN COOLER

main88539-60460iTJH252,VJA252202402

88548BCASE, AIR FILTER

main88899-50140iTJH252,VJA252202402

88625THERMISTOR, COOLER, NO.1

main88620-30290iTJH252,VJA252..LHD202402

main88620-50020iVJA252..ARL202402

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-60030iTJH252,VJA252..ARL,CHI,GEN202402

main886H0-60040iVJA252..RUS202402

"OVERTRAIL" PACKAGE&REAR AIR CONDITIONER-WITHOUT

88710BTUBE ASSY, AIR CONDITIONER

main88710-60N90iTJH252,VJA252202402

88710WRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iTJH252,VJA252202402

ID=6.7,OD=10.3

88710ZRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14121iTJH252,VJA252202402

ID=13.4,OD=18.2

88891SCOVER, COOLER, NO.1

main88891-11010iTJH252,VJA252202402

88892NCOVER, COOLER, NO.2

main88892-11010iTJH252,VJA252202402

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iTJH252,VJA252202402

88897LGROMMET (FOR DRAIN HOSE)

main90480-26029iTJH252,VJA252202402

88897MGROMMET (FOR HEATER PIPE)

main87128-60120iTJH252,VJA252202402

88898DGROMMET

main88899-11020iTJH252,VJA252202402

88899NPLATE, COVER

main88899-50150iTJH252,VJA252202402

8889910110COVER, EVAPORATOR

main88899-10110

9009900318

main90099-00318

9009900968

main90099-00968

9011906951

main90119-06951

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

9046710216

main90467-10216

43 parts on this diagram · 8 diagrams in section
