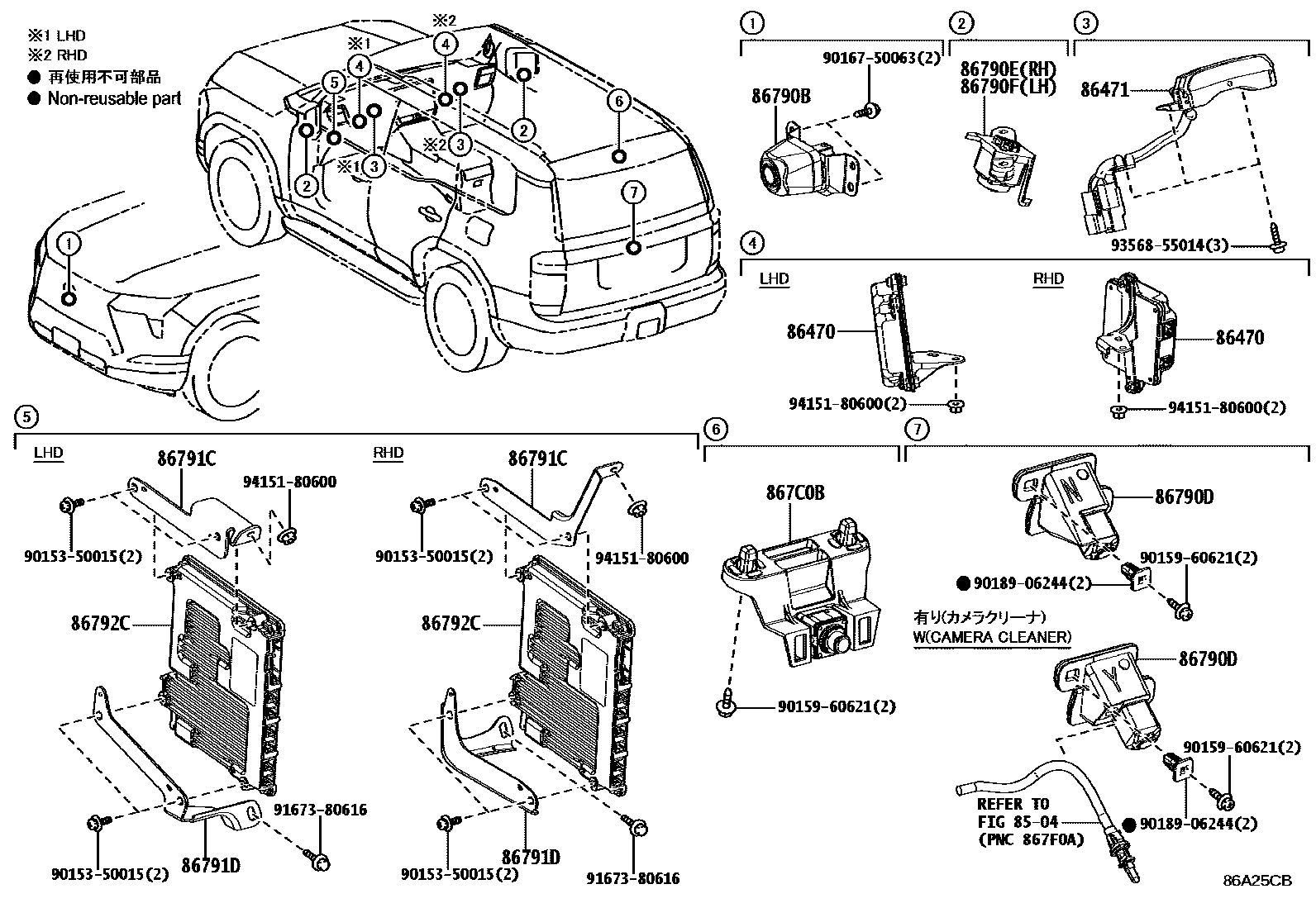

CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
86471CAMERA, DRIVER MONITOR
main86471-48010
86790BCAMERA ASSY, TELEVISION, FR
LUXURY PACKAGE
86790DCAMERA ASSY, TELEVISION, RR
PREMIUM+ PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
86790ECAMERA ASSY, TELEVISION, SIDE RH
"OVERTRAIL+" PACKAGE
86790FCAMERA ASSY, TELEVISION, SIDE LH
"OVERTRAIL+" PACKAGE
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
86792CCOMPUTER, PARKING ASSIST
PREMIUM+ PACKAGE
"OVERTRAIL+" PACKAGE&AUDIO-10SPEAKER 14INCH
"OVERTRAIL" PACKAGE
"OVERTRAIL" PACKAGE
"OVERTRAIL+" PACKAGE&AUDIO-10SPEAKER 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
"OVERTRAIL" PACKAGE
867C0BCAMERA ASSY, INNER MIRROR, RR
BRUNEI SPEC&LUXURY+ PACKAGE
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
9015350015
main90153-50015
9015960621
main90159-60621
9016750063
main90167-50063
9018906244
main90189-06244
9167380616
main91673-80616
9356855014
main93568-55014
9415180600
main94151-80600
18 parts on this diagram · 1 diagram in section
