HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
ARGENTINA SPEC
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
ARGENTINA SPEC
85271HOSE, HEADLAMP CLEANER, NO.1
L=280
85271AHOSE, HEADLAMP CLEANER, NO.2
L=360,ARGENTINA SPEC
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1360,PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC
85271CHOSE, HEADLAMP CLEANER, NO.4
L=140
85272ACLAMP, HEADLAMP CLEANER, NO.1
ARGENTINA SPEC
85272BCLAMP, HEADLAMP CLEANER, NO.2
ARGENTINA SPEC
85272CCLAMP, HEADLAMP CLEANER, NO.3
ARGENTINA SPEC
85272DCLAMP, HEADLAMP CLEANER, NO.4
ARGENTINA SPEC
85279AJOINT, HEADLAMP CLEANER HOSE
ARGENTINA SPEC
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
ARGENTINA SPEC
85330BBUSH, HEADLAMP CLEANER WASHER JAR
ARGENTINA SPEC
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
ARGENTINA SPEC
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
ARGENTINA SPEC
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
ARGENTINA SPEC
85353COVER, HEADLAMP WASHER, RH
LUXURY+ PACKAGE,SONIC QUARTZ,085
PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC,MERCURY GRAY MC.,1H9
LUXURY+ PACKAGE,SONIC TITANIUM,1J7 ,M06
"OVERTRAIL" PACKAGE,TITANIUM CARBIDE GRAY,1L8 ,M07
LUXURY+ PACKAGE,GRAPHITE BLACK GF.,223
ARGENTINA SPEC,MOON DESERT,M08
PERU SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC,TERRANE KHAKI M.M.,6X4 ,M09
BOLIVIA SPEC&COLD AREA SPEC,DEEP BLUE MC.,8X5
85354COVER, HEADLAMP WASHER, LH
LUXURY+ PACKAGE,SONIC QUARTZ,085
PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC,MERCURY GRAY MC.,1H9
LUXURY+ PACKAGE,SONIC TITANIUM,1J7 ,M06
"OVERTRAIL" PACKAGE,TITANIUM CARBIDE GRAY,1L8 ,M07
LUXURY+ PACKAGE,GRAPHITE BLACK GF.,223
ARGENTINA SPEC,MOON DESERT,M08
PERU SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC,TERRANE KHAKI M.M.,6X4 ,M09
BOLIVIA SPEC&COLD AREA SPEC,DEEP BLUE MC.,8X5
85361CBRACKET, WASHER
ARGENTINA SPEC
85362BRACKET, WASHER, NO.2
ARGENTINA SPEC
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=200,"OVERTRAIL" PACKAGE
827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C280
9007591002
main90075-91002
9016750063
main90167-50063

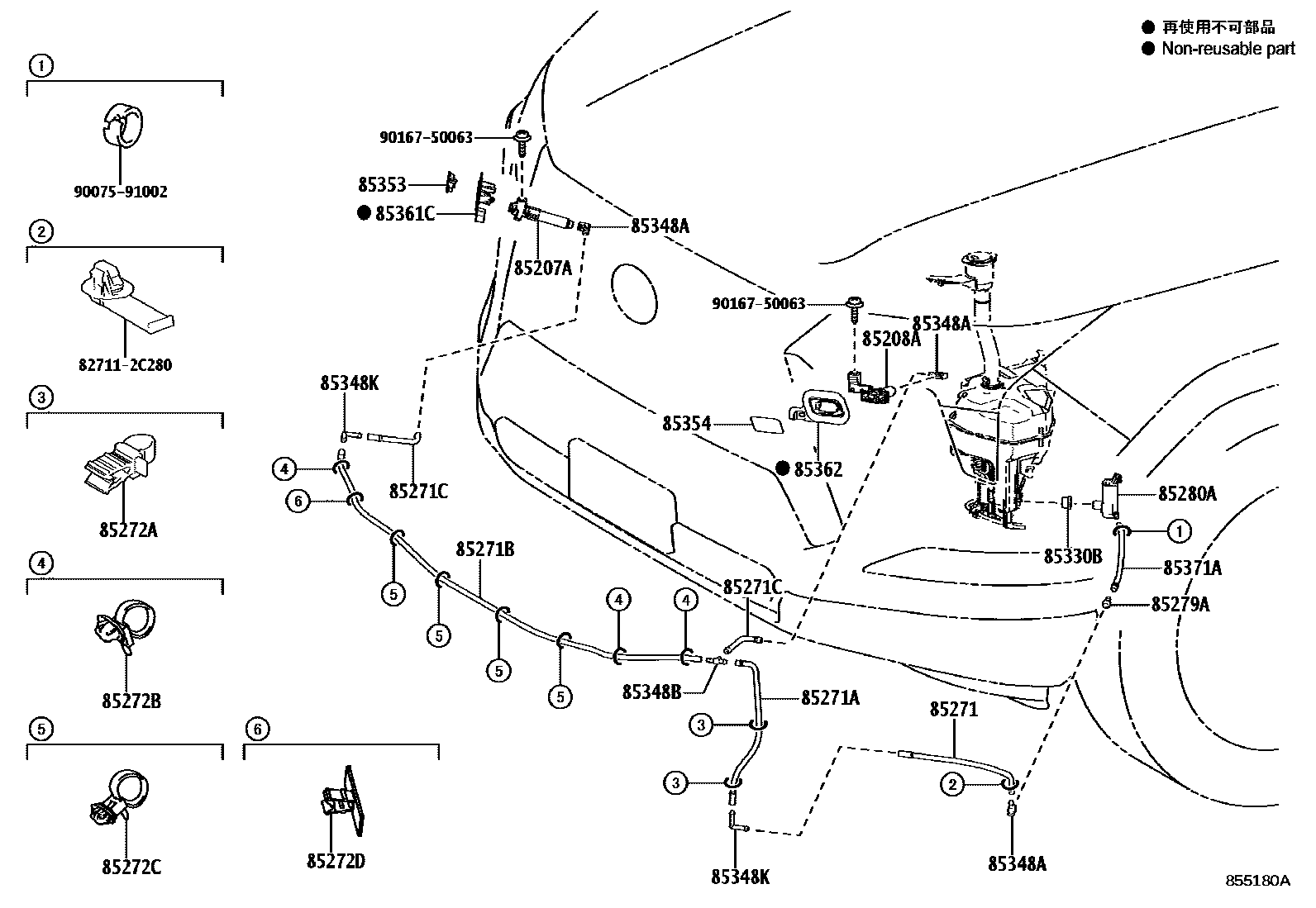

24 parts on this diagram · 1 diagram in section
