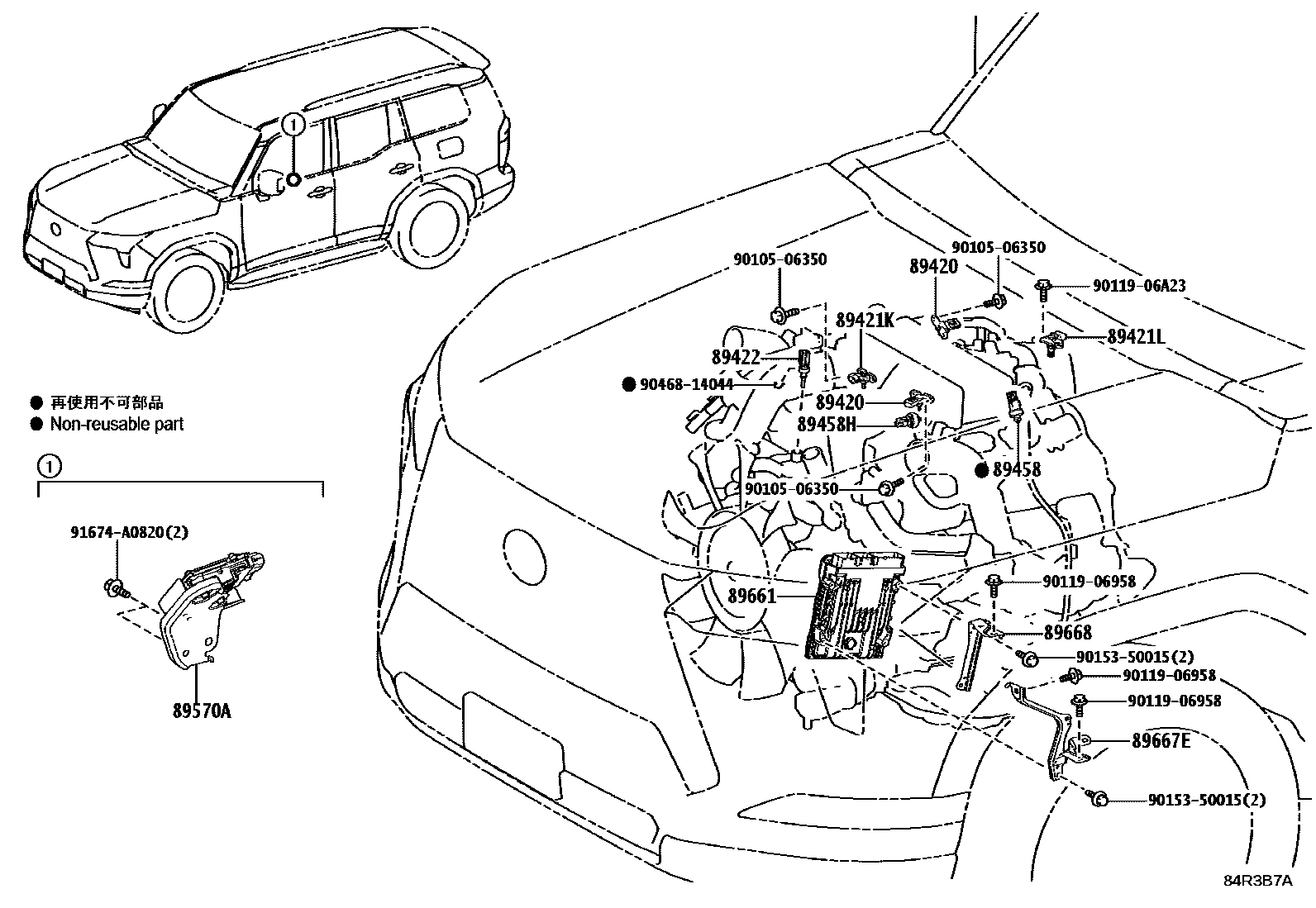

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89420SENSOR ASSY, VACUUM

main89421-33010iVJA252202402

main89421-60050iTJH252202403

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iTJH252202403

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78020iVJA252202402

main89421-78040iTJH252202403

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78010iVJA252202402

main89421-78030iTJH252202403

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTJH252202403

main89422-33040iVJA252202402

89458SENSOR, FUEL PRESSURE

main89458-60030iVJA252202402

main89458-78030iTJH252202403

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iTJH252,VJA252202402

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60210iTJH252,VJA252202402

89661COMPUTER, ENGINE CONTROL

main89661-6A420iTJH252202403

DENSO,*614

main89666-60X80iVJA252202402

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-60310iTJH252202403

main89667-60330iVJA252202402

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60330iTJH252202403

main89668-60350iVJA252202402

9010506350

main90105-06350

9011906958

main90119-06958

9011906A23

main90119-06A23

9015350015

main90153-50015

9046814044

main90468-14044

91674A0820

main91674-A0820

17 parts on this diagram · 2 diagrams in section
