WIRING & CLAMP

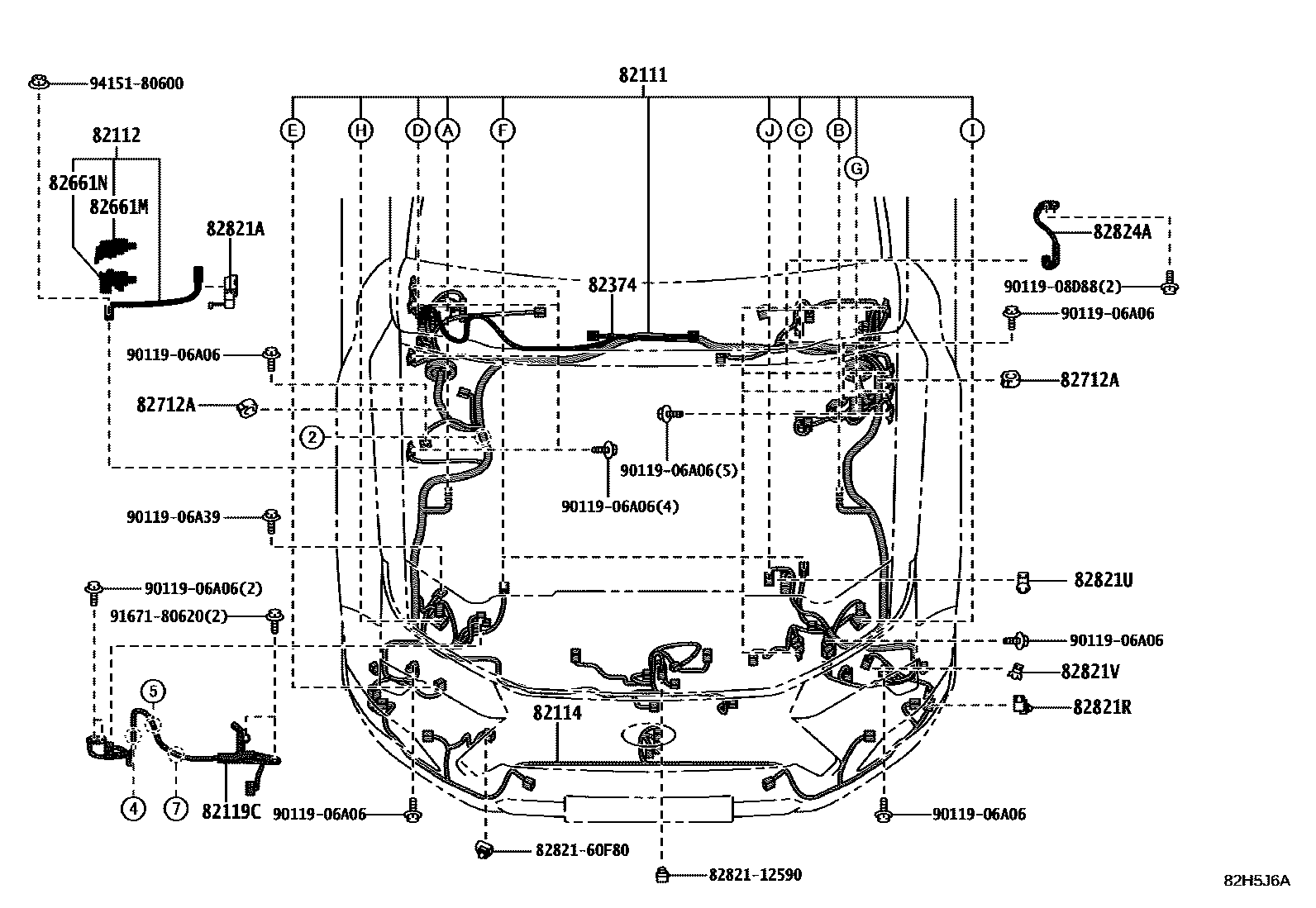

82111WIRE, ENGINE ROOM MAIN
MEXICO SPEC&WITHOUT(COLD AREA SPEC)&LANE KEEPING SYSTEM-WITH
82112WIRE, ENGINE ROOM, NO.2
82114WIRE, ENGINE ROOM, NO.4
KAZAKHSTAN SPEC
GEORGIA SPEC
AZERBAIJAN SPEC
KYRGYZ SPEC
MOLDOVA SPEC
BELARUS SPEC
ARMENIA SPEC
UKRAINE SPEC
LUXURY+ PACKAGE
KAZAKHSTAN SPEC&PREMIUM+ PACKAGE
GEORGIA SPEC&PREMIUM+ PACKAGE
AZERBAIJAN SPEC&PREMIUM+ PACKAGE
"OVERTRAIL" PACKAGE
LUXURY PACKAGE
PREMIUM+ PACKAGE
KYRGYZ SPEC&PREMIUM+ PACKAGE
MOLDOVA SPEC&PREMIUM+ PACKAGE
BELARUS SPEC&PREMIUM+ PACKAGE
ARMENIA SPEC&PREMIUM+ PACKAGE
UKRAINE SPEC&PREMIUM+ PACKAGE
82119CWIRE, ENGINE ROOM, NO.5
82374WIRE, WASHER
82661MCOVER, RELAY BLOCK, NO.3
82661NCOVER, RELAY BLOCK, NO.4
82712ASUPPORT, WIRING HARNESS
82821ACOVER, CONNECTOR
82821RCOVER, CONNECTOR
82821UCOVER, CONNECTOR
82821VCOVER, CONNECTOR
82824ACONNECTOR, WIRING HARNESS
8282112590RETAINER, HEADLAMP HARNESS
main82821-12590
8282160F80RETAINER, HEADLAMP HARNESS
9011906A06
9011906A39
9011908D88
9167180620
9415180600
20 parts on this diagram · 23 diagrams in section
