HEADLAMP
53395LSEAL, HEADLAMP, RH
53396JSEAL, HEADLAMP, LH
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
"OVERTRAIL+" PACKAGE
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
"OVERTRAIL+" PACKAGE
81101HOUSING SUB-ASSY, HEADLAMP, RH
"OVERTRAIL+" PACKAGE
81102HOUSING SUB-ASSY, HEADLAMP, LH
"OVERTRAIL+" PACKAGE
8110ALENS SUB-ASSY, HEADLAMP, RH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
8110BLENS SUB-ASSY, HEADLAMP, LH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
81110HEADLAMP ASSY, RH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
81116EBRACKET, HEADLAMP, RH NO.2
81117BGASKET
"OVERTRAIL+" PACKAGE
81118ABRACKET, HEADLAMP, RH
81118FBRACKET, HEADLAMP, RH NO.3
"OVERTRAIL+" PACKAGE
81118GBRACKET, HEADLAMP, LH NO.3
"OVERTRAIL+" PACKAGE
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
81137BFAN, HEADLAMP, RH
"OVERTRAIL+" PACKAGE
81138SPRING, HEADLAMP
81140UNIT ASSY, HEADLAMP LED, RH
"OVERTRAIL+" PACKAGE
81150HEADLAMP ASSY, LH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
81156BBRACKET, HEADLAMP, LH NO.2
81158BRACKET, HEADLAMP, LH
81160AUNIT ASSY, HEADLAMP LED, LH
"OVERTRAIL+" PACKAGE
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81175UNIT ASSY, HEADLAMP, LH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
81177AFAN, HEADLAMP, LH
"OVERTRAIL+" PACKAGE
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
9007502051
main90075-02051
9007502056
main90075-02056
9007502064
main90075-02064
9007502069
main90075-02069
9007502079
main90075-02079
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238

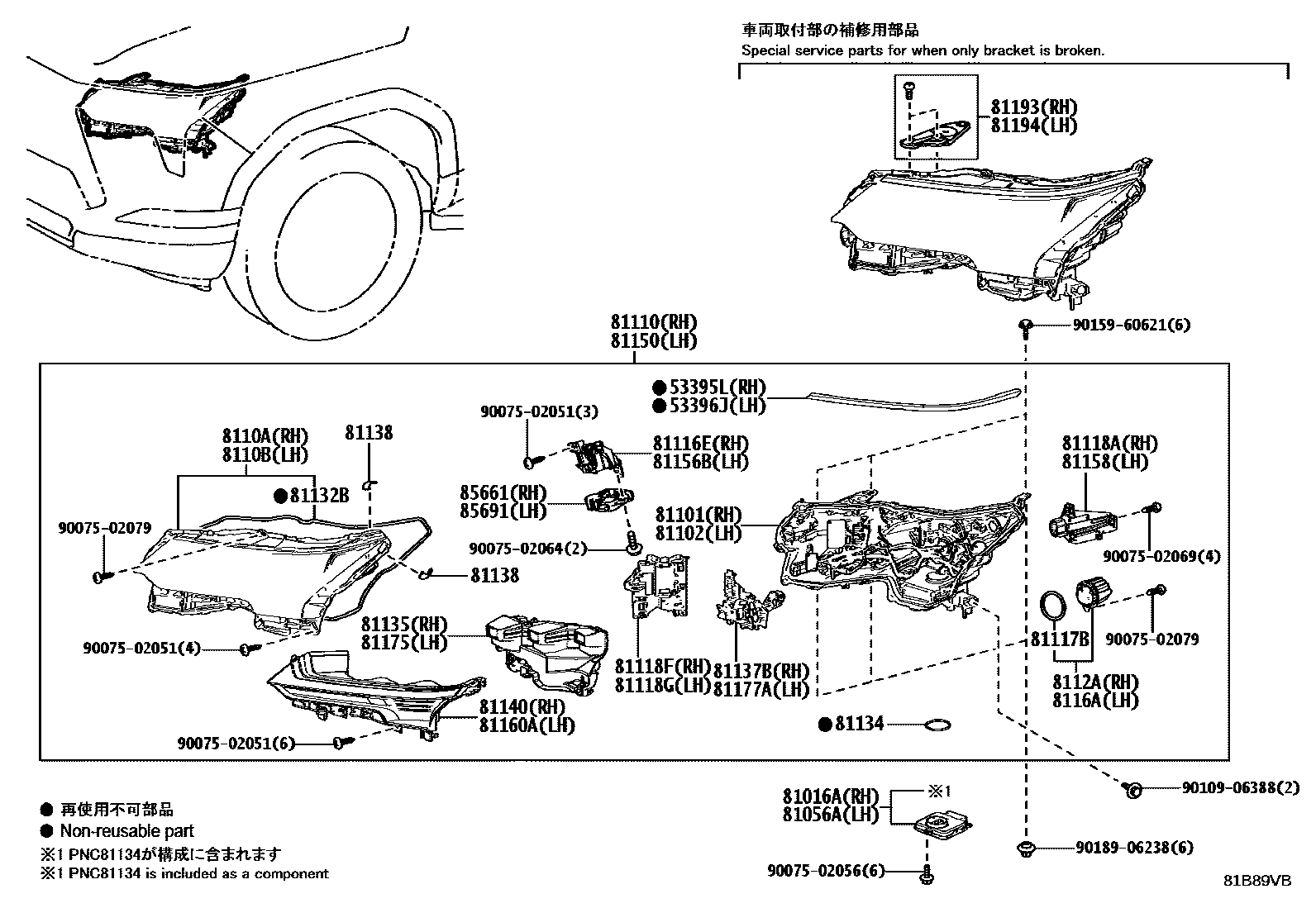

40 parts on this diagram · 2 diagrams in section
