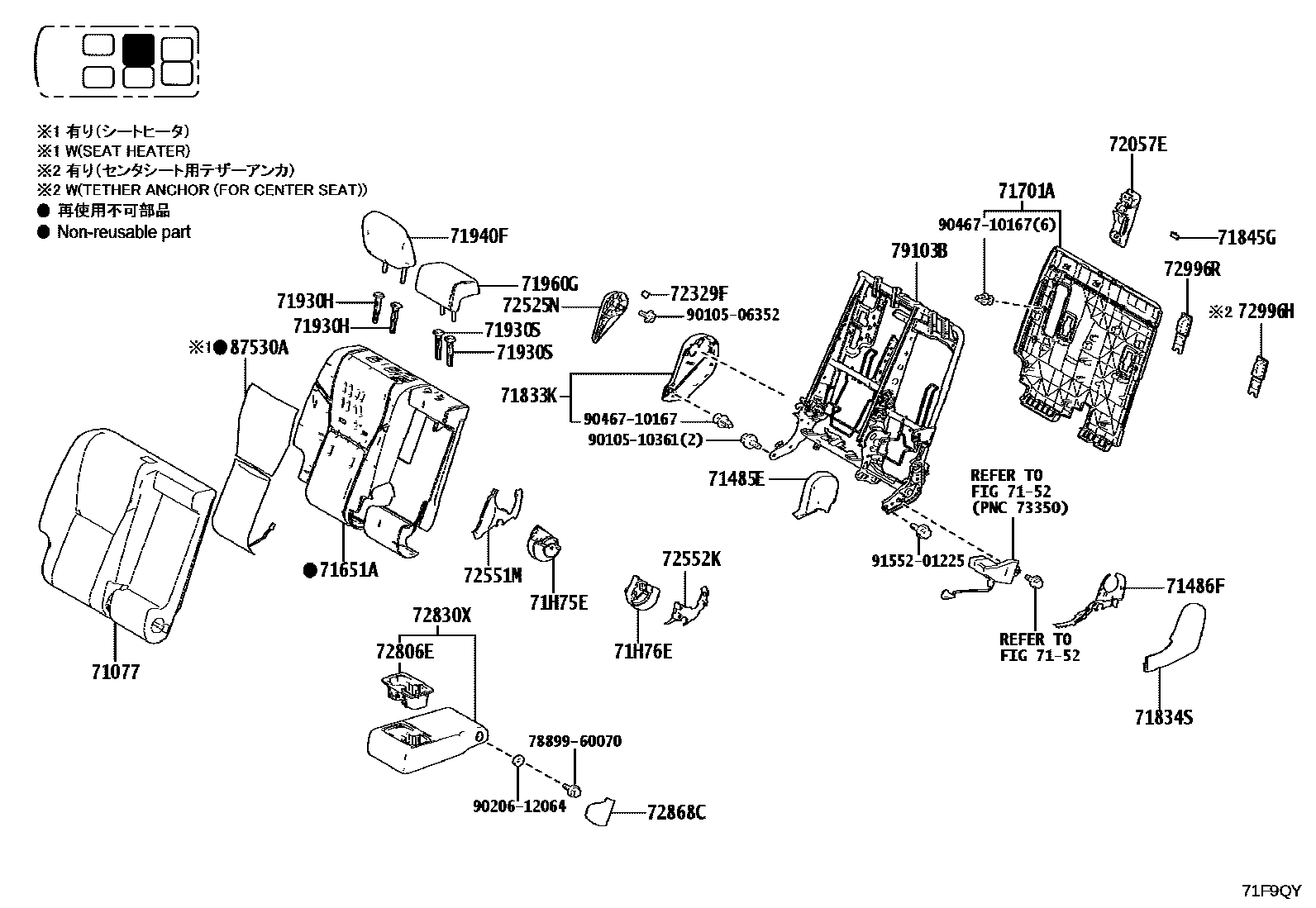

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT(RH:60) SEAT BA0002 1REAR NO.1 SEAT(RH:40) SEAT BA0003 1REAR NO.1 SEAT(RH:60) SEAT CU0004 1REAR NO.1 SEAT(RH:40) SEAT CU0005 1REAR NO.1 SEAT(LH:40) SEAT BA0006 1REAR NO.1 SEAT(LH:40) SEAT CU0007 1REAR NO.1 SEAT(RH:60 LH:40) 0008 1REAR NO.1 SEAT(RH:40 LH:40) 0009 1REAR NO.2 SEAT(RH), SEAT BACK0010 1REAR NO.2 SEAT(RH), SEAT BACK0011 1REAR NO.2 SEAT(RH), SEAT CUSH0012 1REAR NO.2 SEAT(LH), SEAT BACK0013 1REAR NO.2 SEAT(LH), SEAT BACK0014 1REAR NO.2 SEAT(LH), SEAT CUSH0015 1REAR NO.2 SEAT

71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH

main71077-60Y80-B3iVJA252..LHD202402-202411

DK.GRAY,TRIM1#

main71077-60Y80-C3iVJA252..LHD202402-202411

BLACK,TRIM2#

main71077-60Y80-E3iVJA252..LHD202402-202411

SADDLE TAN,TRIM4#

main71077-60Y81-B3iVJA252..LHD202411

DK.GRAY,TRIM1#

main71077-60Y81-C3iVJA252..LHD202411

BLACK,TRIM2#

main71077-60Y81-E3iVJA252..LHD202411

SADDLE TAN,TRIM4#

main71077-60Z00-B3iVJA252..GEN202402-202411

PREMIUM+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z00-B3iVJA252..ARL202402-202411

BRUNEI SPEC&,DK.GRAY,TRIM1#

main71077-60Z00-B3iVJA252..ARL202402-202411

MALAYSIA SPEC&,DK.GRAY,TRIM1#

main71077-60Z00-B3iVJA252..ARL202402-202411

ARGENTINA SPEC&PREMIUM+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z00-B3iVJA252..ARL202410-202411

SOUTH AFRICA SPEC,DK.GRAY,TRIM1#

main71077-60Z00-C3iVJA252..GEN202402-202411

ARGENTINA SPEC&PREMIUM+ PACKAGE,BLACK,TRIM2#

main71077-60Z00-C3iVJA252..GEN202402-202411

PREMIUM+ PACKAGE,BLACK,TRIM2#

main71077-60Z00-C3iVJA252..LHD202402-202411

BRUNEI SPEC&,BLACK,TRIM2#

main71077-60Z00-C3iVJA252..LHD202402-202411

MALAYSIA SPEC&,BLACK,TRIM2#

main71077-60Z00-C3iVJA252..ARL202410-202411

SOUTH AFRICA SPEC,BLACK,TRIM2#

main71077-60Z00-E3iVJA252..ARL202402-202411

MALAYSIA SPEC&,SADDLE TAN,TRIM4#

main71077-60Z00-E3iVJA252..ARL202402-202411

BRUNEI SPEC&,SADDLE TAN,TRIM4#

main71077-60Z00-E3iVJA252..ARL202402-202411

ARGENTINA SPEC&PREMIUM+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z00-E3iVJA252..ARL202402-202411

PREMIUM+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z00-E3iVJA252..ARL202410-202411

SOUTH AFRICA SPEC,SADDLE TAN,TRIM4#

main71077-60Z01-B3iVJA252..LHD202411

MALAYSIA SPEC&,DK.GRAY,TRIM1#

main71077-60Z01-B3iVJA252..ARL202411

BRUNEI SPEC&,DK.GRAY,TRIM1#

main71077-60Z01-B3iVJA252..ARL202411

ARGENTINA SPEC&PREMIUM+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z01-B3iVJA252..ARL202411

PREMIUM+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z01-B3iVJA252..ARL202411

SOUTH AFRICA SPEC,DK.GRAY,TRIM1#

main71077-60Z01-C3iVJA252..GEN202411

PREMIUM+ PACKAGE,BLACK,TRIM2#

main71077-60Z01-C3iVJA252..GEN202411

ARGENTINA SPEC&PREMIUM+ PACKAGE,BLACK,TRIM2#

main71077-60Z01-C3iVJA252..GEN202411

MALAYSIA SPEC&,BLACK,TRIM2#

main71077-60Z01-C3iVJA252..GEN202411

SOUTH AFRICA SPEC,BLACK,TRIM2#

main71077-60Z01-C3iVJA252..ARL202411

BRUNEI SPEC&,BLACK,TRIM2#

main71077-60Z01-E3iVJA252..ARL202411

MALAYSIA SPEC&,SADDLE TAN,TRIM4#

main71077-60Z01-E3iVJA252..ARL202411

SOUTH AFRICA SPEC,SADDLE TAN,TRIM4#

main71077-60Z01-E3iVJA252..ARL202411

PREMIUM+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z01-E3iVJA252..ARL202411

ARGENTINA SPEC&PREMIUM+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z01-E3iVJA252..ARL202411

BRUNEI SPEC&,SADDLE TAN,TRIM4#

main71077-60Z10-B3iVJA252..ARL202402-202411

DK.GRAY,TRIM1#

main71077-60Z10-C3iVJA252..ARL202402-202411

BLACK,TRIM2#

main71077-60Z10-E3iVJA252..ARL202402-202411

SADDLE TAN,TRIM4#

main71077-60Z11-B3iVJA252..ARL202411

DK.GRAY,TRIM1#

main71077-60Z11-C3iVJA252..ARL202411

BLACK,TRIM2#

main71077-60Z11-E3iVJA252..ARL202411

SADDLE TAN,TRIM4#

main71077-60Z20-B3iVJA252..GEN202402-202411

BRUNEI SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z20-B3iVJA252..ARL202402-202411

ARGENTINA SPEC&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z20-B3iVJA252..ARL202402-202411

ARGENTINA SPEC&LUXURY PACKAGE,DK.GRAY,TRIM1#

main71077-60Z20-B3iVJA252..ARL202402-202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z20-B3iVJA252..ARL202410-202411

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z20-B3iVJA252..LHD202402-202411

LUXURY PACKAGE,DK.GRAY,TRIM1#

main71077-60Z20-B3iVJA252..LHD202402-202411

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z20-C3iTJH252,VJA252..LHD202402-202411

BRUNEI SPEC&&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z20-C3iVJA252..ARL202402-202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z20-C3iVJA252..ARL202402-202411

ARGENTINA SPEC&LUXURY PACKAGE,BLACK,TRIM2#

main71077-60Z20-C3iVJA252..ARL202402-202411

ARGENTINA SPEC&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z20-C3iVJA252..ARL202402-202411

LUXURY PACKAGE,BLACK,TRIM2#

main71077-60Z20-C3iVJA252..ARL202402-202411

LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z20-C3iVJA252..ARL202410-202411

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z20-E3iVJA252..ARL202410-202411

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z20-E3iTJH252,VJA252..LHD202402-202411

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z20-E3iTJH252,VJA252..LHD202402-202411

LUXURY PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z20-E3iTJH252,VJA252..LHD202402-202411

ARGENTINA SPEC&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z20-E3iTJH252,VJA252..LHD202402-202411

ARGENTINA SPEC&LUXURY PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z20-E3iTJH252,VJA252..LHD202402-202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z20-E3iTJH252,VJA252..LHD202402-202411

BRUNEI SPEC&&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z21-B3iVJA252..GEN202411

BRUNEI SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z21-B3iVJA252..ARL202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z21-B3iVJA252..ARL202411

ARGENTINA SPEC&LUXURY PACKAGE,DK.GRAY,TRIM1#

main71077-60Z21-B3iVJA252..ARL202411

ARGENTINA SPEC&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z21-B3iVJA252..ARL202411

LUXURY PACKAGE,DK.GRAY,TRIM1#

main71077-60Z21-B3iVJA252..ARL202411

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z21-B3iVJA252..ARL202411

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z21-C3iVJA252..ARL202411

BRUNEI SPEC&&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z21-C3iVJA252..ARL202411

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z21-C3iVJA252..ARL202411

LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z21-C3iVJA252..ARL202411

LUXURY PACKAGE,BLACK,TRIM2#

main71077-60Z21-C3iVJA252..ARL202411

ARGENTINA SPEC&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z21-C3iVJA252..ARL202411

ARGENTINA SPEC&LUXURY PACKAGE,BLACK,TRIM2#

main71077-60Z21-C3iVJA252..ARL202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z21-E3iTJH252,VJA252..LHD202411

ARGENTINA SPEC&LUXURY PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z21-E3iVJA252..ARL202411

BRUNEI SPEC&&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z21-E3iVJA252..ARL202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z21-E3iVJA252..ARL202411

ARGENTINA SPEC&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z21-E3iVJA252..ARL202411

LUXURY PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z21-E3iVJA252..ARL202411

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z21-E3iVJA252..ARL202411

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z30-B3iVJA252..ARL202402-202411

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z30-C3iVJA252..ARL202402-202411

LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z30-E3iVJA252..ARL202402-202411

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z31-B3iVJA252..ARL202411

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z31-C3iVJA252..ARL202411

LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z31-E3iVJA252..ARL202411

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z40-B4iVJA252..ARL202402-202411

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z40-B4iVJA252..ARL202402-202411

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z40-B4iVJA252..ARL202402-202411

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z40-B4iVJA252..ARL202402-202411

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z40-B4iVJA252..ARL202410-202411

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z40-C4iVJA252..ARL202402-202411

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z40-C4iVJA252..ARL202402-202411

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z40-C4iVJA252..ARL202402-202411

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z40-C4iVJA252..ARL202402-202411

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z40-C4iVJA252..ARL202410-202411

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z41-B4iVJA252..GEN202411

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z41-B4iVJA252..ARL202411

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z41-B4iVJA252..ARL202411

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z41-B4iVJA252..ARL202411

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z41-B4iVJA252..ARL202411

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z41-C4iVJA252..ARL202411

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z41-C4iVJA252..ARL202411

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z41-C4iVJA252..ARL202411

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z41-C4iVJA252..ARL202411

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z41-C4iVJA252..ARL202411

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z50-B4iVJA252..ARL202402-202411

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z50-C4iVJA252..ARL202402-202411

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z51-B4iVJA252..ARL202411

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z51-C4iVJA252..ARL202411

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z60-B4iTJH252,VJA252..CHI,RUS202402-202411

"OVERTRAIL+" PACKAGE,CHATEAU,TRIM1#

main71077-60Z60-C4iTJH252,VJA252..CHI,RUS202402-202411

"OVERTRAIL+" PACKAGE,BLACK,TRIM2#

main71077-60Z61-B4iTJH252,VJA252..CHI,RUS202411

"OVERTRAIL+" PACKAGE,CHATEAU,TRIM1#

main71077-60Z61-C4iTJH252,VJA252..CHI,RUS202411

"OVERTRAIL+" PACKAGE,BLACK,TRIM2#

main71077-60Z80-B3iTJH252202403

DK.GRAY,TRIM1#

main71077-60Z80-C3iTJH252202403

BLACK,TRIM2#

main71077-60Z80-E3iTJH252202403

SADDLE TAN,TRIM4#

71485ECOVER, REAR SEAT HINGE

main71485-60130-C0iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#,4#

main71485-60130-C0iVJA252202402

BLACK,TRIM1#,2#,4#

main71485-60130-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

71486FCOVER, REAR SEAT HINGE, LH

main71486-60110-C0iVJA252202402

BLACK,TRIM1#,2#,4#

main71486-60110-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main71486-60110-C0iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#,4#

7152

71651APAD, REAR NO.1 SEATBACK, RH

main71507-60350iVJA252..ARL202402

LUXURY+ PACKAGE

main71507-60350iVJA252..ARL202402

BRUNEI SPEC&&LUXURY+ PACKAGE

main71507-60350iVJA252..ARL202402

MALAYSIA SPEC&&LUXURY+ PACKAGE

main71507-60350iVJA252..ARL202402

ARGENTINA SPEC&LUXURY PACKAGE

main71507-60350iVJA252..ARL202402

ARGENTINA SPEC&LUXURY+ PACKAGE

main71507-60350iVJA252..ARL202402

LUXURY PACKAGE

main71507-60350iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE

main71651-60750iTJH252202403

"OVERTRAIL+" PACKAGE

main71651-60750iVJA252202402

main71651-60760iTJH252202403

71701ABOARD SUB-ASSY, REAR SEATBACK, RH

main71701-60350iVJA252202402

main71701-60350iTJH252202403

LUXURY+ PACKAGE

main71701-60350iTJH252202403

"OVERTRAIL+" PACKAGE

main71701-60360iTJH252202403

71833KCOVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

main71833-60360-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

71834SCOVER, REAR SEAT RECLINING, NO.1 LH

main71834-60360-C0iVJA252202402

BLACK,TRIM1#,2#,4#

main71834-60360-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main71834-60360-C0iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#,4#

main71834-60370-C0iTJH252202403

BLACK,TRIM1#,2#,4#

71845GCAP, REAR SEAT COVER, RH

main71845-60040-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH

main71930-28050-C0iTJH252,VJA252202402

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-28060-C0iTJH252,VJA252202402

W/O(LOCK),BLACK,TRIM1#,2#,4#

71930SSUPPORT ASSY, REAR NO.1 SEAT HEADREST, CENTER

main71930-28050-C0iTJH252202403

W(LOCK),LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main71930-28050-C0iVJA252202402

W(LOCK),BLACK,TRIM1#,2#,4#

main71930-28050-C0iTJH252202403

W(LOCK),"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#,4#

71940FHEADREST ASSY, NO.1 SEAT, RH

main71940-60D40-B3iVJA252..RUS202402

MALAYSIA SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

ARGENTINA SPEC&LUXURY PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

ARGENTINA SPEC&LUXURY+ PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

LUXURY PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

LUXURY+ PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

"OVERTRAIL" PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..RUS202402

"OVERTRAIL+" PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..ARL202402

BRUNEI SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..ARL202410

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B3iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B4iVJA252..ARL202402

LUXURY+ PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

"OVERTRAIL" PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

"OVERTRAIL+" PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

BRUNEI SPEC&&LUXURY+ PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

MALAYSIA SPEC&&LUXURY+ PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

ARGENTINA SPEC&LUXURY PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

ARGENTINA SPEC&LUXURY+ PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202402

LUXURY PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202410

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-B4iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-C3iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

BRUNEI SPEC&&LUXURY+ PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

MALAYSIA SPEC&&LUXURY+ PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

ARGENTINA SPEC&LUXURY PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

ARGENTINA SPEC&LUXURY+ PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

LUXURY PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

LUXURY+ PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

"OVERTRAIL" PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202402

"OVERTRAIL+" PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202410

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C3iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C4iVJA252..GEN202402

LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..GEN202402

"OVERTRAIL" PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..GEN202402

"OVERTRAIL+" PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

BRUNEI SPEC&&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

MALAYSIA SPEC&&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

ARGENTINA SPEC&LUXURY PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

ARGENTINA SPEC&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..LHD202402

LUXURY PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-C4iVJA252..ARL202410

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-E1iVJA252..ARL,GEN202402

MALAYSIA SPEC&&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

BRUNEI SPEC&&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

ARGENTINA SPEC&LUXURY PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

ARGENTINA SPEC&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

ARGENTINA SPEC&"OVERTRAIL" PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

LUXURY PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

"OVERTRAIL" PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202402

"OVERTRAIL+" PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202410

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE,SADDLE TAN,TRIM4#

main71940-60D40-E1iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71940-60D50-B2iVJA252202402

DK.GRAY,TRIM1#

main71940-60D50-C2iVJA252202402

BLACK,TRIM2#

main71940-60D50-E1iVJA252202402

SADDLE TAN,TRIM4#

main71940-60D60-B0iTJH252202403

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71940-60D60-B2iTJH252202403

"OVERTRAIL+" PACKAGE,CHATEAU,TRIM1#

main71940-60D60-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM2#

main71940-60D60-C2iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK,TRIM2#

main71940-60D60-E0iTJH252202403

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71940-60D70-B0iTJH252202403

DK.GRAY,TRIM1#

main71940-60D70-C0iTJH252202403

BLACK,TRIM2#

main71940-60D70-E0iTJH252202403

SADDLE TAN,TRIM4#

71960GHEADREST ASSY, REAR NO.1 SEAT, CENTER

main71960-60A30-C0iVJA252202402-202411

BLACK,TRIM1#,2#,4#

main71960-60A31-C1iVJA252202411

BLACK,TRIM1#,2#,4#

main71960-60A50-C0iTJH252202403-202411

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#,4#

main71960-60A60-C0iTJH252202403-202411

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main71960-60B40-C0iTJH252202411

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main71960-60B40-C0iTJH252202411

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#

71H75ECOVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

main71875-60310iTJH252,VJA252202402

71H76ECOVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)

main71876-60380iVJA252202402

main71876-60380iTJH252202403

LUXURY+ PACKAGE

main71876-60380iTJH252202403

"OVERTRAIL+" PACKAGE

main71876-60390iTJH252202403

72057ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

main72057-60230-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

72329FCOVER, REAR SEAT ADJUSTER BOLT

main72329-60140-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

72525NHANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

main72525-60160-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

72551MCOVER, RECLINING HINGE, RH NO.1(FOR RH SEAT)

main72551-60190-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

72552KCOVER, RECLINING HINGE, LH NO.1(FOR RH SEAT)

main72552-60170-C0iVJA252202402

BLACK,TRIM1#,2#,4#

main72552-60170-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main72552-60170-C0iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#,4#

main72552-60180-C0iTJH252202403

BLACK,TRIM1#,2#,4#

72806EHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-78010-C0iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#

main72806-78010-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main72806-78010-C0iVJA252202402

BLACK,TRIM1#,2#,4#

72830XARMREST ASSY, REAR SEAT, CENTER

main72830-60G30-C1iVJA252202402

BLACK/OLIVE,TRIM12,13,20,21

main72830-60G30-C1iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK/OLIVE,TRIM1#,2#

main72830-60G30-C2iVJA252202402

BLACK/LT.GRAY,TRIM10,11,20,21

main72830-60G30-C3iVJA252202402

BRACK/BROWN,TRIM4#

main72830-60G40-C1iVJA252..GEN202402

MALAYSIA SPEC&&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C1iVJA252..GEN202402

ARGENTINA SPEC&LUXURY PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C1iVJA252..GEN202402

ARGENTINA SPEC&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C1iVJA252..GEN202402

LUXURY PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C1iVJA252..GEN202402

LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C1iVJA252..GEN202402

BRUNEI SPEC&&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C1iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C2iVJA252..ARL202402

ARGENTINA SPEC&LUXURY PACKAGE,BLACK/BROWN,TRIM4#

main72830-60G40-C2iVJA252..ARL202402

BRUNEI SPEC&&LUXURY+ PACKAGE,BLACK/BROWN,TRIM4#

main72830-60G40-C2iVJA252..ARL202402

MALAYSIA SPEC&&LUXURY+ PACKAGE,BLACK/BROWN,TRIM4#

main72830-60G40-C2iVJA252..ARL202402

ARGENTINA SPEC&LUXURY+ PACKAGE,BLACK/BROWN,TRIM4#

main72830-60G40-C2iVJA252..ARL202402

LUXURY PACKAGE,BLACK/BROWN,TRIM4#

main72830-60G40-C2iVJA252..ARL202402

LUXURY+ PACKAGE,BLACK/BROWN,TRIM4#

main72830-60G40-C2iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE,BLACK/BROWN,TRIM4#

72868CCOVER, CENTER ARMREST HINGE, RH

main72868-60030-C0iVJA252202402

BLACK,TRIM1#,2#,4#

main72868-60030-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main72868-60030-C0iTJH252202403

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#,4#

72996HCOVER, REAR SEATBACK

main72996-60290-C0iVJA252..ARL202402

BLACK,TRIM1#,2#,4#

72996RCOVER, REAR NO.1 SEATBACK, RH

main72996-60280-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH

main71017-60890iVJA252..LHD202402

MALAYSIA SPEC&&"OVERTRAIL" PACKAGE

main71017-60890iVJA252..LHD202402

BRUNEI SPEC&

main71017-60890iVJA252..LHD202402

BRUNEI SPEC&&LUXURY+ PACKAGE

main71017-60890iVJA252..LHD202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE

main71017-60890iVJA252..LHD202402

MALAYSIA SPEC&

main71017-60890iVJA252..LHD202402

MALAYSIA SPEC&&LUXURY+ PACKAGE

main71017-60890iTJH252202403

LUXURY+ PACKAGE

main71017-60890iTJH252202403

"OVERTRAIL+" PACKAGE

main71017-60890iVJA252..ARL202410

SOUTH AFRICA SPEC

main71017-60890iVJA252..ARL202410

SOUTH AFRICA SPEC&"OVERTRAIL" PACKAGE

main71017-60890iVJA252..ARL202410

SOUTH AFRICA SPEC&LUXURY+ PACKAGE

main71017-60B70iVJA252..ARL202402

main71017-60B80iTJH252202403

87530HEATER ASSY, REAR NO.1 SEATBACK, LH

main87530-60090iTJH252,VJA252..ARL,CHI202402

ARGENTINA SPEC&PREMIUM+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

ARGENTINA SPEC&LUXURY PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

ARGENTINA SPEC&LUXURY+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

PREMIUM+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

LUXURY PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

LUXURY+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

"OVERTRAIL+" PACKAGE

87530AHEATER ASSY, REAR NO.1 SEATBACK, RH

main87530-60090iTJH252,VJA252..ARL,CHI202402

ARGENTINA SPEC&PREMIUM+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

ARGENTINA SPEC&LUXURY PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

ARGENTINA SPEC&LUXURY+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

PREMIUM+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

LUXURY PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

LUXURY+ PACKAGE

main87530-60090iTJH252,VJA252..ARL,CHI202402

"OVERTRAIL+" PACKAGE

7889960070BOLT, FRONT SEAT

main78899-60070

9010506352

main90105-06352

9010510361

main90105-10361

9020612064

main90206-12064

9046710167

main90467-10167

9155201225

main91552-01225

34 parts on this diagram · 15 diagrams in section
