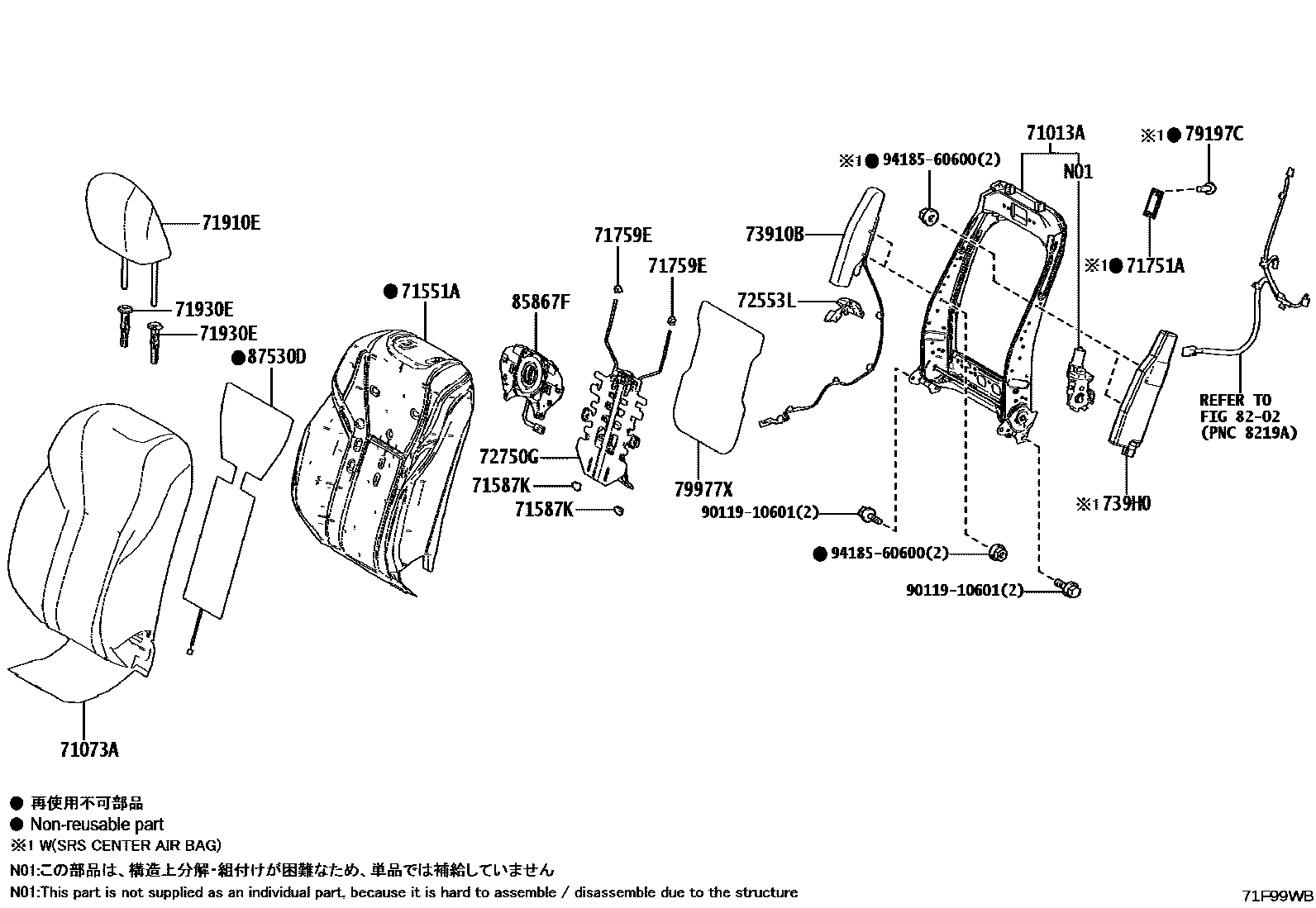

FRONT SEAT & SEAT TRACK

0001 1RH(SEAT BACK) 0002 1RH(SEAT BACK), W(REFRESH SEAT0003 1RH(SEAT CUSHION) 0004 1RH(SEAT CUSHION), W(REFRESH S0005 1LH(SEAT BACK) 0006 1LH(SEAT BACK), W(REFRESH SEAT0007 1LH(SEAT CUSHION) 0008 1LH(SEAT CUSHION), W(REFRESH S0009 1LH(SEAT BACK) 0010 1LH(SEAT BACK), W(REFRESH SEAT0011 1LH(SEAT CUSHION) 0012 1LH(SEAT CUSHION), W(REFRESH S0013 1RH(SEAT BACK) 0014 1RH(SEAT BACK), W(REFRESH SEAT0015 1RH(SEAT CUSHION) 0016 1RH(SEAT CUSHION), W(REFRESH S

71013AFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-60A90supersedes 71013-60A70iTJH252,VJA252..LHD202402-202411

"OVERTRAIL+" PACKAGE

main71013-60B00supersedes 71013-60A80iVJA252..ARL202402-202411

LUXURY+ PACKAGE

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-60V10-B3supersedes 71073-60V00-B2iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71073-60V10-C3supersedes 71073-60V00-C2iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71073-60V30-B3supersedes 71073-60V00-B2iVJA252..ARL202402

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71073-60V30-C3supersedes 71073-60V00-C2iVJA252..ARL202402

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71073-60V40-B3iVJA252..RUS202411

"OVERTRAIL+" PACKAGE&SEAT VIBRATOR-WITH,CHATEAU,TRIM1#

main71073-60V40-C3iVJA252..RUS202411

"OVERTRAIL+" PACKAGE&SEAT VIBRATOR-WITH,BLACK,TRIM2#

main71073-60V60-B2supersedes 71073-60V00-B2iTJH252,VJA252..LHD202402-202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71073-60V60-C2supersedes 71073-60U80-C2iTJH252,VJA252..LHD202411

MALAYSIA SPEC&&LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,BLACK,TRIM2#

main71073-60V60-E2supersedes 71073-60U80-E2iTJH252,VJA252..LHD202402-202411

BRUNEI SPEC&&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71073-60V80-B2supersedes 71073-60V00-B2iVJA252..ARL202402-202411

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71073-60V80-C2supersedes 71073-60V00-C2iVJA252..ARL202411

LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,BLACK,TRIM2#

main71073-60V80-E2supersedes 71073-60V00-E2iVJA252..ARL202402-202411

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

71551APAD, FRONT SEATBACK, RH

main71551-60B70supersedes 71551-60B90iTJH252,VJA252..LHD202402

MALAYSIA SPEC&

main71505-60660iVJA252..ARL202402

"OVERTRAIL" PACKAGE

main71505-60680supersedes 71551-60B90iVJA252..ARL202402

"OVERTRAIL" PACKAGE

71587KPROTECTOR, FRONT SEATBACK EDGE, RH

main71587-47010×2iTJH252,VJA252202402

71751AHANGER, SEAT COVER

main71751-47050iVJA252..ARL202402

71759EHOOK, FRONT SEATBACK, RH

main71759-50040×2iTJH252,VJA252202402

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-60J80-B1iVJA252202402

DK.GRAY,TRIM1#

main71910-60J80-C3iVJA252202402

BLACK,TRIM2#

main71910-60J90-B1iVJA252..ARL202402-202411

MALAYSIA SPEC&&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71910-60J90-B2iVJA252..RUS202411

LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,CHATEAU,TRIM12,13

main71910-60J90-C3iVJA252..RUS202402-202411

"OVERTRAIL+" PACKAGE,BLACK/OLIVE,TRIM20,21

main71910-60J90-C4iVJA252..ARL202411

SOUTH AFRICA SPEC&LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,BLACK/LT.GRAY,TRIM2#

main71910-60J90-E1supersedes 71910-60J80-E1iVJA252..ARL202411

LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,SADDLE TAN,TRIM4#

main71910-60K10-G2supersedes 71910-60K30-C0iTJH252202403

"OVERTRAIL+" PACKAGE,ULTRA SUEDE/BLACK,TRIM2#

main71910-60K10-G3supersedes 71910-60K30-B0iTJH252202403

"OVERTRAIL+" PACKAGE,ULTRA SUEDE/CHATEAU,TRIM1#

main71910-60K20-B0supersedes 71910-60K30-B0iTJH252202403

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71910-60K20-C0supersedes 71910-60K30-C0iTJH252202403

LUXURY+ PACKAGE,BLACK,TRIM2#

main71910-60K20-E0supersedes 71910-60K30-E0iTJH252202403

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71910-60K40-B1iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71910-60K40-C1iVJA252..ARL202402

BRUNEI SPEC&&"OVERTRAIL" PACKAGE,BLACK,TRIM2#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-28050-C0iTJH252,VJA252202402

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-28060-C0iTJH252,VJA252202402

W/O(LOCK),BLACK,TRIM1#,2#,4#

72553LPROTECTOR, RECLINING COVER, RH

main72553-52040-C0iTJH252,VJA252202402

BLACK

72750GADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33150iTJH252,VJA252..ARL,CHI202402

PREMIUM+ PACKAGE

main72750-60140supersedes 72760-30200iVJA252..ARL202411

LUXURY PACKAGE&SEAT VIBRATOR-WITH

73910BAIRBAG ASSY, FRONT SEAT, RH

main73910-60090iTJH252,VJA252202402

739H0AIRBAG ASSY, FRONT SEAT CENTER, RH

main739H0-60031iVJA252..ARL202402

79197CHOOK, SEATBACK COVER

main79197-47010iVJA252..ARL202402

79977XFELT, SEATBACK, RH

main79977-76010iTJH252,VJA252202402

8202

85867FBLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-60080iTJH252,VJA252..ARL,CHI202402

PREMIUM+ PACKAGE

main85867-60050iVJA252..ARL202411

LUXURY PACKAGE&SEAT VIBRATOR-WITH

87530DHEATER ASSY, FRONT SEATBACK, RH

main87530-60050iTJH252,VJA252202402

9011910601

main90119-10601

9418560600

main94185-60600

19 parts on this diagram · 16 diagrams in section
