REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60670supersedes 67003-60680iVJA252..RUS202402

"OVERTRAIL+" PACKAGE&NV PACKAGE HIGH GRADE

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iTJH252,VJA252202402

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60660supersedes 67004-60670iVJA252..RUS202402

"OVERTRAIL+" PACKAGE&NV PACKAGE HIGH GRADE

67113PANEL, REAR DOOR, OUTER RH

main67113-60350supersedes 67113-60320iVJA252..RUS202402

"OVERTRAIL+" PACKAGE&NV PACKAGE HIGH GRADE

67114PANEL, REAR DOOR, OUTER LH

main67114-60350supersedes 67114-60320iVJA252..RUS202402

"OVERTRAIL+" PACKAGE&NV PACKAGE HIGH GRADE

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60120supersedes 67407-60110iVJA252..RUS202402

LUXURY PACKAGE

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60120supersedes 67408-60110iVJA252..RUS202402

LUXURY PACKAGE

67833COVER, REAR DOOR SERVICE HOLE

main67833-47010×2iTJH252,VJA252202412

67837CSEAL, REAR DOOR DUST PROOF

main67837-47060×6iTJH252,VJA252202402

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60160iTJH252,VJA252202402-202412

main67841-60161iTJH252,VJA252202412

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60110iTJH252,VJA252202402-202412

main67842-60111iTJH252,VJA252202412

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-60050iVJA252..LHD202402

LUXURY+ PACKAGE&STEP & STEP COVER-SIDE AUTO WITHOUT(OUT-MODE)

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-60040iVJA252..LHD202402

LUXURY+ PACKAGE&STEP & STEP COVER-SIDE AUTO WITHOUT(OUT-MODE)

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52030×4iTJH252,VJA252202402

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52020×4iTJH252,VJA252202402

67869MCLIP, DOOR WEATHERSTRIP

main90467-06084×4iTJH252,VJA252202402

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60150iTJH252,VJA252202402

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×34iTJH252,VJA252202402

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60150iTJH252,VJA252202402

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-60070iTJH252,VJA252202402

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-60040iTJH252,VJA252202402

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-60070iTJH252,VJA252..ARL,CHI202402

NV PACKAGE HIGH GRADE

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-60070iTJH252,VJA252..ARL,CHI202402

NV PACKAGE HIGH GRADE

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-60560iTJH252,VJA252202402

main68103-60490iVJA252..RUS202402

AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-60550iTJH252,VJA252202402

main68104-60560iVJA252..RUS202402

AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60500iVJA252..RUS202402

AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE

main68123-60510supersedes 68123-60490iTJH252,VJA252..CHI,RUS202402

LUXURY+ PACKAGE

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60510iVJA252..RUS202402

AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE

main68124-60520supersedes 68124-60500iTJH252,VJA252..CHI,RUS202402

LUXURY+ PACKAGE

68142CRUN, REAR DOOR GLASS, RH

main68142-60090iTJH252,VJA252202402

68152CRUN, REAR DOOR GLASS, LH

main68152-60080iTJH252,VJA252202402

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60100iTJH252,VJA252202402

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60100iTJH252,VJA252202402

68630DCHECK ASSY, REAR DOOR, RH

main68630-60180iTJH252,VJA252202402

68640ACHECK ASSY, REAR DOOR, LH

main68640-60160iTJH252,VJA252202402

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60080supersedes 75923-60070iVJA252..RUS202402

LUXURY PACKAGE

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60080supersedes 75924-60070iVJA252..RUS202402

LUXURY PACKAGE

75927ATAPE, BLACK OUT, NO.4 RH

main75927-60050iTJH252,VJA252202402

75928CTAPE, BLACK OUT, NO.4 LH

main75928-60050iTJH252,VJA252202402

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-60190iTJH252,VJA252202402

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-60190iTJH252,VJA252202402

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-60730supersedes 75987-60720iTJH252,VJA252..CHI,RUS202402

LUXURY+ PACKAGE

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-60A00supersedes 75988-60890iTJH252,VJA252..CHI,RUS202402

LUXURY+ PACKAGE

86262DCOVER, REAR DOOR SPEAKER

main86262-12030×2iTJH252,VJA252..LHD202402

AUDIO-21SPEAKER ML 14INCH

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9095001506

main90950-01506

9095001604

main90950-01604

9095001919

main90950-01919

9415180600

main94151-80600

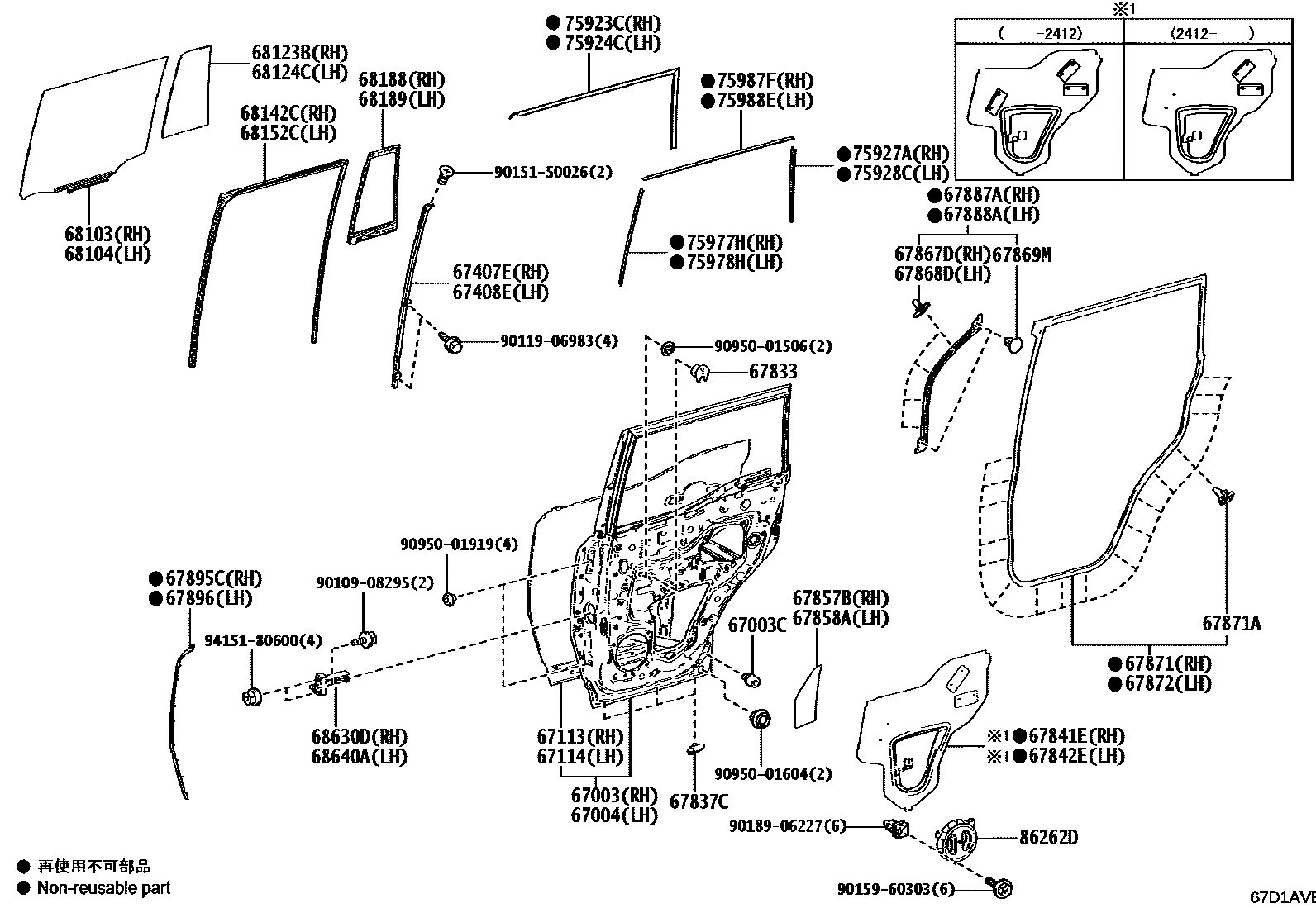

51 parts on this diagram · 2 diagrams in section
