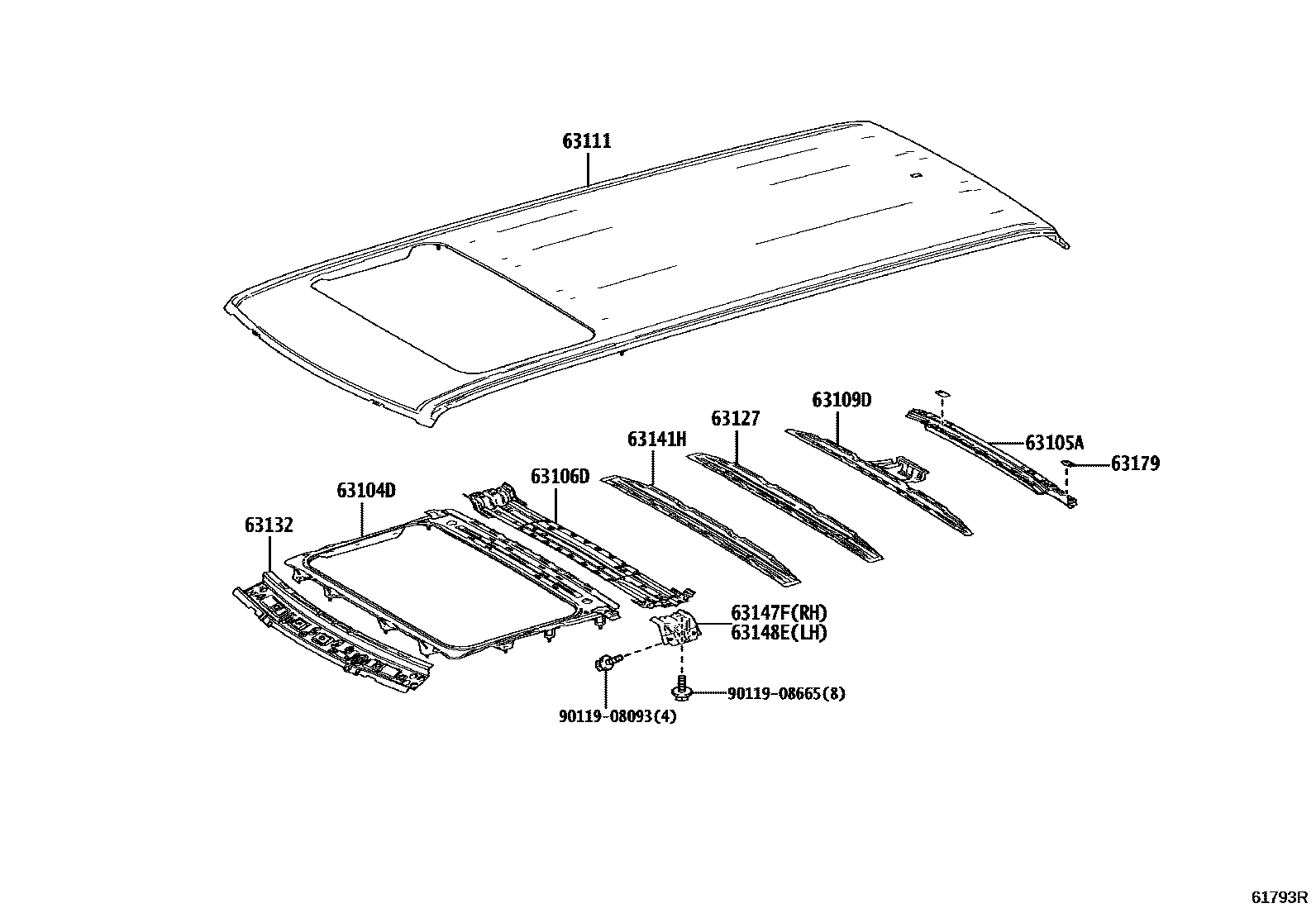

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(MOON ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1ROOF PANEL(NORMAL ROOF) 0004 1SLIDING ROOF(MOON ROOF) 0005 1SLIDING ROOF(PANORAMA ROOF) 0006 1ROOF RAIL(WITHOUT) 0007 1ROOF RAIL(SOLID TYPE) 0008 1ROOF RAIL(BRIDGE TYPE)

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60090iTJH252,VJA252202402

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60320iTJH252,VJA252202402

63106DREINFORCE SUB-ASSY, ROOF PANEL, CENTER NO.1

main63106-60100iTJH252,VJA252..ARL,CHI,GEN202402

MOON ROOF-WITH(PANORAMA ROOF)

main63106-60100iTJH252,VJA252202402

MOON ROOF-WITHOUT

63109DFRAME SUB-ASSY, ROOF

main63109-60040iTJH252,VJA252202402

63111PANEL, ROOF

main63111-60A60iTJH252,VJA252..ARL,CHI,GEN202402

MOON ROOF-WITHOUT

main63111-60A70iTJH252,VJA252202402

main63111-60A90iTJH252,VJA252202402

MOON ROOF-WITH(PANORAMA ROOF)

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-60050iTJH252,VJA252202402

63132PANEL, WINDSHIELD HEADER, INNER

main63132-60110iTJH252,VJA252202402

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-60160iTJH252,VJA252202402

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-60090iTJH252,VJA252202402

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-60090iTJH252,VJA252202402

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iTJH252,VJA252202402

9011908093

main90119-08093

9011908665

main90119-08665

13 parts on this diagram · 8 diagrams in section
