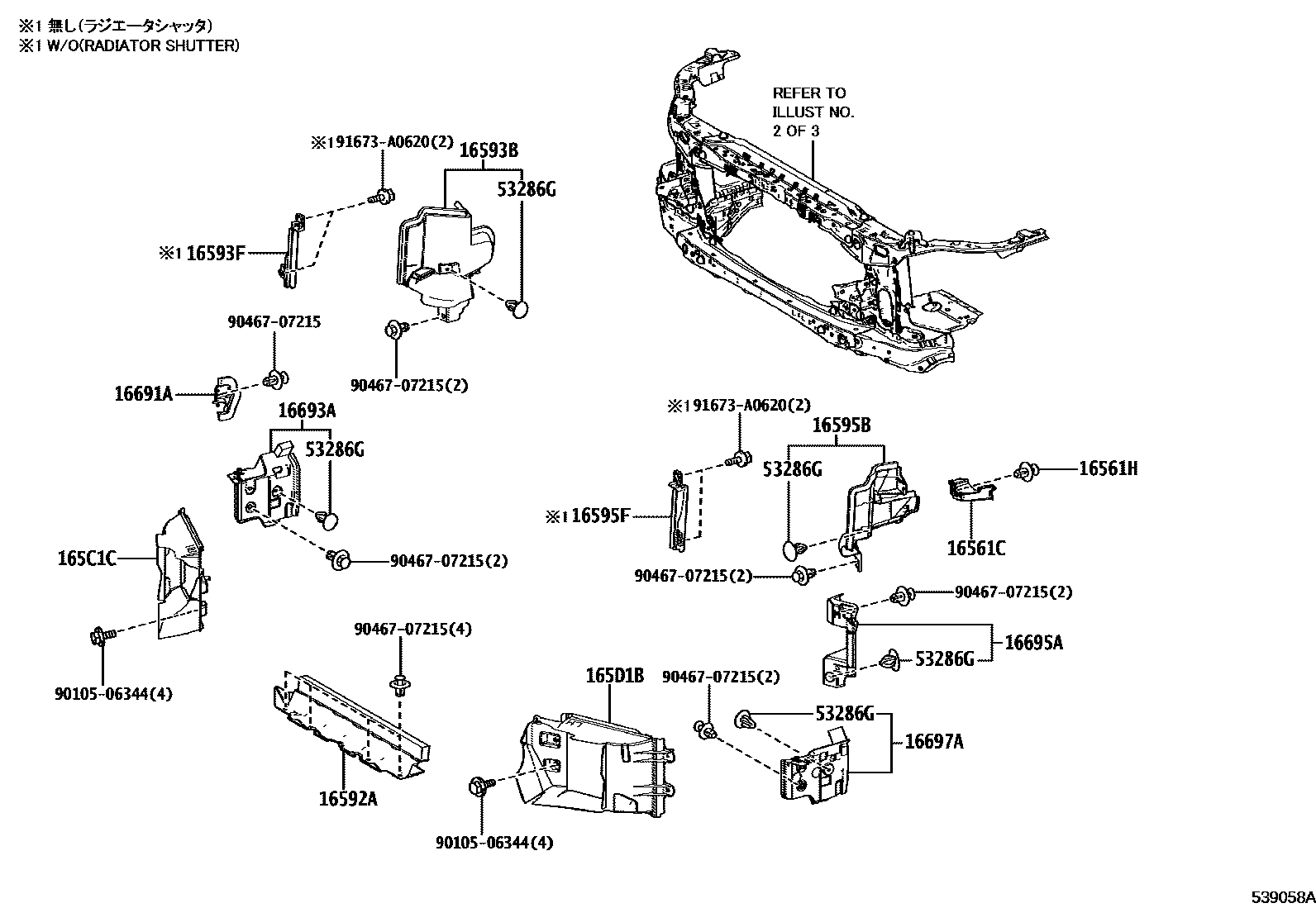

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL 0006 1DASH PANEL 0007 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-25040iT24,V35AFTS..TJH252,VJA252¥490202402

16561HCLIP, RADIATOR TO SUPPORT SEAL

main90467-07215iT24,V35AFTS..TJH252,VJA252¥80202402

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25070iT24..TJH252202403

main16592-75010iV35AFTS..VJA252¥3,850202402

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25370iT24..TJH252202403

main16593-70070iV35AFTS..VJA252¥3,850202402

16593FGUIDE, RADIATOR AIR, NO.1 RH

main16593-70030iV35AFTS..VJA252¥1,310202402

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25350iT24..TJH252202403

main16595-70080iV35AFTS..VJA252¥3,220202402

16595FGUIDE, RADIATOR AIR, NO.1 LH

main16595-70040iV35AFTS..VJA252¥1,360202402

165C1CDUCT, SUB-RADIATOR, RH NO.1

main165C1-70080iV35AFTS..VJA252¥4,710202402

165D1BDUCT, SUB-RADIATOR, LH NO.1

main165D1-70060iV35AFTS..VJA252¥4,740202402

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-70030iV35AFTS..VJA252¥780202402

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-70010iT24,V35AFTS..TJH252,VJA252¥2,280202402

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-70020iV35AFTS..VJA252¥2,190202402

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-70010iT24,V35AFTS..TJH252,VJA252¥2,160202402

53286GCLIP, RADIATOR SIDE AIR SEAL

main90467-10005-C0iVJA252202402

BLACK

sub90467-10005¥90

sub90467-06017¥110

9010506344

main90105-06344¥60

9046707215

main90467-07215¥80

91673A0620

main91673-A0620¥60

17 parts on this diagram · 7 diagrams in section
