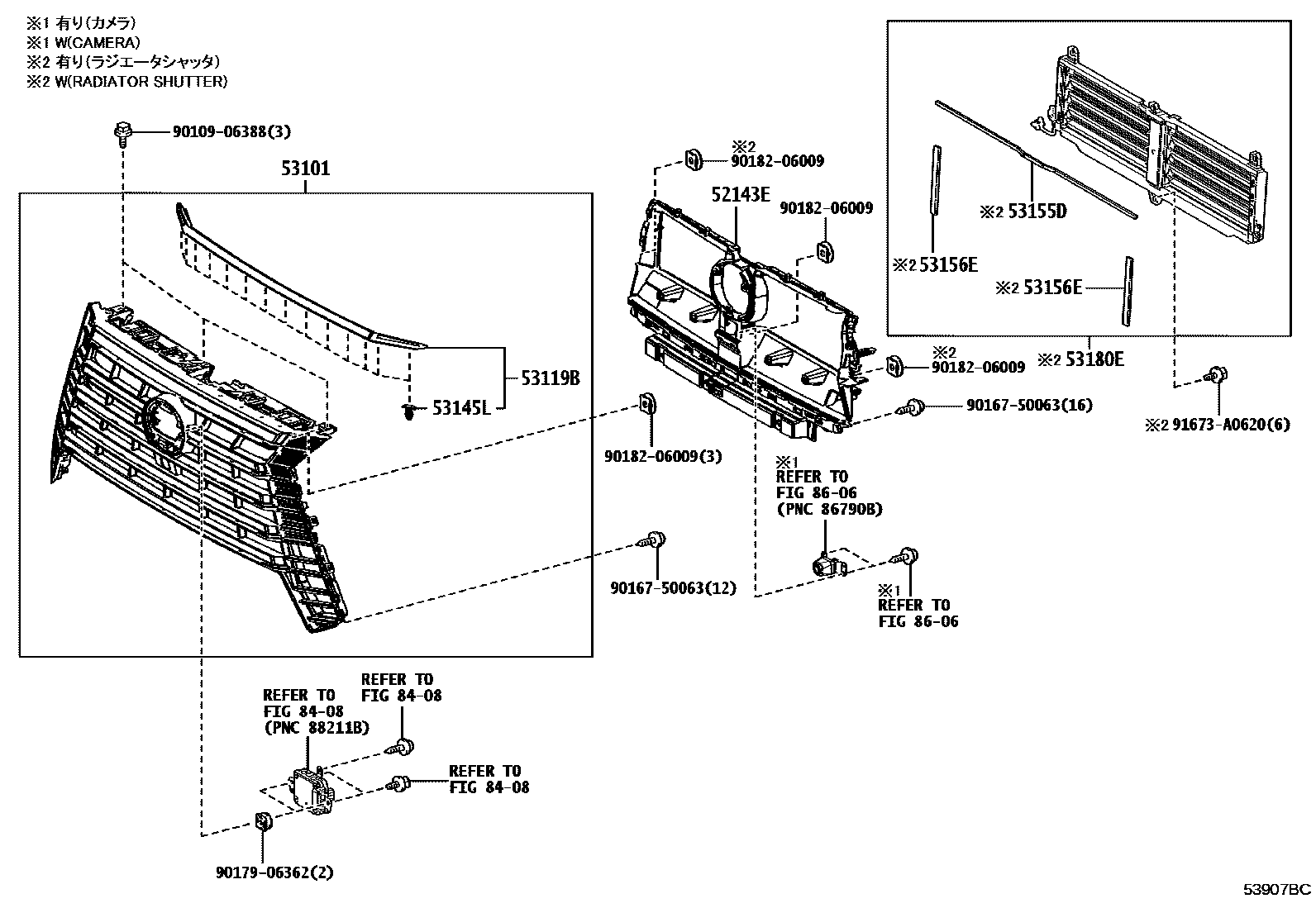

RADIATOR GRILLE

52143EPLATE, FRONT ENERGY ABSORBER MOUNTING

main52143-60170iVJA252202402

main52143-60180iTJH252202403

53101GRILLE SUB-ASSY, RADIATOR

main53101-60S20supersedes 53101-60Q90iVJA252..RUS202402

NO PAINT REQ.

main53101-60S30iTJH252202403

NO PAINT REQ.

53119BPROTECTOR, RADIATOR GRILLE

main53119-60090iTJH252,VJA252202402

53145LCLIP, RADIATOR GRILLE

main53145-60030×14iTJH252,VJA252202402

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-60080iTJH252202403

53156ESEAL, RADIATOR GRILLE, NO.2

main53156-60080×2iTJH252202403

53180ESHUTTER ASSY, RADIATOR

main53180-60050iTJH252202403-202404

main53180-60051iVJA252..ARL,GEN202405

LUXURY PACKAGE&TIRE & DISC WHEEL-265/50R22 7.5J ALUMINUM

8408

8606

9010906388

main90109-06388

9016750063

main90167-50063

9017906362

main90179-06362

9018206009

main90182-06009

91673A0620

main91673-A0620

14 parts on this diagram · 1 diagram in section
