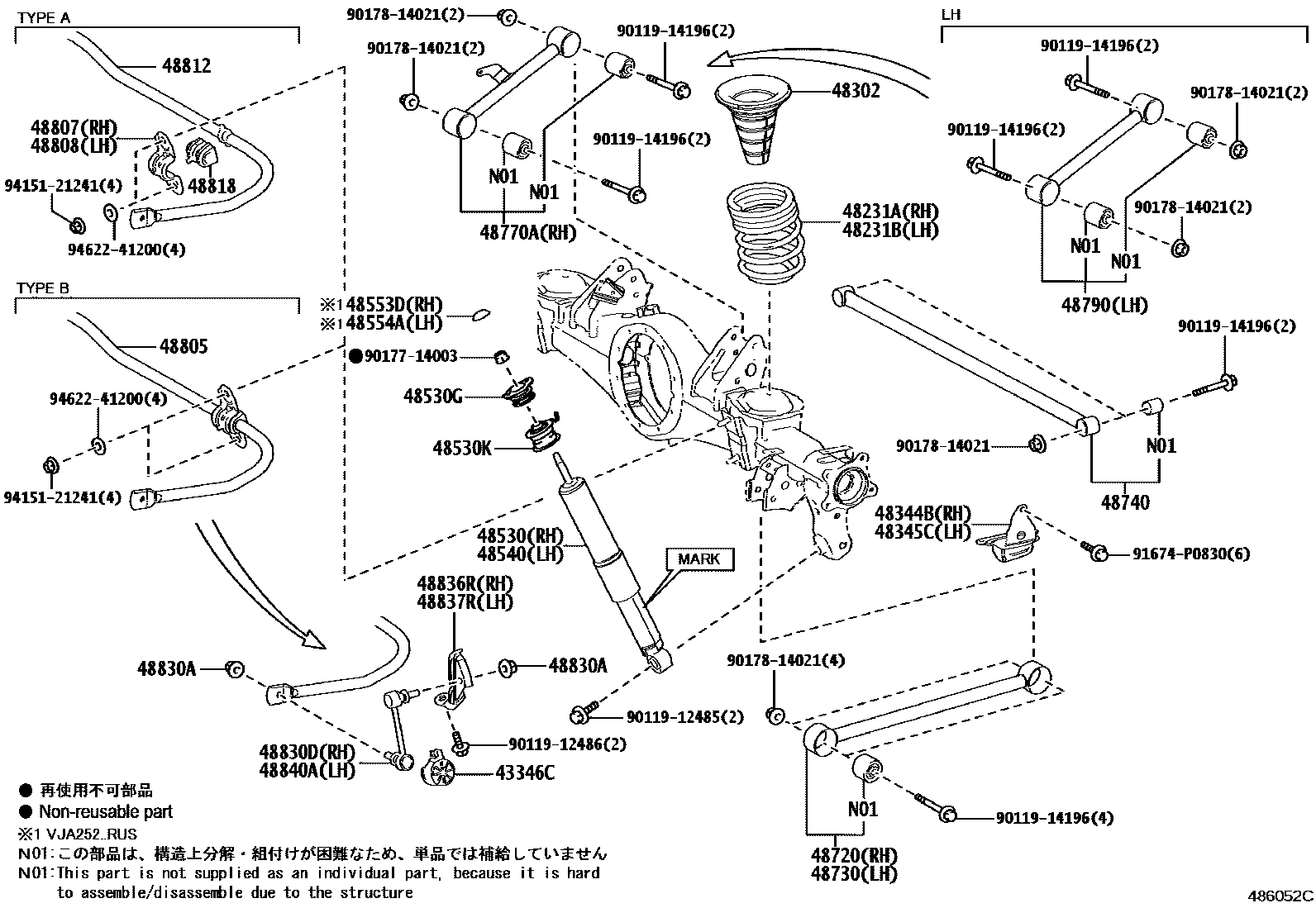

REAR SPRING & SHOCK ABSORBER
43346CPROTECTOR, LOWER BALL JOINT DUST COVER
48231ASPRING, COIL, REAR RH
"OVERTRAIL" PACKAGE
"OVERTRAIL" PACKAGE&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM
LUXURY+ PACKAGE
"OVERTRAIL+" PACKAGE
48231BSPRING, COIL, REAR LH
"OVERTRAIL" PACKAGE
"OVERTRAIL" PACKAGE&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM
LUXURY+ PACKAGE
"OVERTRAIL+" PACKAGE
48302SPRING SUB-ASSY, HOLLOW
48344BSTOPPER, BUMPER, REAR RH
48345CSTOPPER, BUMPER, REAR LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60590,LUXURY+ PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48530-60630,"OVERTRAIL" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48530-60630,"OVERTRAIL+" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48530-60620
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60620
MARK 48540-60040,LUXURY+ PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48540-60050,"OVERTRAIL" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48540-60050,"OVERTRAIL+" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48805BAR SUB-ASSY, REAR STABILIZER
AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE
GEORGIA SPEC&"OVERTRAIL+" PACKAGE
"OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE
48807BRACKET, REAR STABILIZER BAR, RH
48808BRACKET, REAR STABILIZER BAR, LH
48812BAR, STABILIZER, REAR
TYPE B
TYPE A
48818BUSH, STABILIZER, REAR
AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE
GEORGIA SPEC&"OVERTRAIL+" PACKAGE
"OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE
48830ANUT(FOR REAR STABILIZER LINK)
AZERBAIJAN SPEC
GEORGIA SPEC
AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE
GEORGIA SPEC&"OVERTRAIL+" PACKAGE
"OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE
48830DLINK ASSY, REAR STABILIZER, RH
48836RBRACKET, REAR STABILIZER END, RH
AZERBAIJAN SPEC&"OVERTRAIL+" PACKAGE
GEORGIA SPEC&"OVERTRAIL+" PACKAGE
"OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE
AZERBAIJAN SPEC
GEORGIA SPEC
48837RBRACKET, REAR STABILIZER END, LH
48840ALINK ASSY, REAR STABILIZER, LH
9011912485
main90119-12485
9011912486
main90119-12486
9011914196
main90119-14196
9017714003
main90177-14003
9017814021
main90178-14021
91674P0830
main91674-P0830
9415121241
main94151-21241
9462241200
main94622-41200
35 parts on this diagram · 3 diagrams in section
