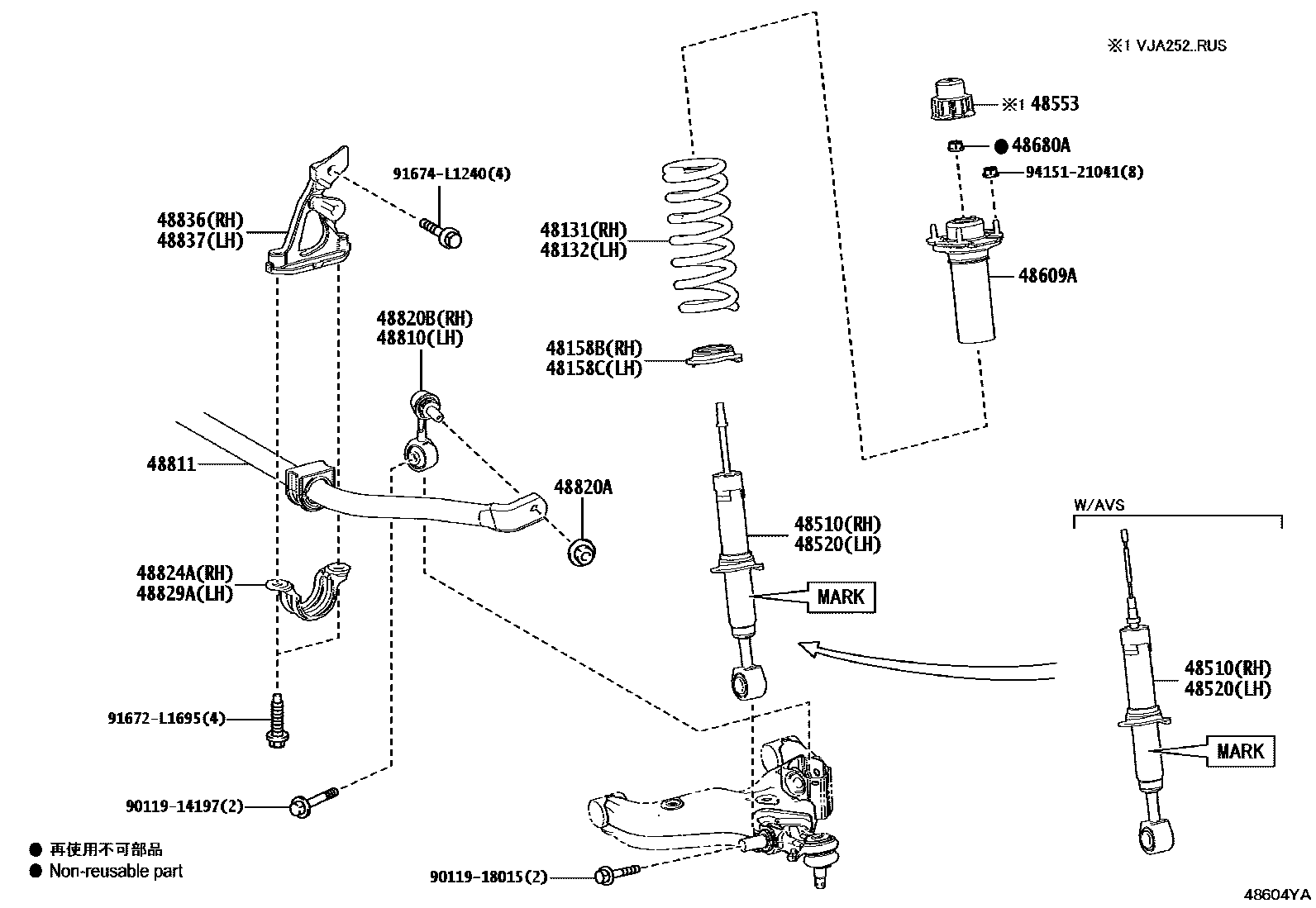

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
"OVERTRAIL+" PACKAGE
48132SPRING, FRONT COIL, LH
"OVERTRAIL+" PACKAGE
LUXURY+ PACKAGE
"OVERTRAIL+" PACKAGE
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-60550,LUXURY+ PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48510-60610,"OVERTRAIL" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-60550,LUXURY+ PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48510-60610,"OVERTRAIL" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM
48553CAP, SHOCK ABSORBER, UPPER
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
"OVERTRAIL+" PACKAGE
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48836BRACKET, FRONT STABILIZER END, RH
48837BRACKET, FRONT STABILIZER END, LH
9011914197
main90119-14197
9011918015
main90119-18015
91672L1695
main91672-L1695
91674L1240
main91674-L1240
9415121041
main94151-21041
22 parts on this diagram · 3 diagrams in section
