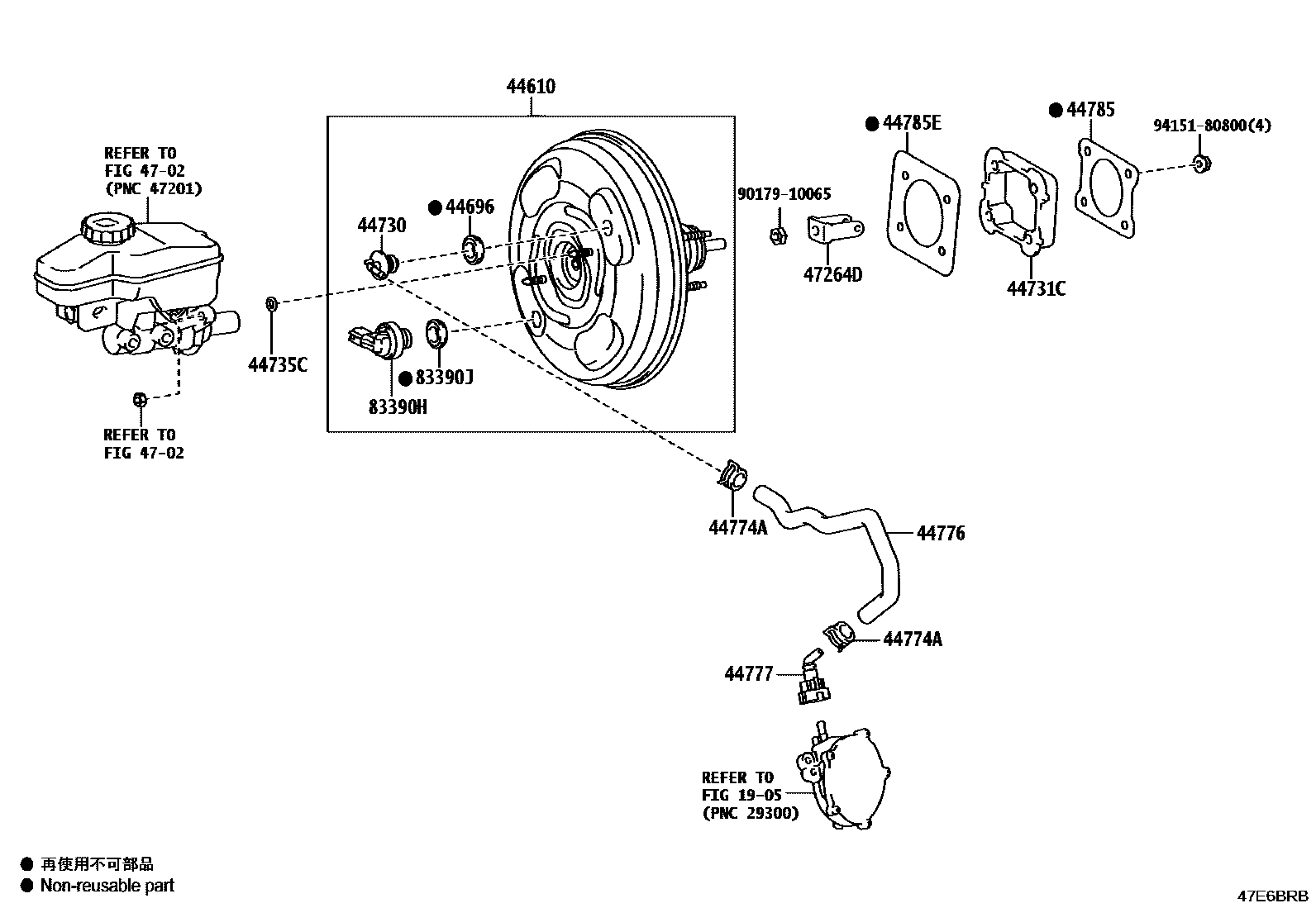

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-60A90iVJA252..ARL202402

main44610-60B40iVJA252..LHD202402

44696GROMMET, CHECK VALVE

main90480-24439iVJA252202402

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iVJA252..LHD202402

main44730-52010iVJA252..ARL202402

44731CBRACKET, BRAKE BOOSTER

main44731-60060iVJA252202402

44735CRING, BOOSTER BRACKET STOPPER

main44735-30020iVJA252202402

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iVJA252..ARL202402

44776HOSE, BRAKE BOOSTER

main44776-60070iVJA252..LHD202402

main44776-60090iVJA252..ARL202402

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-42020iVJA252202402

44785GASKET, BRAKE BOOSTER

main44785-12040iVJA252202402

44785EGASKET, BRAKE BOOSTER, NO.2

main44785-47010iVJA252202402

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-48020iVJA252202402

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iVJA252202402

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iVJA252202402

9017910065

main90179-10065

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
