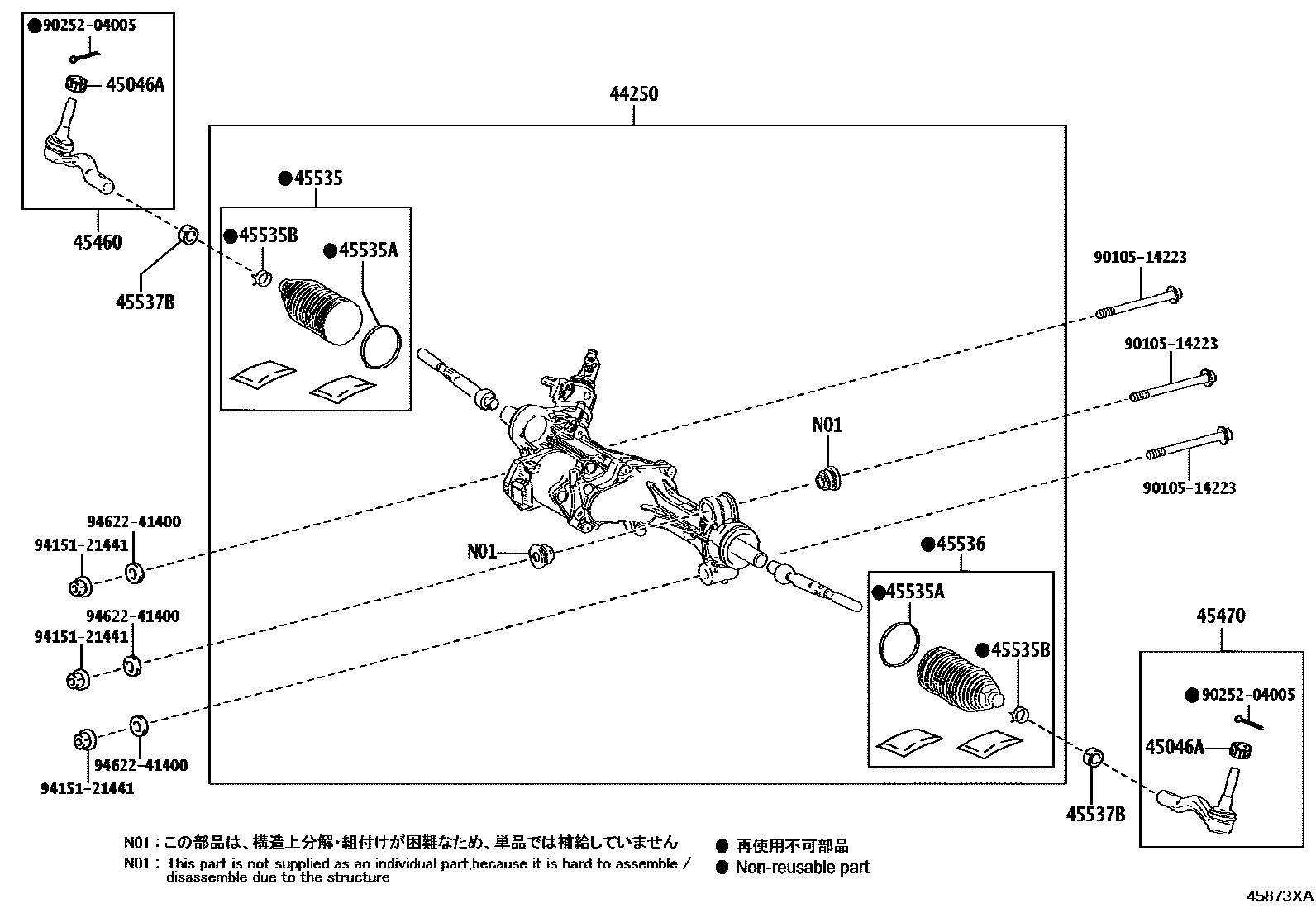

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-60360iVJA252..ARL202402

*614

main44250-60370iTJH252,VJA252..LHD202402

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16011×2iTJH252,VJA252202402

45460ROD ASSY, TIE, RH

main45046-69295iTJH252,VJA252202402

45470ROD ASSY, TIE, LH

main45047-69175iTJH252,VJA252202402

45535BOOT, STEERING RACK, NO.1

main45535-69055iTJH252,VJA252202402

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-81008×2iTJH252,VJA252202402

45535BCLIP(FOR STEERING RACK BOOT)

main96134-42300×2iTJH252,VJA252202402

45536BOOT, STEERING RACK, NO.2

main45535-69055iTJH252,VJA252202402

45537BNUT, RACK END LOCK

main90170-18011×2iTJH252,VJA252202402

9010514223

main90105-14223

9025204005

main90252-04005

9415121441

main94151-21441

9462241400

main94622-41400

13 parts on this diagram · 2 diagrams in section
