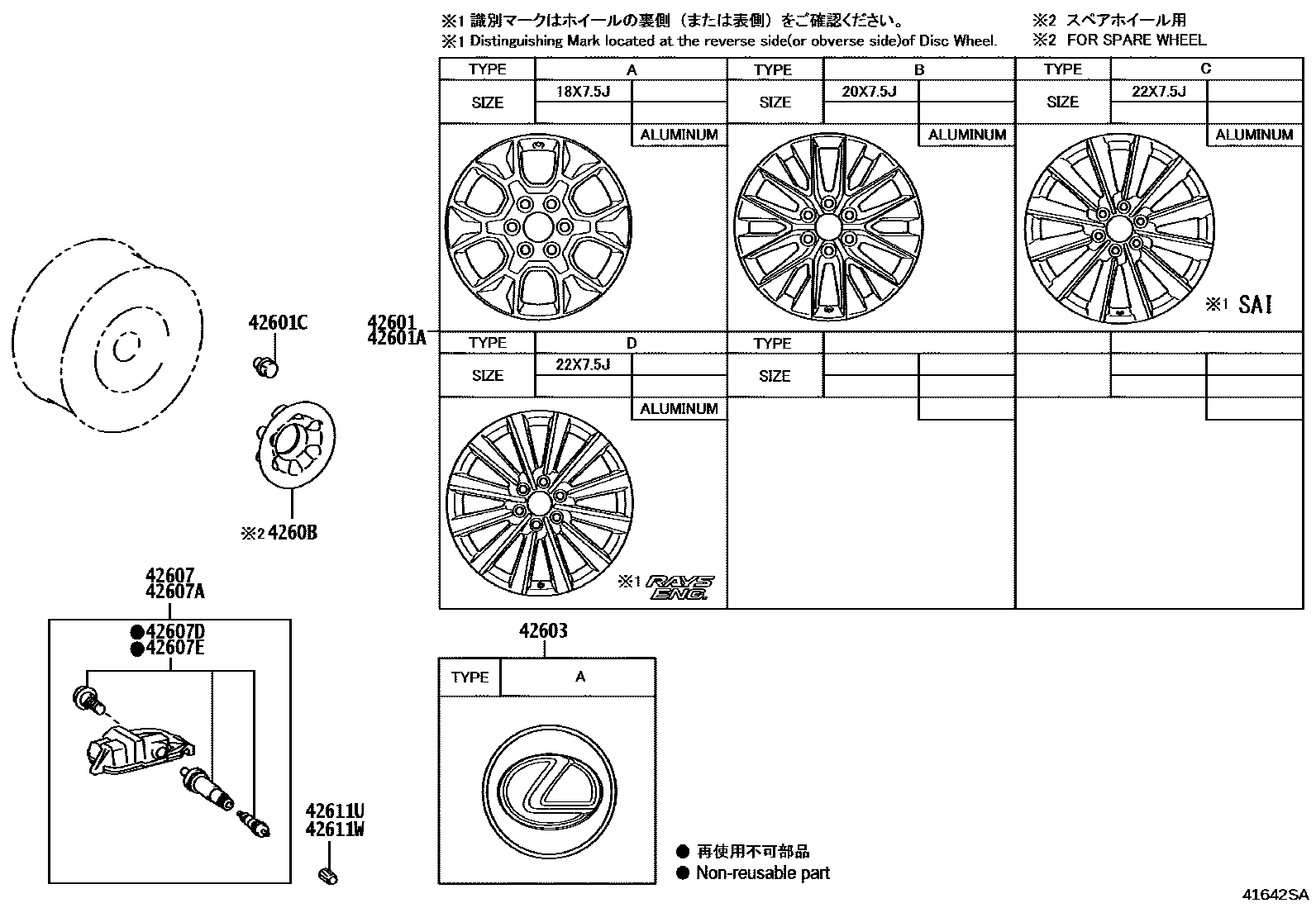

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-60N50iTJH252,VJA252..ARL,CHI202402

20X7.5J,TYPE B:REFER ILLUST.

main42611-60N50iTJH252,VJA252..ARL,CHI202402

20X7.5J,PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.

main42611-60N60iVJA252..RUS202402

20X7.5J,TYPE B:REFER ILLUST.

main42611-60N70iVJA252..GEN202402

20X7.5J,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-60N50iTJH252,VJA252..ARL,CHI202402

20X7.5J,TYPE B:REFER ILLUST.

main42611-60N50iTJH252,VJA252..ARL,CHI202402

20X7.5J,PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.

main42611-60N60iVJA252..RUS202402

20X7.5J,TYPE B:REFER ILLUST.

main42611-60N70iVJA252..GEN202402

20X7.5J,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01121iTJH252,VJA252202402

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-60700iTJH252,VJA252202402

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-76030iTJH252,VJA252202402

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-76030iTJH252,VJA252202402

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05051iTJH252,VJA252202402

42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)

main90942-05051iTJH252,VJA252202402

4260BCOVER SUB-ASSY, WHEEL HUB

main4260B-60520iTJH252,VJA252202402

42611UCAP, TIRE VALVE

main90942-05048iTJH252,VJA252202402

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05048iTJH252,VJA252202402

11 parts on this diagram · 2 diagrams in section
