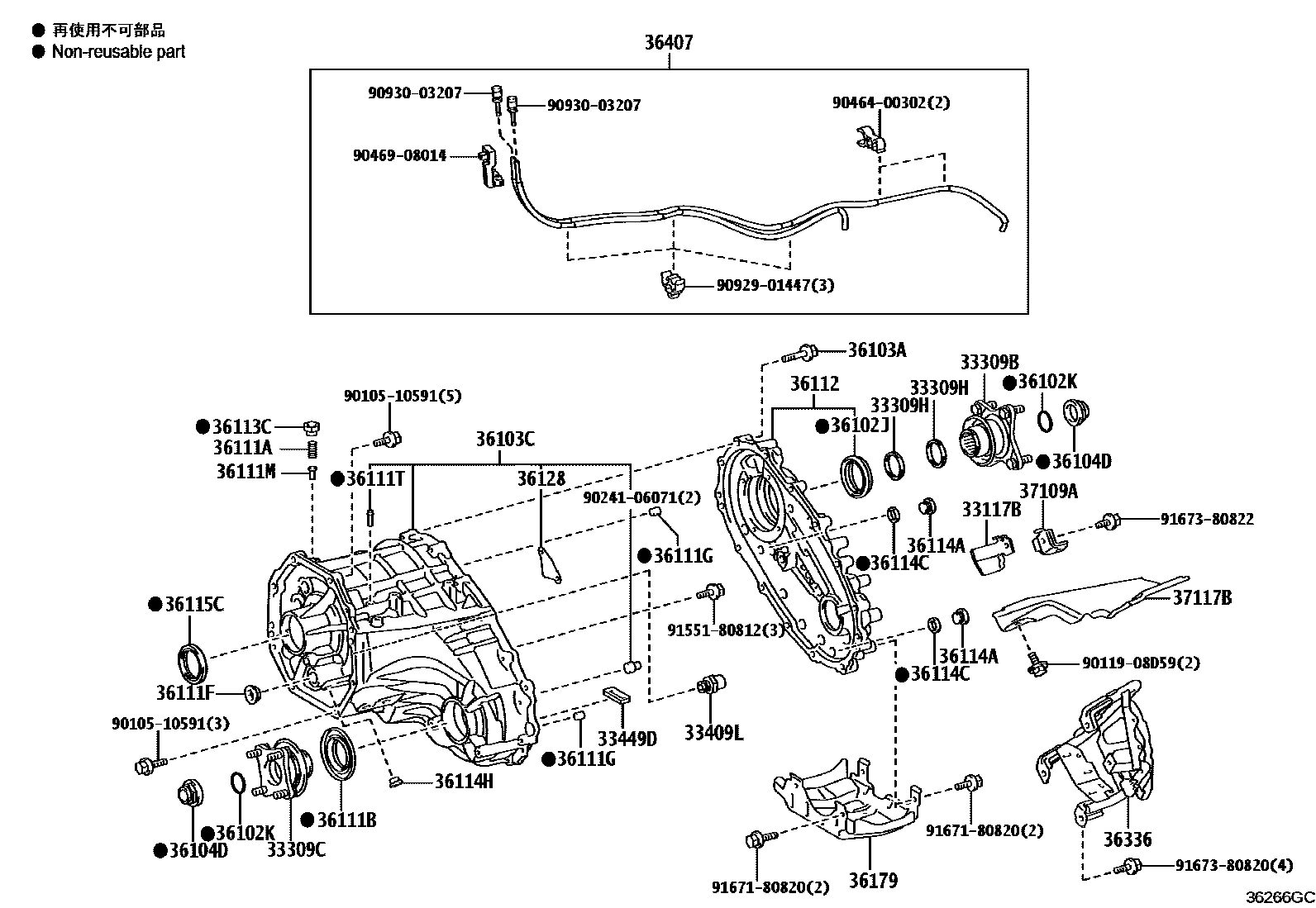

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33117BPROTECTOR, TRANSFER CASE

main36179-60060iVJA252202405

main36179-60080iVJA252202402-202404

sub36179-60060

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35113iTJH252202403

main33309-60220iVJA252202402

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60170iVJA252202402

main33309-60180iTJH252202403

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010iVJA252202402

T=0.8

main36275-35030iTJH252202403

N=31,OD=38

33409LVALVE SUB-ASSY, TRANSFER OIL PUMP RELIEF

main33409-60010iVJA252202402

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iTJH252202403

main33449-60010iVJA252202402

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50065iVJA252202402

36102KRING, O

main90301-31003iVJA252202402

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iTJH252202403

*8-1.25PX55-30

main91551-00845iVJA252202402

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-60440iVJA252202402

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iTJH252202403

main90179-24011iVJA252202402

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iTJH252,VJA252202402

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41017iTJH252202403

main90311-50066iVJA252202402

36111FPLUG (FOR TRANSFER CASE)

main90341-24006iVJA252202402

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iTJH252,VJA252202402

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iVJA252202402

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iTJH252,VJA252202402

sub90406-T0007

36112CASE, TRANSFER, REAR

main36104-60070iVJA252202402

main36112-35100iTJH252202403

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iVJA252202402

36114APLUG, TIGHT(FOR TRANSFER CASE)

main90341-18060iVJA252202402

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iVJA252202402

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-12004iVJA252202402

36115HOUSING, TRANSFER EXTENSION

main36105-60060iTJH252202403

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41020iTJH252202403

main90311-51009iVJA252202402

36128DEFLECTOR, BREATHER OIL

main36128-60080iVJA252202402

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60030iTJH252202403

NO.2

main36179-60040iVJA252202402

main36179-60070iTJH252202403

NO.1

36336INSULATOR, TRANSFER HEAT

main36336-60050iVJA252202402-202411

main36336-60060iVJA252202411

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60390iVJA252202402

main36407-60441iTJH252202403

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-60050iVJA252202402

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-60090iVJA252202402-202411

main37117-60100iVJA252202411

9010510591

main90105-10591

9011908D59

main90119-08D59

9024106071

main90241-06071

9046400302

main90464-00302

9046908014

main90469-08014

9092901447

main90929-01447

9093003207

main90930-03207

9155180812

main91551-80812

9167180820

main91671-80820

9167380820

main91673-80820

9167380822

main91673-80822

41 parts on this diagram · 2 diagrams in section
