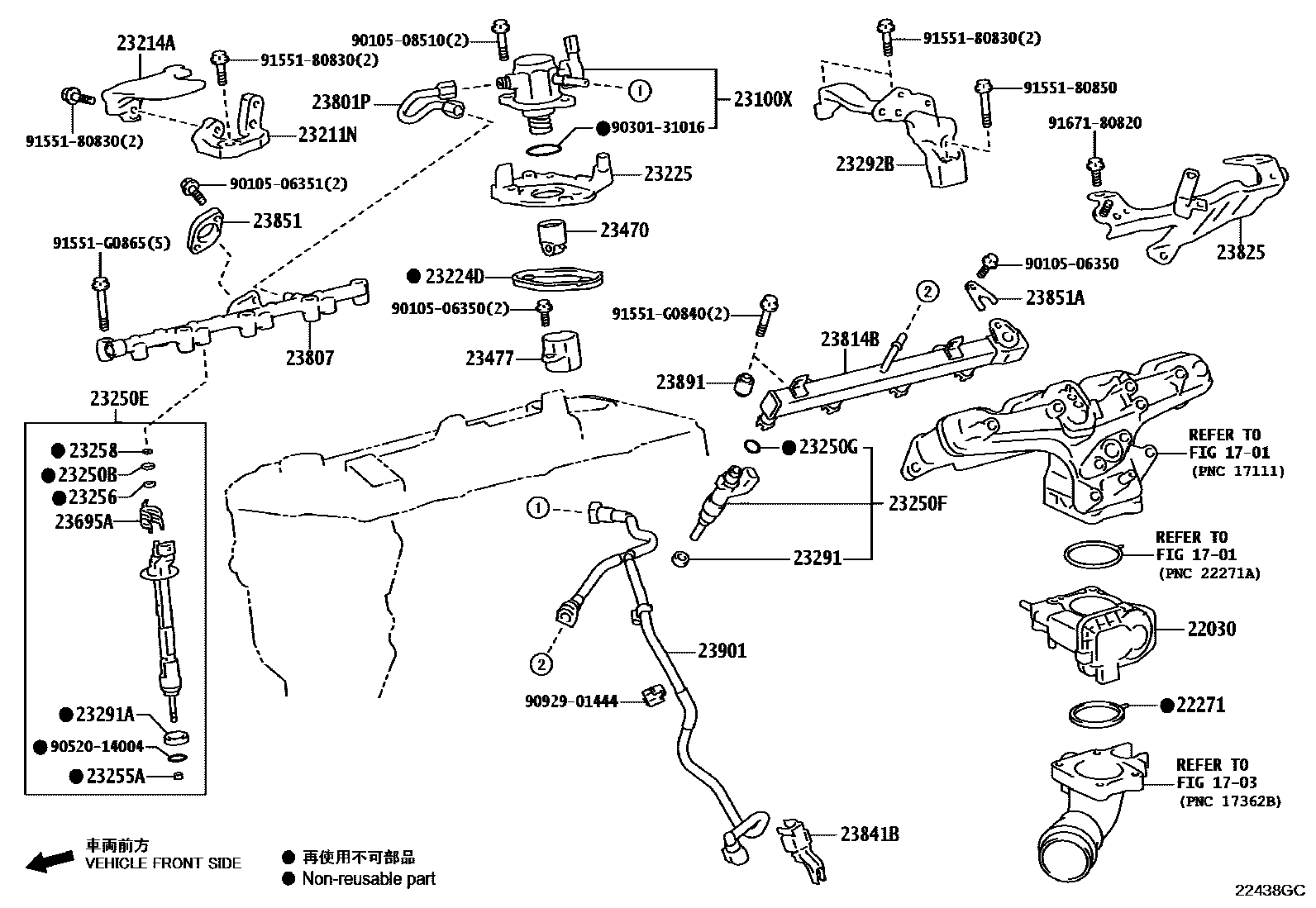

FUEL INJECTION SYSTEM
1701
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23211NBRACKET, FUEL PUMP PROTECTOR
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
23250FINJECTOR ASSY, FUEL(FOR PORT)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23292BPROTECTOR, FUEL HOSE
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23814BPIPE, FUEL DELIVERY
23825GUARD, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23891SPACER, FUEL DELIVERY
9010506350
main90105-06350
9010506351
main90105-06351
9010508510
main90105-08510
9030131016
main90301-31016
9052014004
main90520-14004
9092901444
main90929-01444
9155180830
main91551-80830
9155180850
main91551-80850
91551G0840
main91551-G0840
91551G0865
main91551-G0865
9167180820
main91671-80820
42 parts on this diagram · 2 diagrams in section
