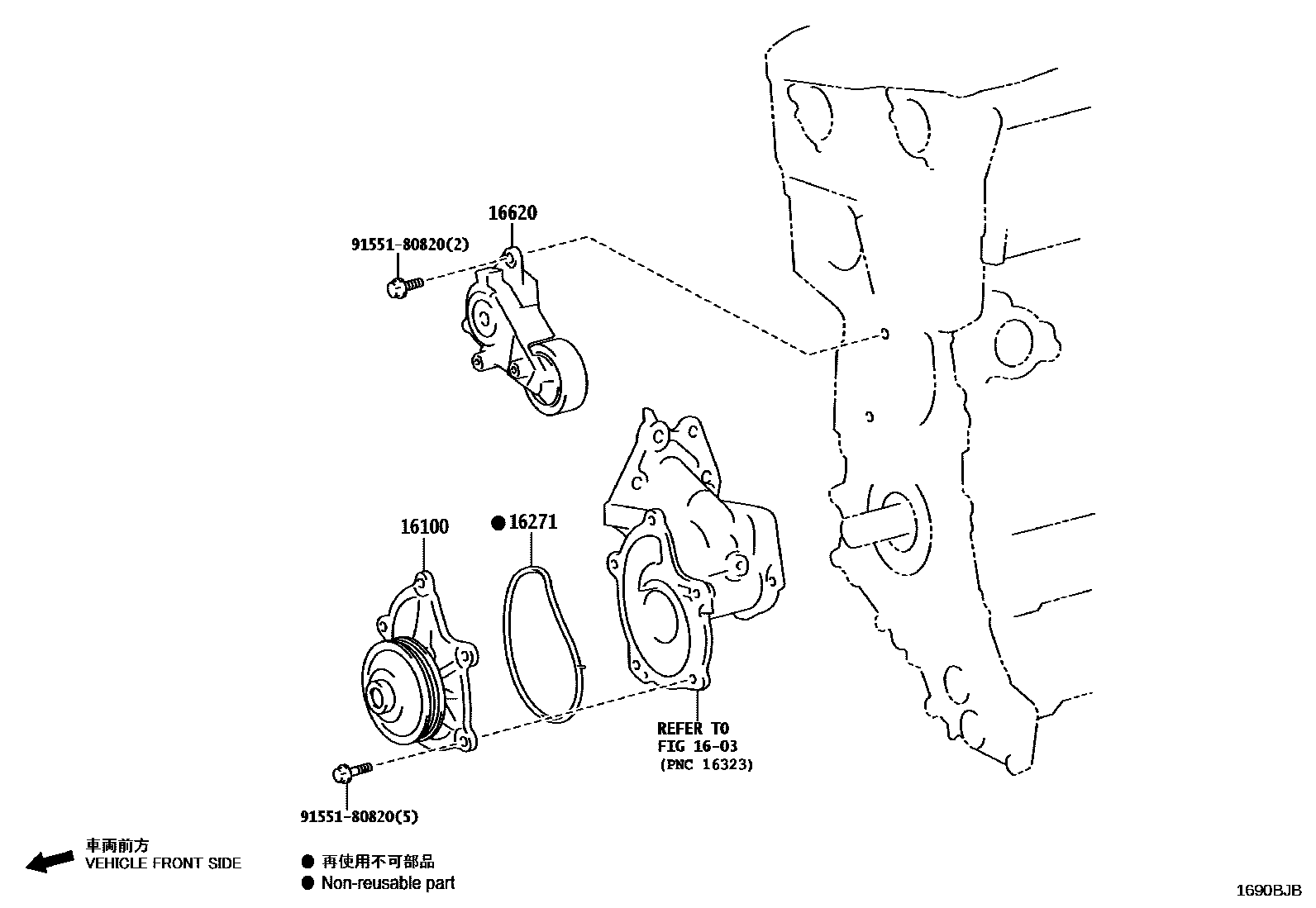

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-25040iT24..TJH252¥10,000202403

main16100-79525iV35AFTS..VJA252¥12,000202402

16271GASKET, WATER PUMP

main16271-25030iT24..TJH252¥520202403

main16271-70020iV35AFTS..VJA252¥370202402

NO.2

main16271-70030iV35AFTS..VJA252¥1,740202402

NO.1

16620TENSIONER ASSY, V-RIBBED BELT

main16620-25030iT24..TJH252¥10,100202403

9155180820

main91551-80820¥80

5 parts on this diagram · 2 diagrams in section
