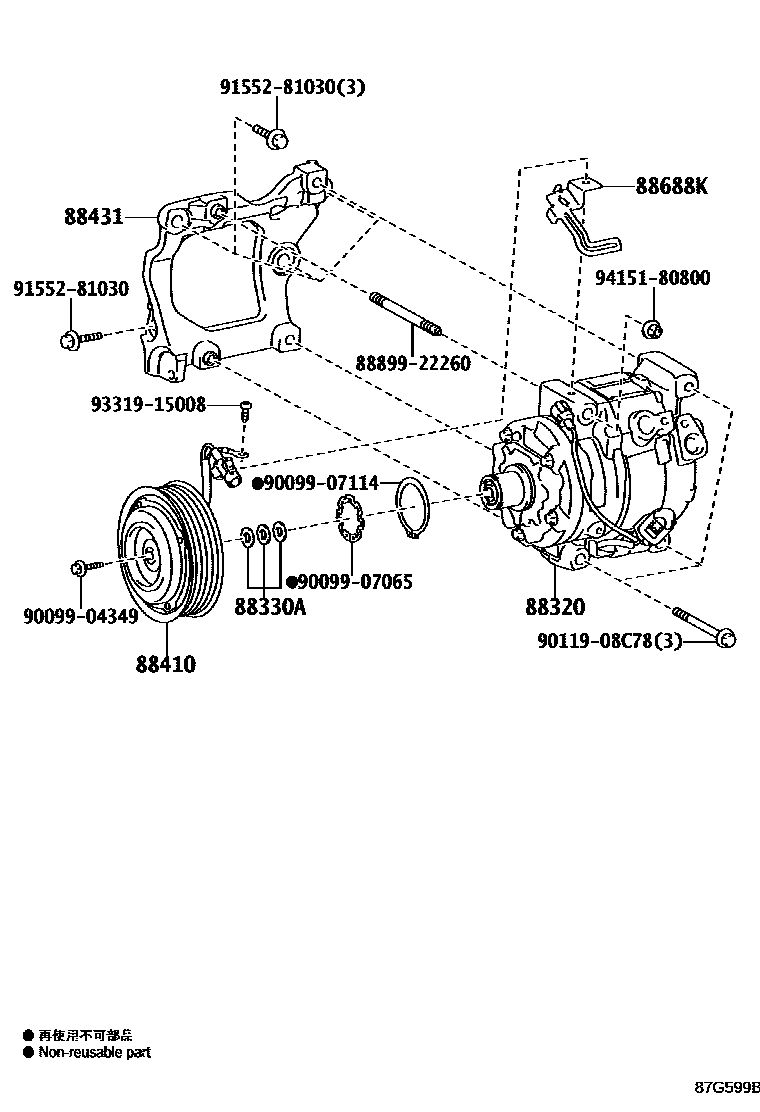

HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
KUWAIT SPEC&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
KUWAIT SPEC
KUWAIT SPEC
KUWAIT SPEC&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
KUWAIT SPEC
AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
KUWAIT SPEC&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
AIR CONDITIONER-DUAL(MANUAL)
GCC SPEC
SAUDI ARABIA SPEC&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(MANUAL)
MIDDLE EAST SPEC(EXCEPT GCC),TYPE B:REFER ILLUST.
MIDDLE EAST SPEC(EXCEPT GCC)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),TYPE B:REFER ILLUST.
SAUDI ARABIA SPEC&ENGINE-FOR EURO 3 CONFORMITY,TYPE B:REFER ILLUST.
MIDDLE EAST SPEC(EXCEPT GCC)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),TYPE B:REFER ILLUST.
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,TYPE A:REFER ILLUST.
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC
COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)
EGYPT SPEC
88330AWASHER (FOR MAGNET CLUTCH)
88410CLUTCH ASSY, MAGNET
KUWAIT SPEC
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88688KBRACKET, COOLER COMPRESSOR
TYPE A:REFER ILLUST.
KUWAIT SPEC
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC
MIDDLE EAST SPEC(EXCEPT GCC)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),TYPE B:REFER ILLUST.
MIDDLE EAST SPEC(EXCEPT GCC)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),TYPE B:REFER ILLUST.
8889922260COVER, EVAPORATOR
main88899-22260
9009904349
main90099-04349
9009907065
main90099-07065
9009907114
main90099-07114
9011908C78
main90119-08C78
9155281030
main91552-81030
9331915008
main93319-15008
9415180800
main94151-80800
13 parts on this diagram · 6 diagrams in section
