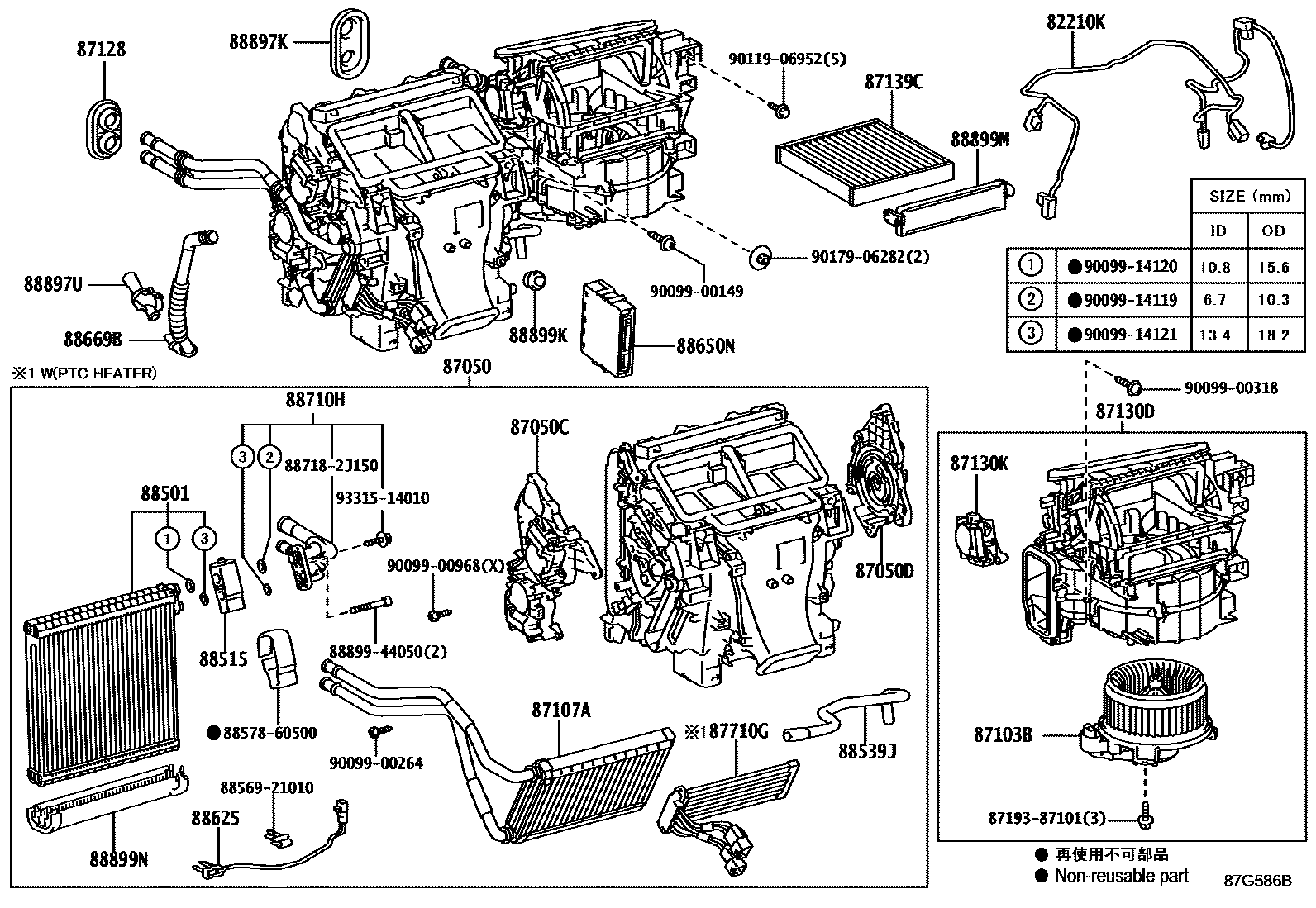

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
COLD AREA SPEC&HEADLAMP-LED & WITH(*AHB)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
87050RADIATOR ASSY, AIR CONDITIONER
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(MANUAL)
KUWAIT SPEC&AIR CONDITIONER-SINGLE(AUTO)
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
KUWAIT SPEC
AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH
COOL BOX-WITH
SAUDI ARABIA SPEC&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH
COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
AIR CONDITIONER-SINGLE(AUTO)
SAUDI ARABIA SPEC
COLD AREA SPEC&AIR CONDITIONER-DUAL(MANUAL)
COLD AREA SPEC
AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-SINGLE(AUTO)
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
AIR CONDITIONER-SINGLE(AUTO)
COLD AREA SPEC&AIR CONDITIONER-DUAL(MANUAL)
COLD AREA SPEC
AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH
VX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
COLD AREA SPEC&HEADLAMP-LED & WITH(*AHB)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87128GROMMET, HEATER
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87139CFILTER, CLEAN AIR
POLLEN DEODORANT
POLLEN FILTER,OE PART
87710GQUICK HEATER ASSY
COLD AREA SPEC&HEADLAMP-LED & WITH(*AHB)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
GCC SPEC&COOL BOX-WITH
AIR CONDITIONER-DUAL(AUTO)
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)
KUWAIT SPEC&AIR CONDITIONER-SINGLE(AUTO)
88515VALVE, COOLER EXPANSION
GCC SPEC&COOL BOX-WITH
GCC SPEC&COOL BOX-WITH
88539JHOSE, DRAIN COOLER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)
COLD AREA SPEC&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(MANUAL)
AIR CONDITIONER-SINGLE(AUTO)
AIR CONDITIONER-SINGLE(AUTO)
AIR CONDITIONER-SINGLE(AUTO)
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)
COLD AREA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & WITH(DEICER)&AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(MANUAL)
COLD AREA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & WITH(DEICER)&AIR CONDITIONER-DUAL(MANUAL)
UAE(GCC)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)
UAE(GCC)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)
AIR CONDITIONER-DUAL(MANUAL)
88669BHOSE, COOLER AIR
COLD AREA SPEC&HEADLAMP-LED & WITH(*AHB)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH
88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88897UPIPE, ASPIRATOR
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)
88899KPLATE, COVER
88899MPLATE, COVER(FOR AIR FILTER)
88899NPLATE, COVER
main88899-60440iGDJ150..GCC;GDJ150..RHD..(GEN,SA);GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN,SA201708-202312
AIR CONDITIONER-DUAL(AUTO)
GCC SPEC&COOL BOX-WITH
8719387101
main87193-87101
8856921010CLAMP (FOR COOLER RELAY)
main88569-21010
8857860500PAKING, COOLER AIR DUCT
main88578-60500
887182J150PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2J150
8889944050COVER, EVAPORATOR
main88899-44050
9009900149
main90099-00149
9009900264
main90099-00264
9009900318
main90099-00318
9009900968
main90099-00968
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906952
main90119-06952
9017906282
main90179-06282
9331514010
main93315-14010
38 parts on this diagram · 7 diagrams in section
