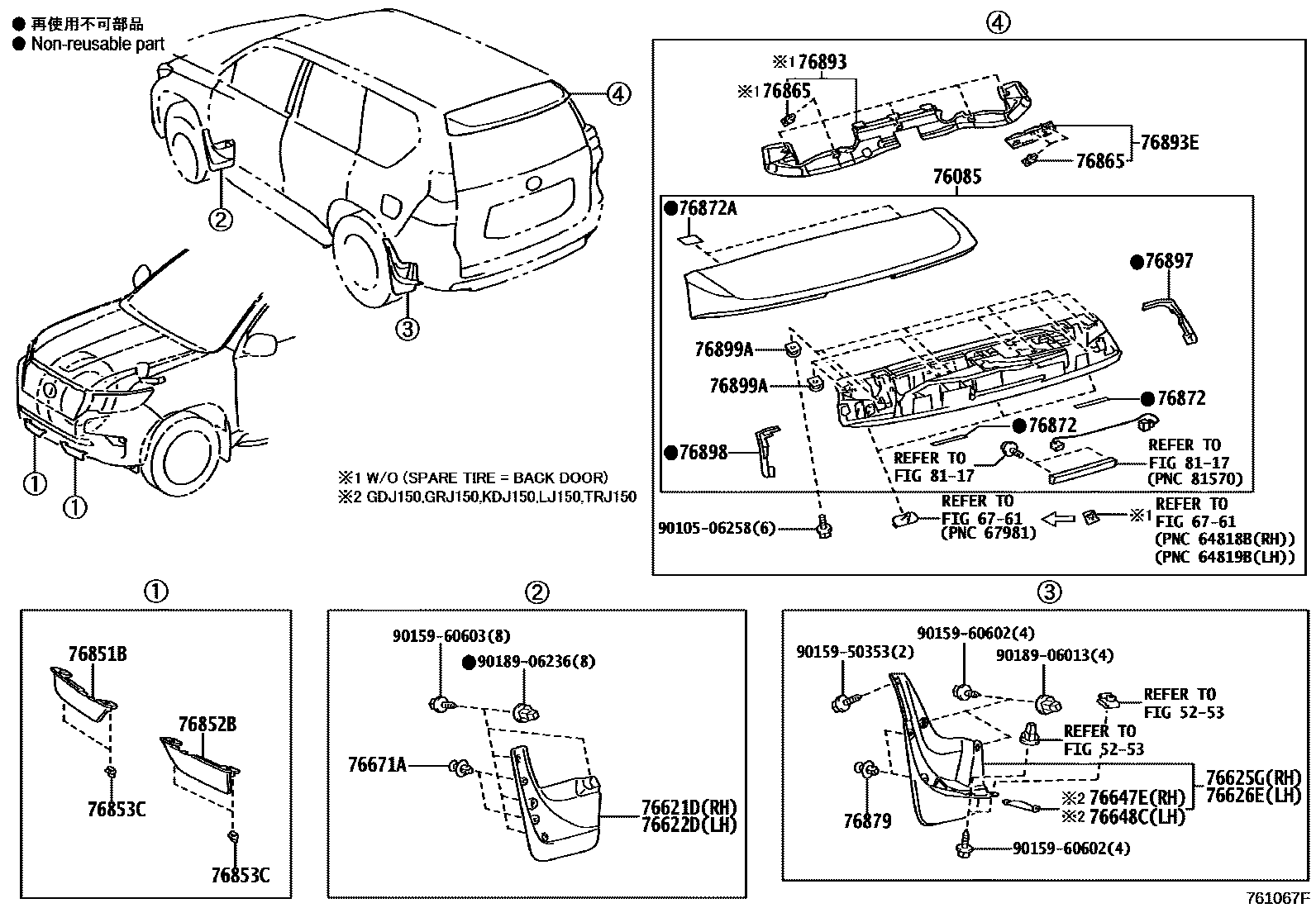

SPOILER & SIDE MUDGUARD
5253
6761
76085SPOILER SUB-ASSY, REAR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
VINTAGE BROWN PEARL CS.,4X4
AVANT-GARDE BRONZE ME.,4V8
76621DMUDGUARD, FRONT FENDER, RH
SIDE STEP-WITH(STEP LAMP LESS, DOP)
SIDE STEP-WITH(STEP LAMP, DOP)
76622DMUDGUARD, FRONT FENDER, LH
SIDE STEP-WITH(STEP LAMP LESS, DOP)
SIDE STEP-WITH(STEP LAMP, DOP)
76625GMUDGUARD, QUARTER PANEL, REAR RH
76626EMUDGUARD, QUARTER PANEL, REAR LH
76647ESUPPORT, REAR BODY MUDGUARD, NO.1 RH
76648CSUPPORT, REAR BODY MUDGUARD, LH
76671ACLIP, FRONT FENDER MUDGUARD
SIDE STEP-WITH(STEP LAMP LESS, DOP)
sub52161-0K040
SIDE STEP-WITH(STEP LAMP, DOP)
sub52161-0K040
76851BSPOILER, FRONT, RH
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
76852BSPOILER, FRONT, LH
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
76853CRETAINER, FRONT SPOILER, NO.1
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
76865RETAINER, REAR SPOILER, NO.1
SPARE TIRE-WITH(BACK DOOR)
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
SPARE TIRE-WITH(UNDER FRAME)
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76879CLIP, REAR SPOILER, NO.1
76893COVER, REAR SPOILER, NO.1
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
SPARE TIRE-WITH(UNDER FRAME)
76893ECOVER, REAR SPOILER, RH
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
SPARE TIRE-WITH(UNDER FRAME)
SPARE TIRE-WITH(BACK DOOR)
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76899ANUT, REAR SPOILER
8117
9010506258
main90105-06258
9015950353
main90159-50353
9015960602
main90159-60602
9015960603
main90159-60603
9018906013
main90189-06013
9018906236
main90189-06236
29 parts on this diagram · 1 diagram in section
