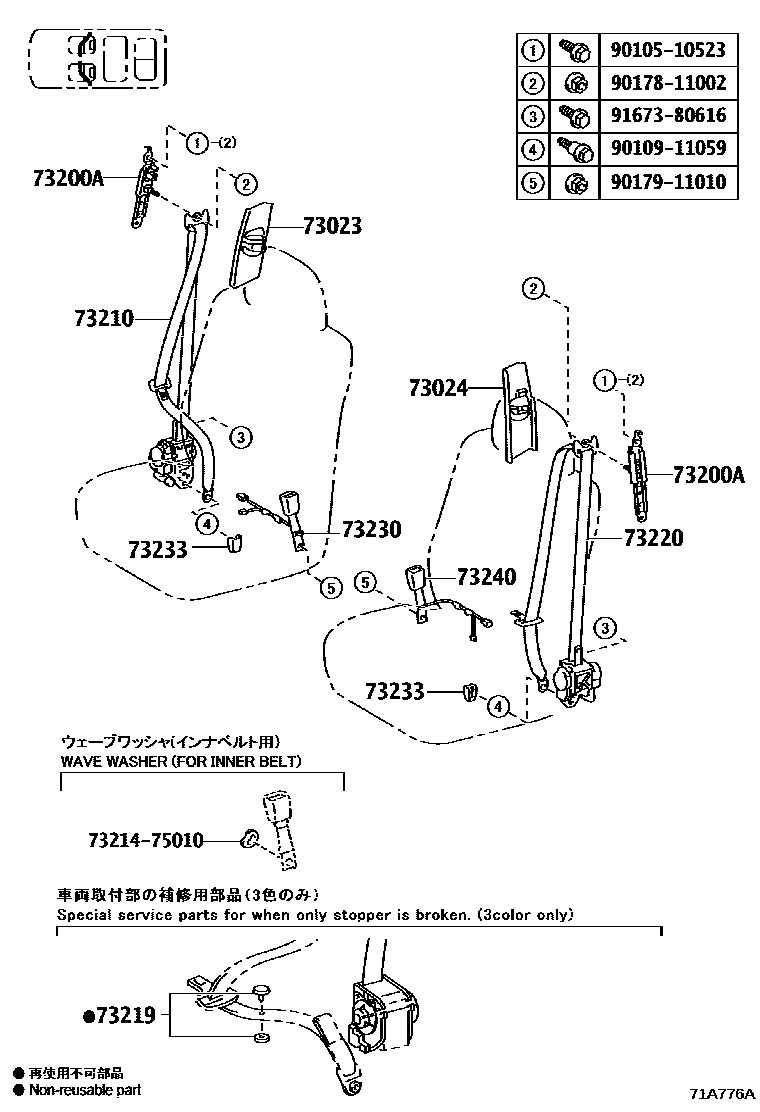

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#
main73023-53020-B0iGDJ150,GRJ150..6FC..(ARL,SA);GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN)201708-202312
LT.GRAY,TRIM2#,41
main73023-53020-E2iGDJ150,GRJ150..6FC..(ARL,SA);GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN)201708-202312
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,41
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/LT.GRAY,TRIM2#,41
sub73210-60773
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK/LT.GRAY,TRIM2#
sub73210-60773
NEUTRAL BEIGE,TRIM4#
sub73210-60773
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),NEUTRAL BEIGE,TRIM4#
sub73210-60773
main73210-60772-E0iTRJ155;GRJ150..ARL;GDJ150..6FC..(ARL,SA);GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN)201708-202208
NEUTRAL BEIGE,TRIM40
sub73210-60773
BLACK/LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/LT.GRAY,TRIM2#,41
sub73220-60633
BLACK/LT.GRAY,TRIM2#
sub73220-60633
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK/LT.GRAY,TRIM2#
sub73220-60633
NEUTRAL BEIGE,TRIM4#
sub73220-60633
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),NEUTRAL BEIGE,TRIM4#
sub73220-60633
BLACK/LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
BLACK,TRIM2#,41
main73230-60530-E1iGDJ150..ARL,SA;GRJ150,LJ150..RHD..(ARL,GEN);GDJ150,KDJ150..RHD..(5FC,6F)..(GEN,SA)201708-202312
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
BLACK,TRIM2#,41
BLACK,TRIM2#
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#,41
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATMANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#,41
BLACK,TRIM2#
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM40
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATMANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-35010-C1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
BLACK,TRIM2#,FRAME NO.=5XXXXXX
main73233-35010-C1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
BLACK,TRIM2#,41,FRAME NO.=5XXXXXX
main73233-35010-C1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#,FRAME NO.=5XXXXXX
main73233-35010-E1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX
main73233-35010-E1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
NEUTRAL BEIGE,TRIM40,FRAME NO.=5XXXXXX
main73233-35010-E1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX
main73233-60020-C1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
BLACK,TRIM2#,*266
sub73233-60020
sub73233-35010
main73233-60020-C1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
BLACK,TRIM2#,41,*266
sub73233-60020
sub73233-35010
main73233-60020-C1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#,*266
sub73233-60020
sub73233-35010
main73233-60020-C1iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,BLACK,TRIM2#
sub73233-60020
sub73233-35010
main73233-60020-E6iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
NEUTRAL BEIGE,TRIM4#,*266
sub73233-60020
sub73233-35010
main73233-60020-E6iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
NEUTRAL BEIGE,TRIM40,*266
sub73233-60020
sub73233-35010
main73233-60020-E6iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),NEUTRAL BEIGE,TRIM4#,*266
sub73233-60020
sub73233-35010
main73233-60020-E6iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
sub73233-60020
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM2#,41
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
main73230-60550-C0iGDJ150..ARL,SA;GRJ150,LJ150..RHD..(ARL,GEN);GDJ150,KDJ150..RHD..(5FC,6F)..(GEN,SA)201708-202312
BLACK,TRIM2#
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#
BLACK,TRIM2#,41
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN),NEUTRAL BEIGE,TRIM4#
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#,41
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATMANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#,41
BLACK,TRIM2#
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATMANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
TX-L PACKAGE&70TH ANNIVERSARY LIMITED*(D)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM40
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9167380616
main91673-80616
15 parts on this diagram · 8 diagrams in section
