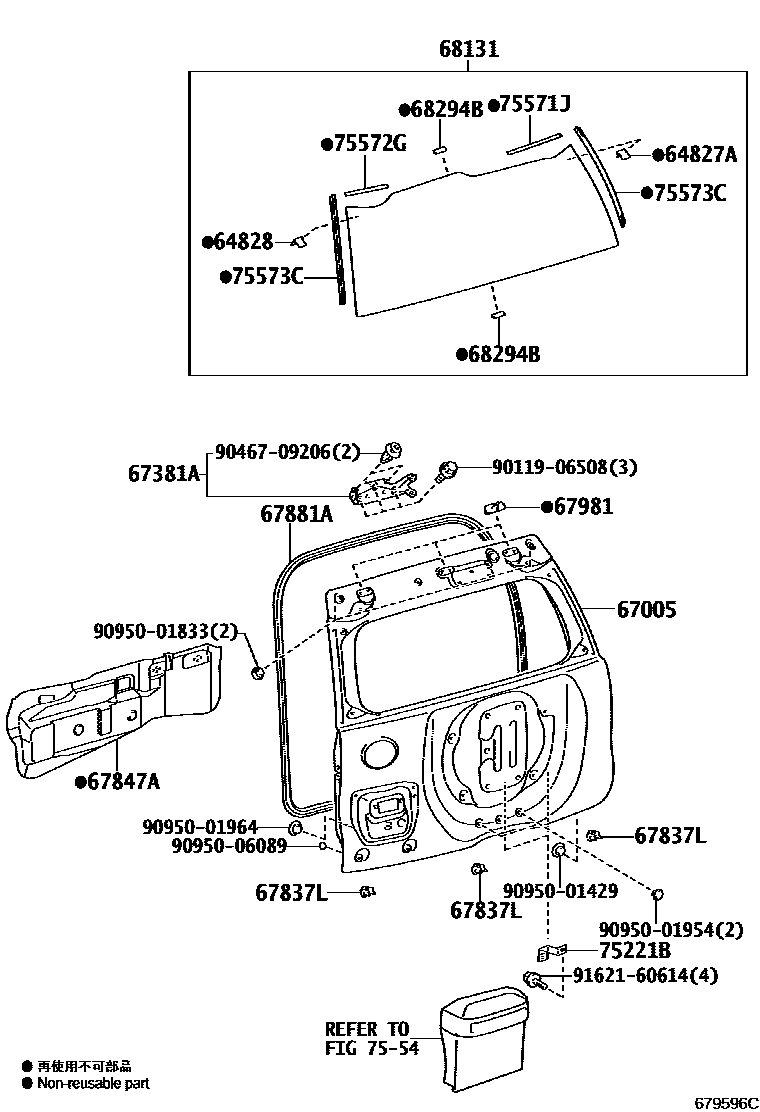

BACK DOOR PANEL & GLASS
64827ACLIP, BACK WINDOW GLASS, RH
SPARE TIRE-WITH(BACK DOOR)
64828CLIP, BACK WINDOW GLASS, LH
SPARE TIRE-WITH(BACK DOOR)
67005PANEL SUB-ASSY, BACK DOOR
KUWAIT SPEC&SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&BACK MONITOR-WITH
KUWAIT SPEC&SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&BACK MONITOR-WITH(MULTI-TELLA
SPARE TIRE-WITH(BACK DOOR)
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT
SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH
PAKISTAN SPEC&VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
PAKISTAN SPEC&VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&BACK MONITOR-WITH
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATPOWER&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN M
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATPOWER&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN M
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&BACK MONITOR-WITH
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER&BACK MONITOR-WITH
SPARE TIRE-WITH(UNDER FRAME)
SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&BACK MONITOR-WITH
SPARE TIRE-WITH(UNDER FRAME)&BACK MONITOR-WITH(FOR RADIO LESS)
PAKISTAN SPEC&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH
67381ABRACKET, BACK WINDOW WIPER MOTOR, NO.1
SPARE TIRE-WITH(BACK DOOR)
67837LSEAL, DOOR DUST PROOF
67847ACOVER, BACK DOOR SERVICE HOLE
SPARE TIRE-WITH(UNDER FRAME)
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT
SPARE TIRE-WITH(BACK DOOR)
67881AWEATHERSTRIP, BACK DOOR
67981STIFFENER, BACK DOOR, NO.2
SPARE TIRE-WITH(BACK DOOR)
68131GLASS, BACK DOOR
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
SPARE TIRE-WITH(UNDER FRAME)
SPARE TIRE-WITH(BACK DOOR)
68294BDAM, BACK DOOR GLASS ADHESIVE
SPARE TIRE-WITH(BACK DOOR)
75221BBRACKET, TOOL BOX
7554
75571JMOULDING, BACK WINDOW OUTSIDE, UPPER RH
SPARE TIRE-WITH(BACK DOOR)
75572GMOULDING, BACK WINDOW OUTSIDE, UPPER LH
SPARE TIRE-WITH(BACK DOOR)
75573CMOULDING, BACK WINDOW, OUTSIDE
SPARE TIRE-WITH(BACK DOOR)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER
PAKISTAN SPEC&VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER
PAKISTAN SPEC&VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REARQUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER
SPARE TIRE-WITH(UNDER FRAME)
SPARE TIRE-WITH(UNDER FRAME)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
9011906508
main90119-06508
9046709206
main90467-09206
9095001429
main90950-01429
9095001833
main90950-01833
9095001954
main90950-01954
9095001964
main90950-01964
9095006089
main90950-06089
9162160614
main91621-60614
23 parts on this diagram · 3 diagrams in section
