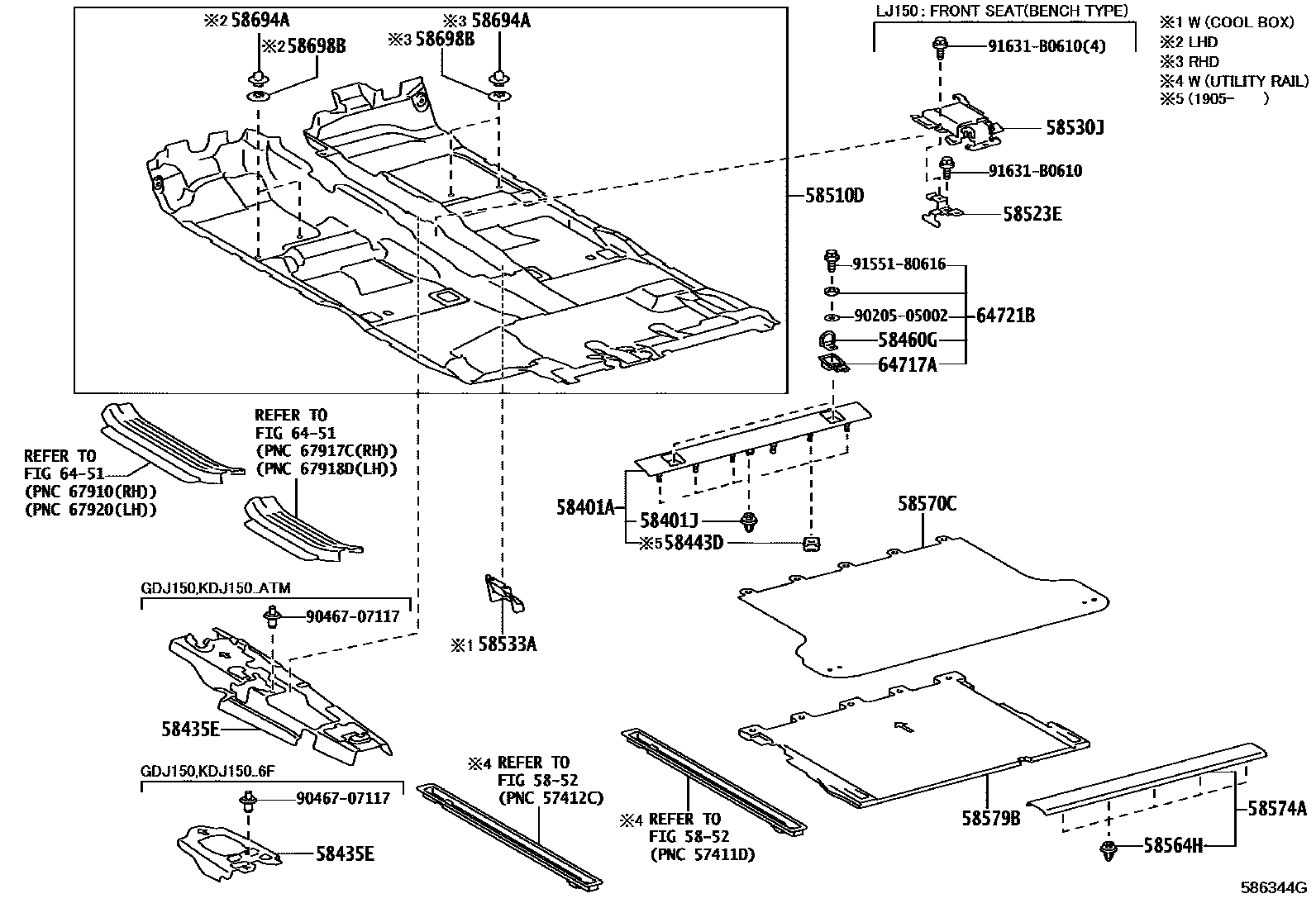

FLOOR MAT & SILENCER PAD
58401ABOARD SUB-ASSY, DECK, NO.1
BLACK,TRIM2#,FRAME NO.=5XXXXXX
sub58401-60011
NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX
sub58401-60011
main58401-60011-C2iGDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201905-202312
BLACK,TRIM2#,41,FRAME NO.=5XXXXXX
main58401-60011-C2iGDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201905-202312
BLACK,TRIM2#,FRAME NO.=5XXXXXX
main58401-60011-E1iGDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201905-202312
NEUTRAL BEIGE,TRIM40,FRAME NO.=5XXXXXX
NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX
58401JCLIP(FOR DECK BOAD)
BLACK
58435ESILENCER, FRONT FLOOR, CENTER
58443DCUSHION, DECK BOARD, NO.1
58460GSTRIKER ASSY, LUGGAGE HOLD BELT
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,BLACK,TRIM2#
COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,BLACK,TRIM2#
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,BLACK,TRIM2#
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,BLACK,TRIM2#
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#,41
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#,41
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
70TH ANNIVERSARY LIMITED*(D)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#,41
70TH ANNIVERSARY LIMITED*(D)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM40
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,41
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#
BLACK,TRIM2#
VX-L PACKAGE&*LES & WITH(AVS)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEATHEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#,41
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#,41
VX-L PACKAGE&*LES & WITH(AVS)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEATHEATER-WITH(DRIVER & PASSENGER & REAR NO.1),NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),NEUTRAL BEIGE,TRIM4#
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),NEUTRAL BEIGE,TRIM40
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),NEUTRAL BEIGE,TRIM40
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),NEUTRAL BEIGE,TRIM4#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM40
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4#
5852
58523EBRACKET, FLOOR CARPET SET
58530JCARPET ASSY, FLOOR, CENTER
58533ACOVER, FLOOR CARPET, CENTER RH
*LES & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#,41
70TH ANNIVERSARY LIMITED*(D)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#,41
70TH ANNIVERSARY LIMITED*(D)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.
70TH ANNIVERSARY LIMITED*(D)&COOL BOX-WITH,BLACK,TRIM2#,41
70TH ANNIVERSARY LIMITED*(D)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,41
70TH ANNIVERSARY LIMITED*(D)&AIR CONDITIONER-DUAL(MANUAL)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,41
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANU
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,BLACK,TRIM2#
COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,BLACK,TRIM2#
*LES & WITHOUT(AVS)&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,BLACK,TRIM2#,41
*LES & WITHOUT(AVS)&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#,41
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH,BLACK,TRIM2#,41
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,BLACK,TRIM2#,41
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,BLACK,TRIM2#,41
*LES & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH,BLACK,TRIM2#,41
*LES & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#,41
COOL BOX-WITH,BLACK,TRIM2#,41
*LES & WITHOUT(AVS)&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
*LES & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
*FAS & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
*LES & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
*LES & *IP(ORNAMENT = BLACK PAINT)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM40
COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
COOL BOX-WITH&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
*LES & WITHOUT(AVS)&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM40
70TH ANNIVERSARY LIMITED*(D)&COOL BOX-WITH&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM40
70TH ANNIVERSARY LIMITED*(D)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.
70TH ANNIVERSARY LIMITED*(D)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
70TH ANNIVERSARY LIMITED*(D)&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM40
70TH ANNIVERSARY LIMITED*(D)&AIR CONDITIONER-DUAL(MANUAL)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM40
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANU
58564HCLIP(FOR REAR FLOOR CARPET)
58570CCARPET ASSY, REAR FLOOR
main58570-60B80-C2iGDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
BLACK,TRIM2#,FRAME NO.=5XXXXXX
BLACK,TRIM2#,41,FRAME NO.=5XXXXXX
NEUTRAL BEIGE,TRIM40,FRAME NO.=5XXXXXX
NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
main58570-60D00-C0iGDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
BLACK,TRIM2#,41,*266
sub58570-60B80
main58570-60D00-E0iGDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
NEUTRAL BEIGE,TRIM40,*266
sub58570-60B80
NEUTRAL BEIGE,TRIM4#,*266
sub58570-60B80
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
main58574-60120-C0iGDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
BLACK,TRIM2#,41
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2#
BLACK,TRIM2#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2#,41
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,41
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM40
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM40
58579BPAD, REAR FLOOR
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
6451
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
NEUTRAL BEIGE,TRIM40
sub64717-60030
NEUTRAL BEIGE,TRIM4#
sub64717-60030
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
NEUTRAL BEIGE,TRIM40
sub64721-60010
NEUTRAL BEIGE,TRIM4#
sub64721-60010
9020505002
main90205-05002
9046707117
main90467-07117
9155180616
main91551-80616
91631B0610
main91631-B0610
23 parts on this diagram · 4 diagrams in section
