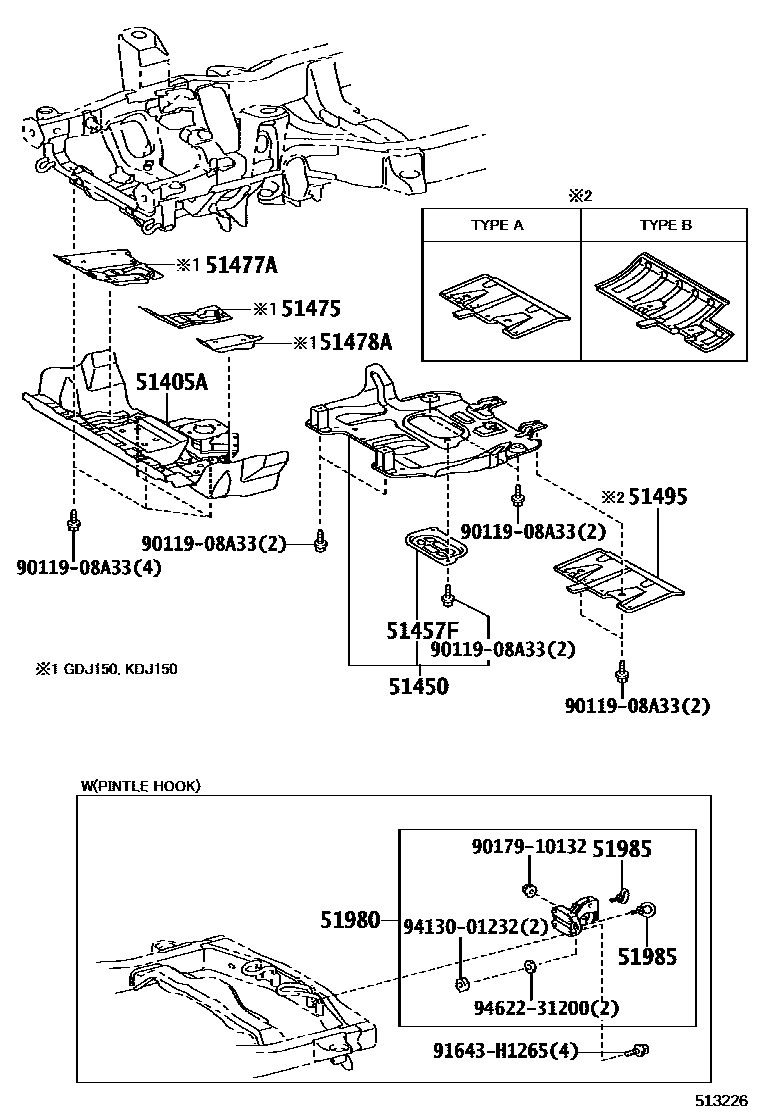

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1W(KDSS)

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60210iGRJ150..SA201708-202312

main51405-60220iGRJ150..SA202208-202312

main51405-60230iGDJ150,KDJ150201708-202312

51450COVER ASSY, ENGINE UNDER, REAR

main51450-60050iGRJ150,LJ150,TRJ15#201708-202312

main51450-60060iGDJ150,KDJ150201708-202105

sub51450-60061

main51450-60061iGDJ150202106-202312

51457FSEAL, ENGINE UNDER COVER

main51457-60030iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-60010iGDJ150,KDJ150201708-202105

sub51475-60011

main51475-60011iGDJ150202106-202312

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-60060iGDJ150,KDJ150201708-202105

sub51477-60061

main51477-60061iGDJ150202106-202312

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-60070iGDJ150,KDJ150201708-202105

sub51478-60071

main51478-60071iGDJ150202106-202312

51495COVER, TRANSMISSION UNDER

main51495-60370iGDJ150,GRJ150,KDJ150,TRJ15#..GCC201708-202312

main51495-60380iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA201708-202312

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main51495-60380iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA201708-202312

CHILE SPEC

main51495-60380iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA201708-202312

COLOMBIA SPEC

51980HOOK ASSY, PINTLE

main51980-35010

51985HOOK, EYELET PINTLE

main51985-60011

9011908A33

main90119-08A33

9017910132

main90179-10132

91643H1265

main91643-H1265

9413001232

main94130-01232

9462231200

main94622-31200

14 parts on this diagram · 2 diagrams in section
