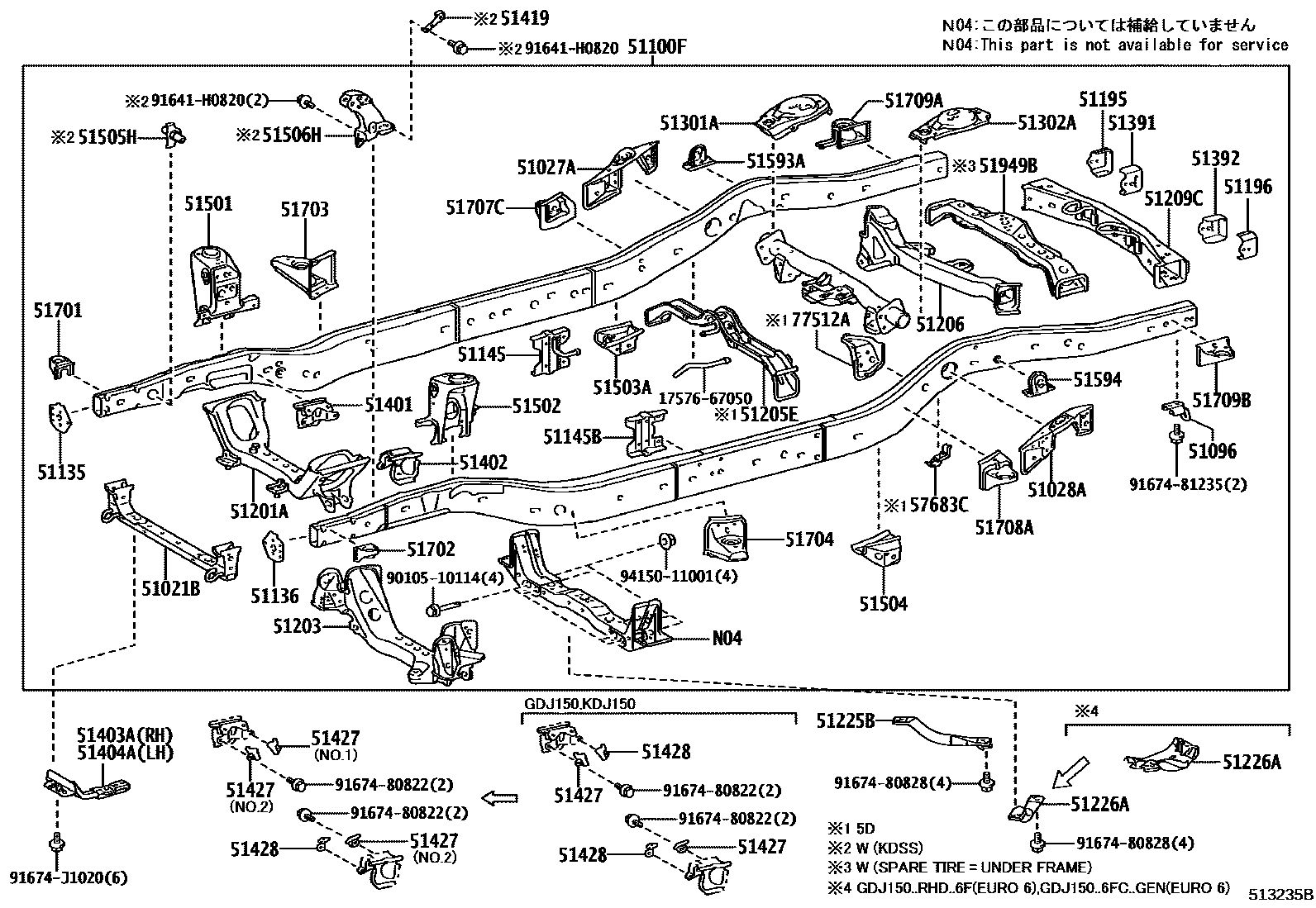

FRAME

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-60041iKDJ150,TRJ155;GDJ150..6F..ARL201708-202312

51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

main51027-60010iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150..ARL,GCC,GEN201708-202312

main51027-60030iGRJ150..SA202208-202312

51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

main51028-60020iKDJ150,TRJ155;GDJ150..6F..ARL201708-202312

main51028-60040iGRJ150..SA202208-202312

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51095-60030iKDJ150,TRJ155;GDJ150..6F..ARL201708-202312

51100FFRAME SUB-ASSY

main51001-60L50iGRJ150..ARL,GEN201708-202312

SPARE TIRE-WITH(BACK DOOR)

main51001-60L50iGRJ150..SA201708-202208

main51001-60L60iGRJ150..ARL,GEN201708-202312

SPARE TIRE-WITH(UNDER FRAME)

main51001-60L71iGRJ150..SA202208-202312

main51001-60L90iGDJ150,KDJ150..ARL,GEN,SA201708-202312

SPARE TIRE-WITH(BACK DOOR)

main51001-60M00iGDJ150,KDJ150..GEN201708-202312

VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51001-60M00iGDJ150,KDJ150..GCC201708-202312

TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51001-60M00iGDJ150,KDJ150..GCC201708-202312

SPARE TIRE-WITH(UNDER FRAME)

main51001-60M30iTRJ150..6FC..GEN201708-202312

SPARE TIRE-WITH(BACK DOOR)

main51001-60M40iTRJ150..6FC..GEN201708-202312

SPARE TIRE-WITH(UNDER FRAME)

main51001-60M50iTRJ150..5F..GEN201708-202312

SPARE TIRE-WITH(BACK DOOR)

main51001-60M60iTRJ150..5F..GCC201708-202312

SPARE TIRE-WITH(UNDER FRAME)

main51001-60M70iLJ150201708-202312

main51002-6B090iTRJ155201708

51135PLATE, FRAME SIDE RAIL, RH

main51135-60040iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51136PLATE, FRAME SIDE RAIL, LH

main51136-60060iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51145STIFFENER, FRAME SIDE RAIL

main510C1-60010iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51145BSTIFFENER, FRAME SIDE RAIL

main51146-60140iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51195PATCH, REAR FRAME RAIL, RH

main51191-60010iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51196PATCH, REAR FRAME RAIL, LH

main51192-60010iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-60190iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60300iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51205ECROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-60210iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51206-60061iTRJ155201708

main51206-60070iGRJ150..SA201708-202312

main51206-60081iGRJ150..SA202208-202312

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60220iGRJ150..ARL;GDJ150,KDJ150..ATM..(ARL,SA)201708-202312

SPARE TIRE-WITH(UNDER FRAME)

main51209-60220iGDJ150,KDJ150..ATM..(ARL,SA)201708-202312

VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51209-60220iGDJ150,KDJ150..ATM..(ARL,SA)201708-202312

VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51209-60220iGDJ150,KDJ150..ATM..(ARL,SA)201708-202312

TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51209-60220iGDJ150,KDJ150..ATM..(ARL,SA)201708-202312

STABILIZER-WITH(KDSS)&SPARE TIRE-WITH(UNDER FRAME)

main51209-60230iGDJ150,GRJ150,KDJ150,TRJ150..GCC201708-202312

SPARE TIRE-WITH(BACK DOOR)

main51209-60230iGDJ150..6F..GEN;GDJ150..6FC..(ARL,GEN,SA);GRJ150,LJ150,TRJ150..ARL,GEN,SA201708-202312

VX PACKAGE&SPARE TIRE-WITH(BACK DOOR)

main51209-60230iTRJ155;KDJ150..GEN,SA;GDJ150..6F..ARL201708

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-35040iTRJ150..5F;GRJ150,LJ150201708-202312

main51225-35050iGDJ150,KDJ150,TRJ15#..5FC,6F,6FC201708-202312

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-35060iTRJ150..5F;GRJ150,LJ150201708-202312

main51226-35070iGDJ150,KDJ150,TRJ15#..5FC,6F,6FC201708-202312

51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH

main51301-60050iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH

main51302-60060iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51391GUSSET, FRAME REAR CROSSMEMBER, RH

main51391-60050iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51392GUSSET, FRAME REAR CROSSMEMBER, LH

main51392-60030iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-60100iGDJ150,KDJ150201708-202312

main51401-60110iGRJ150201708-202312

main51401-60120iTRJ150201708-202312

main51401-60130iLJ150201708-202312

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-60100iGDJ150,KDJ150201708-202312

main51402-60110iGRJ150201708-202312

main51402-60120iTRJ150201708-202312

main51402-60130iLJ150201708-202312

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-60020iGRJ150..SA201708-202312

main51403-60030iGRJ150..SA202208-202312

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51403-60020iGRJ150..SA201708-202312

main51403-60030iGRJ150..SA202208-202312

51419BRACKET, FRAME APRON SEAL

main51419-60010iGRJ150..SA202208-202312

51427REINFORCEMENT, ENGINE FRONT MOUNTING, RH

main12311-31220iGRJ150,TRJ15#201708-202312

NO.2:REFER ILLUST.

main12312-31010iGRJ150,TRJ15#201708-202312

NO.1:REFER ILLUST.

main12316-30010iGDJ150,KDJ150201708-202312

51428REINFORCE, ENGINE MOUNTING, REAR

main12312-30010iGDJ150,KDJ150201708-202312

main12315-31200iGRJ150,TRJ15#201708-202312

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-60050iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-60050iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-60011iTRJ155201708

main5150C-60030iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-60011iTRJ155201708

main5150D-60020iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

51505HBRACKET SUB-ASSY, FRONT STABILIZER, RH

main51505-60050iGRJ150..SA202208-202312

51506HBRACKET SUB-ASSY, FRONT STABILIZER, LH

main51506-60090iGRJ150..SA202208-202312

51593ABRACKET, REAR SPRING BUMPER, RH

main51593-35030iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51594BRACKET, REAR SPRING BUMPER, LH

main51594-35030iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60130iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-60130iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60110iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60100iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-60110iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-60090iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-35040iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51709BBRACKET SUB-ASSY, BODY REAR END MOUNTING, LH

main51706-35060iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

51949BCROSSMEMBER, SPARE WHEEL CARRIER

main51099-60040iGDJ150,GRJ150,KDJ150,TRJ150..GCC201708-202312

VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51099-60040iGDJ150,GRJ150,KDJ150,TRJ150..GCC201708-202312

VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51099-60040iGDJ150,GRJ150,KDJ150,TRJ150..GCC201708-202312

TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME)

main51099-60040iGDJ150,GRJ150,KDJ150,TRJ150..GCC201708-202312

STABILIZER-WITH(KDSS)&SPARE TIRE-WITH(UNDER FRAME)

main51099-60040iGDJ150,GRJ150,KDJ150,TRJ150..GCC201708-202312

SPARE TIRE-WITH(UNDER FRAME)

57683CBRACKET, FUEL TANK MOUNTING

main57683-35031iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

77512ABRACKET, FUEL TANK, REAR

main77512-35121iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

1757667050BRACKET, MUFFLER CLAMP

main17576-67050

9010510114

main90105-10114

91641H0820

main91641-H0820

9167480822

main91674-80822

9167480828

main91674-80828

9167481235

main91674-81235

91674J1020

main91674-J1020

9415011001

main94150-11001

56 parts on this diagram · 1 diagram in section
