FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
STABILIZER-WITH(KDSS)
VX PACKAGE
VX PACKAGE
VX-L PACKAGE
VX PACKAGE
STABILIZER-WITH(KDSS)
VX-L PACKAGE
STABILIZER-WITH(KDSS)
48132SPRING, FRONT COIL, LH
VX-L PACKAGE
STABILIZER-WITH(KDSS)
VX PACKAGE
STABILIZER-WITH(KDSS)
VX PACKAGE
STABILIZER-WITH(KDSS)
VX-L PACKAGE
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-60250,VX-L PACKAGE
MARK 48510-60250,VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60250,CHILE SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUSTEMISSION CONTROL-EURO 5&STABILIZER-WITH(KDSS)
MARK 48510-60250,ARGENTINA SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5&STABILIZER-WITH(KDSS)
MARK 48510-60250
MARK 48510-60250,CHILE SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUSTEMISSION CONTROL-EURO 6&STABILIZER-WITH(KDSS)
MARK 48510-60250,ARGENTINA SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6&STABILIZER-WITH(KDSS)
MARK 48510-60440,FOR EGYPT SPEC
MARK 48510-60222
MARK 48510-60212
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-60250,VX-L PACKAGE
MARK 48510-60250,VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60250,ARGENTINA SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6&STABILIZER-WITH(KDSS)
MARK 48510-60250,CHILE SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUSTEMISSION CONTROL-EURO 5&STABILIZER-WITH(KDSS)
MARK 48510-60250,ARGENTINA SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5&STABILIZER-WITH(KDSS)
MARK 48510-60250,CHILE SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUSTEMISSION CONTROL-EURO 6&STABILIZER-WITH(KDSS)
MARK 48510-60250
MARK 48510-60440,FOR EGYPT SPEC
MARK 48510-60222
MARK 48510-60212
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48597RETAINER, SHOCK ABSORBER CUSHION
VX-L PACKAGE
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
VX-L PACKAGE
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
VX-L PACKAGE
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
STABILIZER-WITH(KDSS)
VX PACKAGE
VX-L PACKAGE
ENGINE-FOR EURO 6C CONFORMITY&STABILIZER-WITH(KDSS)
48815DBUSH, FRONT STABILIZER BAR, RH
VX-L PACKAGE
VX PACKAGE
STABILIZER-WITH(KDSS)
ENGINE-FOR EURO 6C CONFORMITY&STABILIZER-WITH(KDSS)
48815EBUSH, FRONT STABILIZER BAR, LH
VX PACKAGE
STABILIZER-WITH(KDSS)
VX-L PACKAGE
ENGINE-FOR EURO 6C CONFORMITY&STABILIZER-WITH(KDSS)
48820LINK ASSY, FRONT STABILIZER
VX PACKAGE
STABILIZER-WITH(KDSS)
VX-L PACKAGE
ENGINE-FOR EURO 6C CONFORMITY&STABILIZER-WITH(KDSS)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
8419
9010514104
main90105-14104
9017012009
main90170-12009
9017912144
main90179-12144
91674G1028
main91674-G1028
9413001202
main94130-01202
9462241400
main94622-41400

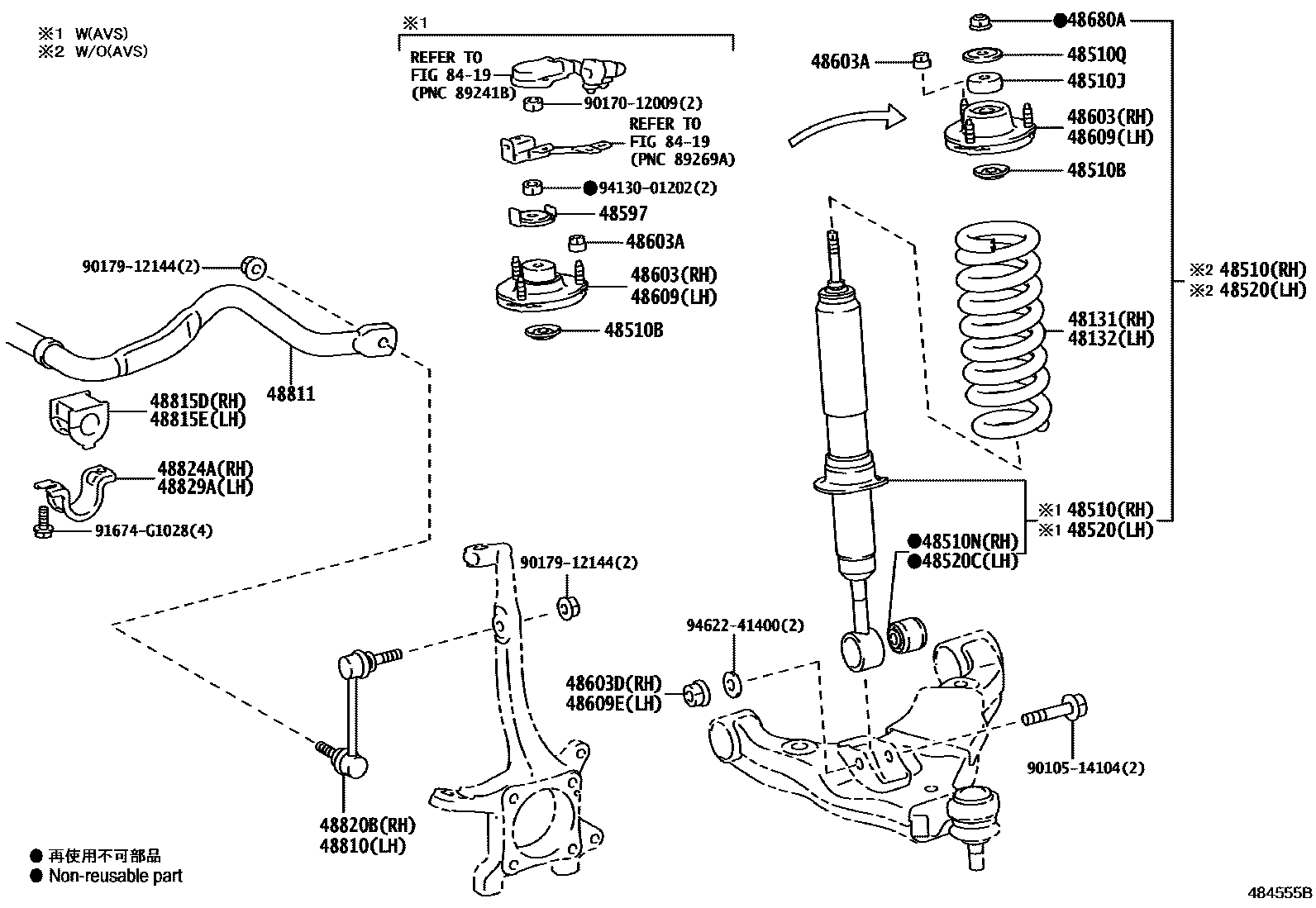

31 parts on this diagram · 5 diagrams in section
