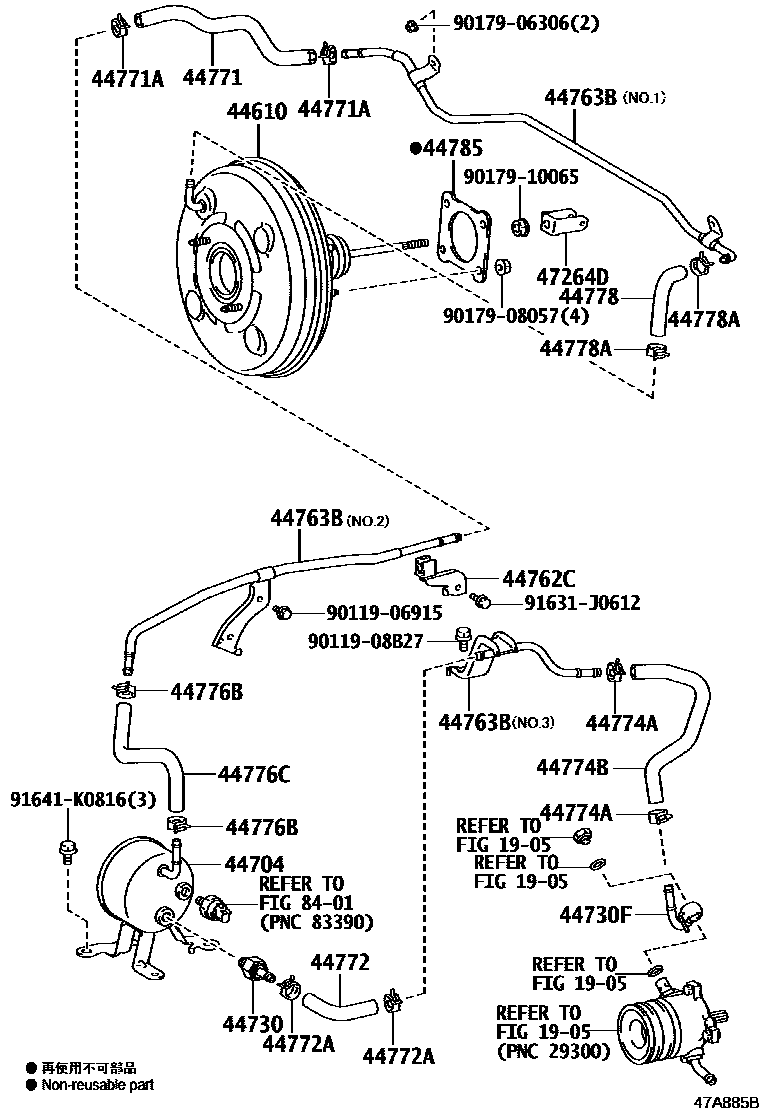

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
44704RESERVOIR SUB-ASSY, VACUUM
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44762CCLAMP, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE HOSE
44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR
NO.1
NO.2
NO.1
NO.2
NO.3
44771HOSE, VACUUM TUBE CONNECTOR
44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44774BHOSE, UNION TO CONNECTOR TUBE
44776BCLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44776CHOSE, VACUUM RESERVOIR TO CONNECTOR
44778HOSE, CONNECTOR TO CHECK VALVE
44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
8401
9011906915
main90119-06915
9011908B27
main90119-08B27
9017906306
main90179-06306
9017908057
main90179-08057
9017910065
main90179-10065
91631J0612
main91631-J0612
91641K0816
main91641-K0816
27 parts on this diagram · 3 diagrams in section
