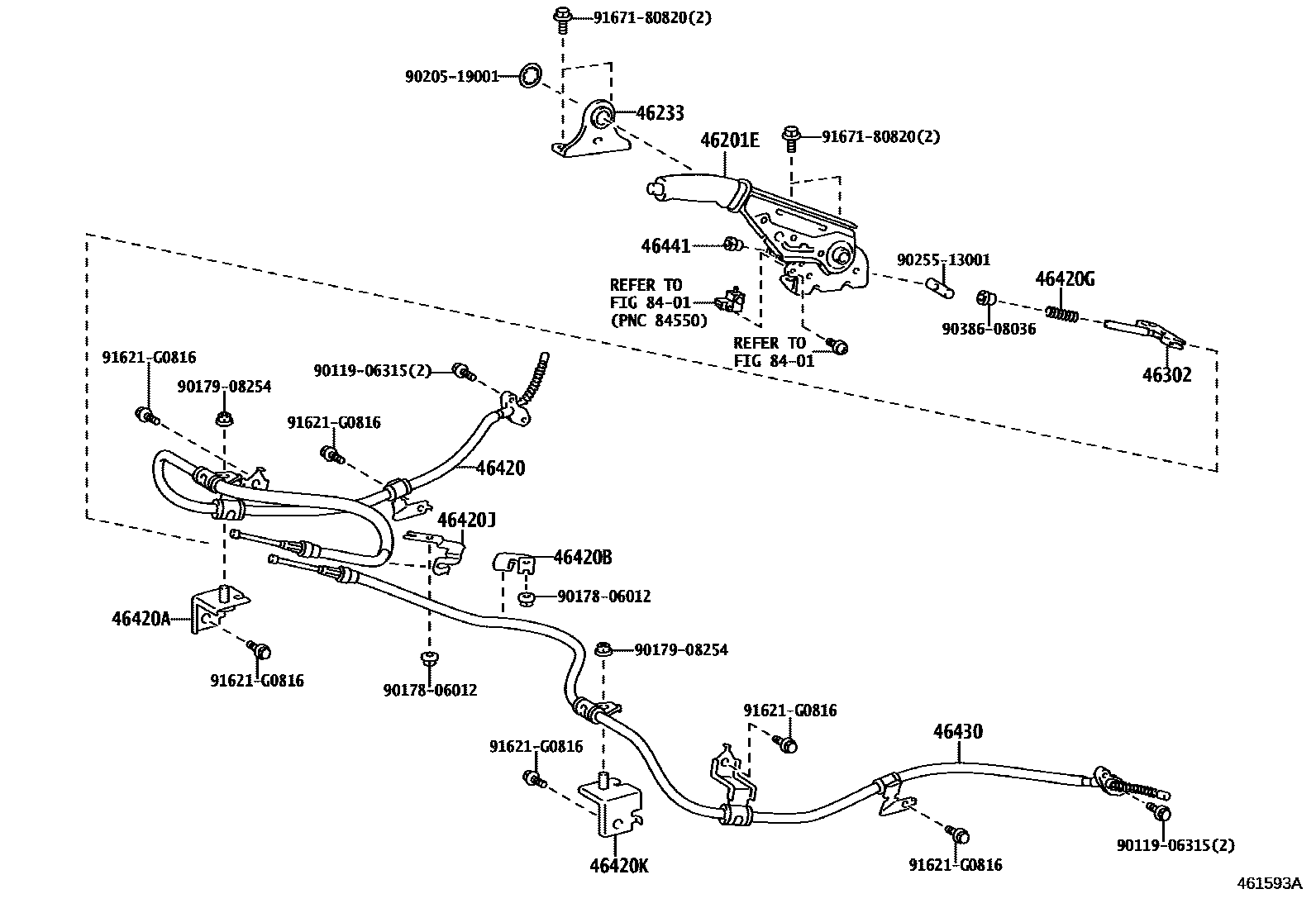

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-60130-C0iGDJ150,KDJ150,LJ150..RHD201708-202312

BLACK,TRIM2#

main46201-60130-E1iGDJ150,KDJ150,LJ150..RHD201708-202312

ORCHID BROWN,TRIM4#

main46201-60141-C0iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*LES & WITH(AVS),BLACK,TRIM2#

main46201-60141-C0iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*LES & WITHOUT(AVS),BLACK,TRIM2#

main46201-60141-C0iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60141-C0iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#

main46201-60141-C0iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60141-C0iGDJ150..ARL,SA;GDJ150,KDJ150,LJ150..RHD..(5F,5FC,6F)..(GEN,SA)201708-202312

BLACK,TRIM2#

main46201-60141-E1iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*LES & WITHOUT(AVS),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ150..6FC..ARL;GDJ150,KDJ150..RHD..(5FC,6F)..GEN201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ150..ARL,SA;GDJ150,KDJ150,LJ150..RHD..(5F,5FC,6F)..(GEN,SA)201708-202312

*LES & WITH(AVS),ORCHID BROWN,TRIM4#

main46201-60150-C0iGRJ150..GEN;GDJ150,KDJ150,LJ150,TRJ15#..LHD201708-202312

BLACK,TRIM2#

main46201-60150-E1iGRJ150..GEN;GDJ150,KDJ150,LJ150,TRJ15#..LHD201708-202312

ORCHID BROWN,TRIM4#

main46201-60161-C0iTRJ155;GRJ150..6F..GEN;GDJ150,KDJ150,LJ150,TRJ150..LHD..(5F,5FC,6F)201708-202312

*LES & WITHOUT(AVS),BLACK,TRIM2#,41

main46201-60161-C0iTRJ155;GRJ150..6F..GEN;GDJ150,KDJ150,LJ150,TRJ150..LHD..(5F,5FC,6F)201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#,41

main46201-60161-C0iTRJ155;GRJ150..6F..GEN;GDJ150,KDJ150,LJ150,TRJ150..LHD..(5F,5FC,6F)201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60161-C0iTRJ155;GRJ150..6F..GEN;GDJ150,KDJ150,LJ150,TRJ150..LHD..(5F,5FC,6F)201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#,41

main46201-60161-C0iTRJ155;GRJ150..6F..GEN;GDJ150,KDJ150,LJ150,TRJ150..LHD..(5F,5FC,6F)201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#,41

main46201-60161-C0iTRJ155;GRJ150..6F..GEN;GDJ150,KDJ150,LJ150,TRJ150..LHD..(5F,5FC,6F)201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60161-C0iGRJ150..6FC..GCC201708-202312

BLACK,TRIM2#,41

main46201-60161-C0iGRJ150..6FC..GCC201708-202312

BLACK,TRIM2#

main46201-60161-C0iGRJ150..6FC..GCC201708-202312

*LES & WITH(AVS),BLACK,TRIM2#,41

main46201-60161-E1iGRJ150..6FC..GEN;GDJ150,TRJ150..LHD..6FC201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

ORCHID BROWN,TRIM40

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

ORCHID BROWN,TRIM4#

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

*LES & WITH(AVS),ORCHID BROWN,TRIM40

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

*LES & WITHOUT(AVS),ORCHID BROWN,TRIM40

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM40

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM40

main46201-60161-E1iGRJ150..6FC..GCC201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM40

46233SUPPORT, PARKING BRAKE CENTER

main46233-60040iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-60010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-60101iTRJ155201708

main46420-60112iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-60040iTRJ155201708

main46421-60060iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-60010iTRJ155201708

main46431-60060iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-10239iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46421-60070iTRJ155201708

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46431-60040iTRJ155201708

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-60021iTRJ155201708

main46430-60042iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

46441NUT, WIRE ADJUSTING, NO.1

main46441-60010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

8401

9011906315

main90119-06315

9017806012

main90178-06012

9017908254

main90179-08254

9020519001

main90205-19001

9025513001

main90255-13001

9038608036

main90386-08036

91621G0816

main91621-G0816

9167180820

main91671-80820

20 parts on this diagram · 3 diagrams in section
