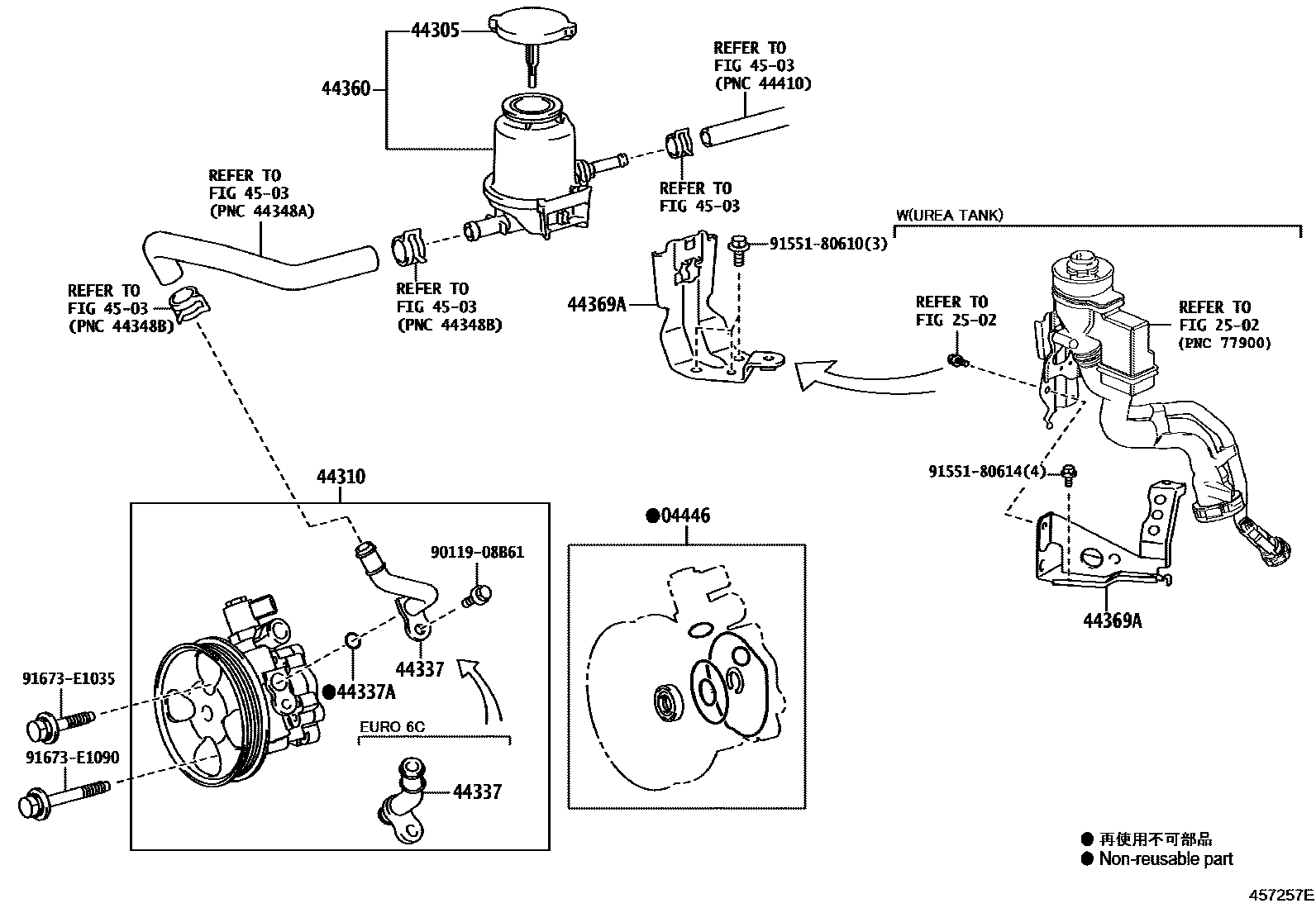

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGDJ150,TRJ15#¥970201708-202312

main04446-35070iKDJ150¥1,280201708-202007

main04446-53030iLJ150¥1,360201708-202312

main04446-60260iGRJ150¥720201708-202312

2502

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22061iTRJ15#¥1,240201708-202312

main44305-28061iGDJ150,GRJ150,KDJ150,LJ150¥1,090201708-202312

44310PUMP ASSY, VANE

main44310-60541iGRJ150¥78,900201708-202002

sub44310-60542¥65,700

main44310-60542iGRJ150¥65,700202003-202312

main44310-60551iKDJ150201708-202002

sub44310-60552

main44310-60552iKDJ150202003-202007

main44310-60562iTRJ15#¥87,400201708-202002

sub44310-60563¥72,800

main44310-60563iTRJ15#¥72,800202003-202312

main44310-60660iGDJ150¥78,900201708-202002

sub44310-60661¥65,700

main44310-60661iGDJ150¥65,700202003-202312

main44320-60360iLJ150¥56,600201708-202312

44337UNION, POWER STEERING SUCTION PORT

main44337-35070iLJ150¥1,030201708-202312

main44337-60230iGRJ150¥1,180201708-202312

main44337-60240iKDJ150201708-202007

main44337-60260iGDJ150¥1,430201708-202312

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iLJ150¥140201708-202312

main90301-11020iGDJ150,KDJ150¥140201708-202312

main90301-15025iGRJ150¥140201708-202312

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60321iGRJ150¥7,100201708-202312

main44360-60331iKDJ150,LJ150201708-202312

main44360-60340iGDJ150¥7,100201708-202312

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-60080iGRJ150¥2,080201708-202312

main44369-60090iKDJ150,LJ150201708-202312

main44369-60100iGDJ150¥2,090201708-202312

4503

9011908B61

main90119-08B61¥60

9155180610

main91551-80610¥60

9155180614

main91551-80614¥60

91673E1035

main91673-E1035¥120

91673E1090

main91673-E1090¥190

14 parts on this diagram · 5 diagrams in section
