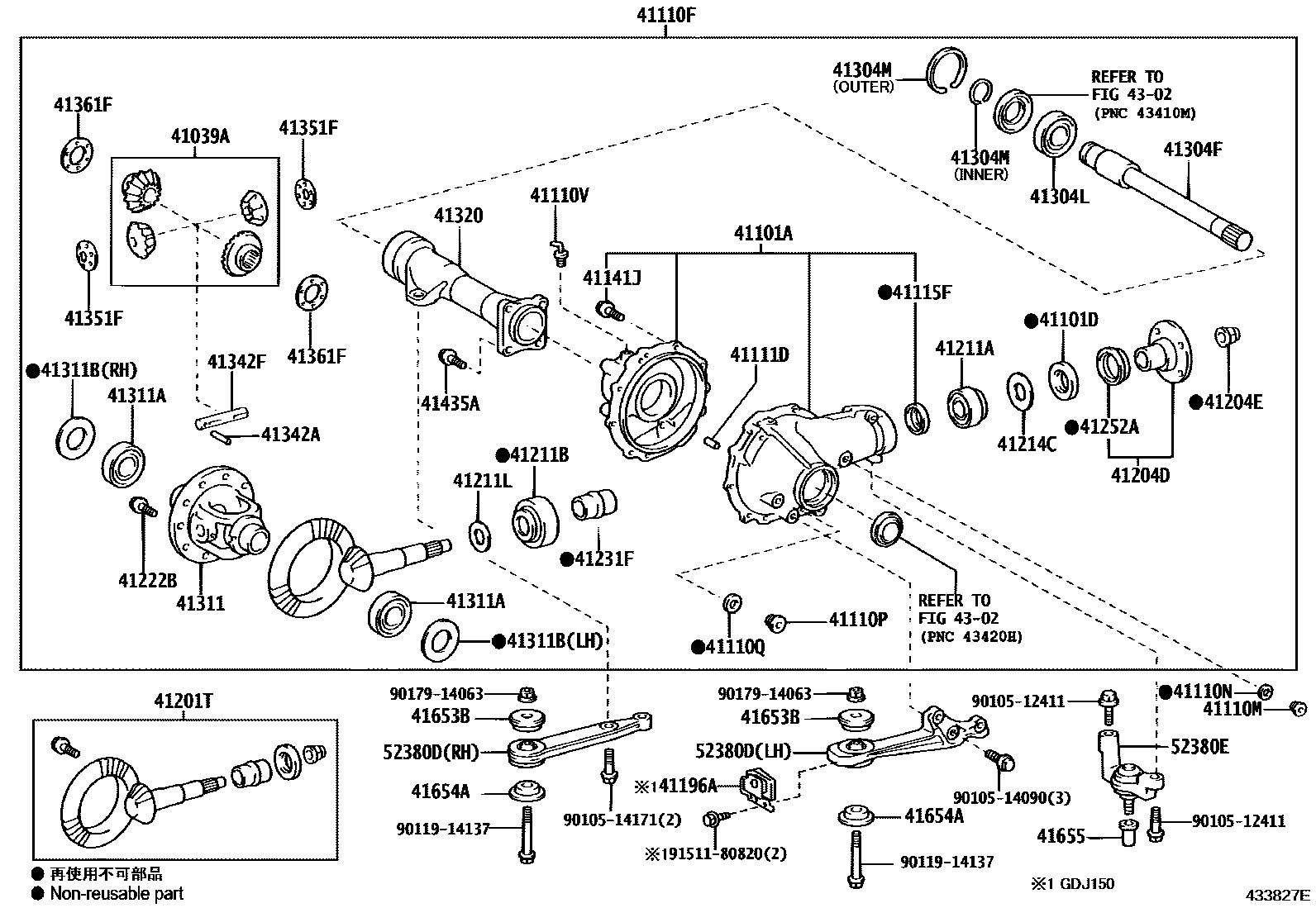

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41039AGEAR KIT, DIFFERENTIAL

main41039-35010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35220iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-41015iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-3D432iGRJ150,KDJ150201708-202312

*FGR=43:11=3.909

main41110-3D462iLJ150,TRJ150..5F201708-202312

*FGR=41:9=4.555

main41110-60C80iTRJ15#..6FC201708-202312

*FGR=43:9=4.777

main41110-60C90iGDJ150..6F201708-202312

*FGR=41:11=3.727

main41110-60D00iGDJ150..6FC201708-202312

*FGR=43:11=3.909

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202105

sub90430-24017

main90430-24017iGDJ150,GRJ150,LJ150,TRJ15#202105-202312

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004iGRJ150,KDJ150,LJ150,TRJ15#201708-202312

main90405-08032iGDJ150201708-202312

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-35010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-10391iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

*10-1.25PX24.5-18

41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC

main41196-60060iGDJ150201708-202312

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80783iTRJ15#..6FC201708-202312

*FGR=43:9=4.777

main41201-80785iGDJ150..6FC;GRJ150,KDJ150201708-202312

*FGR=43:11=3.909

main41201-80791iGDJ150..6F201708-202312

*FGR=41:11=3.727

main41201-80796iLJ150,TRJ150..5F201708-202312

*FGR=41:9=4.555

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-71030iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90177-22003iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30067iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202309

main90366-30129iGDJ150,GRJ150,LJ150,TRJ15#202309-202312

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-35087iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)

main90201-35497iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.70

main90201-35498iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.73

main90201-35499iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.76

main90201-35500iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.79

main90201-35501iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.82

main90201-35502iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.85

main90201-35503iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.88

main90201-35504iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.91

main90201-35505iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.94

main90201-35506iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=1.97

main90201-35507iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.00

main90201-35508iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.03

main90201-35509iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.06

main90201-35510iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.09

main90201-35511iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.12

main90201-35512iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.15

main90201-35513iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.18

main90201-35514iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.21

main90201-35515iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.24,MARK 01

main90201-35516iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.27,MARK 02

main90201-35517iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.30,MARK 03

main90201-35518iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201812-202312

OD=47,T=2.33,MARK 04

main90564-35109iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.70

main90564-35110iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.73

main90564-35111iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.76

main90564-35112iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.79

main90564-35113iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.82

main90564-35114iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.85

main90564-35115iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.88

main90564-35116iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.91

main90564-35117iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.94

main90564-35118iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=1.97

main90564-35119iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.00

main90564-35120iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.03

main90564-35121iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.06

main90564-35123iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.09

main90564-35124iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.12

main90564-35125iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.15

main90564-35126iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.18

main90564-35127iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.21

main90564-35128iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.24

main90564-35129iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.27

main90564-35130iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.30

main90564-35131iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OD=52,T=2.33

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26011iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90901-05002iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-35040iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-71030iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35050iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-43001iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-41014iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

INNER

main90520-75002iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

OUTER

41311CASE, FRONT DIFFERENTIAL

main41311-35090iGRJ150,KDJ150;GDJ150,LJ150,TRJ15#..5F,6FC201708-202312

main41311-35100iGDJ150..6F201708-202312

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-53001iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50124iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.60,LH

main90564-50126iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.66,LH

main90564-50128iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.72,LH

main90564-50130iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.78,LH

main90564-50132iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.84,LH

main90564-50134iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.90,LH

main90564-50136iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.96,LH

main90564-50138iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.02,LH

main90564-50140iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.08,LH

main90564-50142iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.14,LH

main90564-50154iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.60,RH

main90564-50156iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.66,RH

main90564-50158iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.72,RH

main90564-50160iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.78,RH

main90564-50162iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.84,RH

main90564-50164iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.90,RH

main90564-50166iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.96,RH

main90564-50168iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.02,RH

main90564-50170iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.08,RH

main90564-50172iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.14,RH

main90564-50184iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.58,LH

main90564-50185iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.62,LH

main90564-50186iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.64,LH

main90564-50187iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.68,LH

main90564-50188iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.70,LH

main90564-50189iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.74,LH

main90564-50190iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.76,LH

main90564-50191iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.80,LH

main90564-50192iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.82,LH

main90564-50193iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.86,LH

main90564-50194iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.88,LH

main90564-50195iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.92,LH

main90564-50196iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.94,LH

main90564-50197iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.98,LH

main90564-50198iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.00,LH

main90564-50199iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.04,LH

main90564-50200iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.06,LH

main90564-50201iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.10,LH

main90564-50202iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.12,LH

main90564-50203iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.16,LH

main90564-50204iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.58,RH

main90564-50205iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.62,RH

main90564-50206iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.64,RH

main90564-50207iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.68,RH

main90564-50208iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.70,RH

main90564-50209iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.74,RH

main90564-50210iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.76,RH

main90564-50211iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.80,RH

main90564-50212iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.82,RH

main90564-50213iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.86,RH

main90564-50214iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.88,RH

main90564-50215iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.92,RH

main90564-50216iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.94,RH

main90564-50217iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.98,RH

main90564-50218iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.00,RH

main90564-50219iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.04,RH

main90564-50220iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.06,RH

main90564-50221iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.10,RH

main90564-50222iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.12,RH

main90564-50223iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.16,RH

main90564-50224iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.44,RH

main90564-50225iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.46,RH

main90564-50226iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.48,RH

main90564-50227iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.50,RH

main90564-50228iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.52,RH

main90564-50229iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.54,RH

main90564-50230iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.56,RH

main90564-50231iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.18,LH

main90564-50232iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.20,LH

main90564-50233iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.22,LH

main90564-50234iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.24,LH

main90564-50235iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.26,LH

main90564-50236iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.28,LH

main90564-50237iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=2.30,LH

41320TUBE ASSY, FRONT DIFFERENTIAL

main41321-35050iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-53020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-35030iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-34010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.50

main41361-34020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.55

main41361-34030iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.60

main41361-34040iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.65

main41361-34050iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.70

main41361-34060iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.75

main41361-34070iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.80

main41361-34080iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.85

main41361-34090iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

T=1.90

41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)

main90107-12003iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

*12-1.25PX24-16.5

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-60030iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-60010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-60020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

4302

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main52380-60100iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

LH

main52380-60110iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

RH

52380ESUPPORT ASSY, DIFFERENTIAL

main52380-60120iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

9010512411

main90105-12411

9010514090

main90105-14090

9010514171

main90105-14171

9011914137

main90119-14137

9017914063

main90179-14063

9151180820

main91511-80820

47 parts on this diagram · 3 diagrams in section
