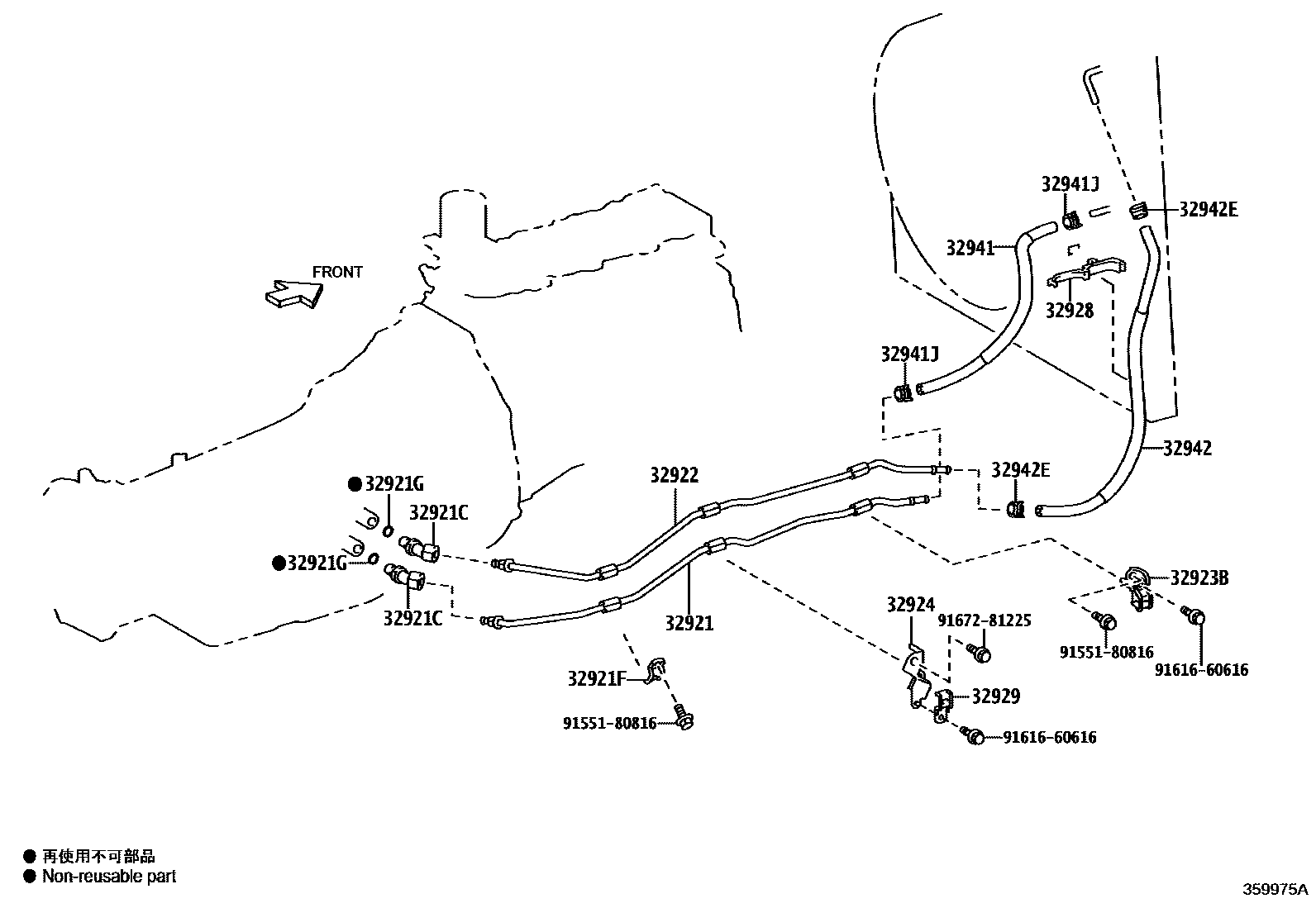

OIL COOLER & TUBE (ATM)
32921TUBE, OIL COOLER INLET, NO.1
ENGINE-FOR EURO 5 & 6 CONFORMITY
32921CUNION(FOR OIL COOLER TUBE)
32921FCLAMP(FOR OIL COOLER TUBE)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922TUBE, OIL COOLER OUTLET, NO.1
ENGINE-FOR EURO 5 & 6 CONFORMITY
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
ENGINE-FOR EURO 5 & 6 CONFORMITY
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32924CLAMP, OIL COOLER TUBE, NO.2
32928CLAMP, FLEXIBLE HOSE, NO.1
32929CLAMP, FLEXIBLE HOSE, NO.2
32941HOSE, OIL COOLER INLET, NO.1
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
ENGINE-FOR EURO 5 & 6 CONFORMITY
32942HOSE, OIL COOLER OUTLET, NO.1
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
ENGINE-FOR EURO 5 & 6 CONFORMITY
9155180816
main91551-80816
9161660616
main91616-60616
9167281225
main91672-81225
17 parts on this diagram · 6 diagrams in section
