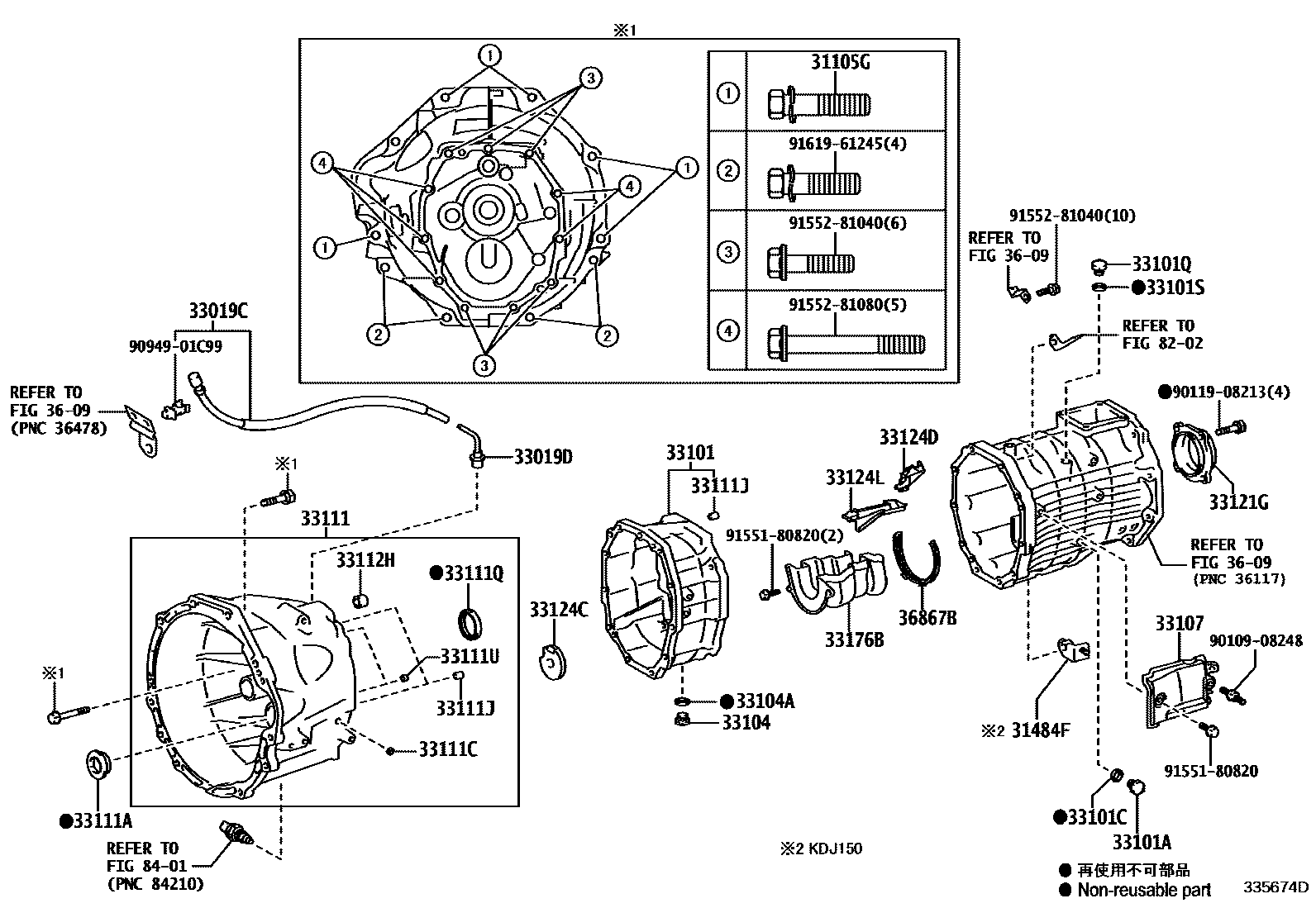

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1RA61F 0002 1RA61F 0003 1G52F 0004 1R150F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91619-61250iGDJ150,GRJ150,KDJ150..6F201708-202312

*12-1.25PX50-30

31484FBRACKET, CLUTCH TUBE

main31484-60410iKDJ150..6F201708-202007

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-60100iGDJ150,KDJ150..6F201708-202312

main33019-60110iGRJ150..6F201708-202312

main33019-60120iLJ150201708-202312

main33019-60130iTRJ150..5F201708-202312

33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)

main90412-05008iGDJ150,GRJ150,KDJ150..6F201708-202312

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33106-60010iGDJ150,GRJ150,KDJ150..6F201708-202312

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLJ150,TRJ150..5F201708-202312

main90341-18033iGDJ150,GRJ150,KDJ150..6F201708-202312

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..MTM201708-202312

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-18032iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..MTM201708-202312

33101SGASKET(FOR TRANSMISSION CASE PLUG NO.1)

main90430-18008iGRJ150,LJ150,TRJ150..MTM201708-202312

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iTRJ150..5F201708-202312

main90341-18057iGDJ150,GRJ150,KDJ150,LJ150..MTM201708-202312

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..MTM201708-202312

33107COVER SUB-ASSY, TRANSMISSION, UPPER

main33107-60020iGDJ150,GRJ150,KDJ150..6F201708-202312

33111CASE, MANUAL TRANSMISSION

main33101-60041iTRJ150..5F201708-202312

main33101-60150iGDJ150,KDJ150..6F201708-202312

main33101-60160iGRJ150..6F201708-202312

main33101-71020iLJ150201708-202312

33111APLUG, MANUAL TRANSMISSION CASE

main90341-42001iGDJ150,GRJ150,KDJ150..6F201708-202312

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iTRJ150..5F201708-202312

OD=14,NO.2:REFER ILLUST.

main90331-14004iTRJ150..5F201708-202312

OD=14

main96411-41000iGDJ150,GRJ150,KDJ150..6F201708-202312

OD=10

main96411-41800iTRJ150..5F201708-202312

OD=18,NO.1:REFER ILLUST.

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10232iGDJ150,GRJ150,KDJ150..6F201708-202312

L=15,OD=8

main90250-12002iTRJ150..5F201708-202312

L=16,OD=12

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34029iGDJ150,GRJ150,KDJ150..6F201708-202312

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11021iGDJ150,GRJ150,KDJ150..6F201708-202312

L=8,OD=11

main90253-15001iLJ150201708-202312

L=14,OD=15

33112HBEARING, TRANSMISSION CASE NEEDLE

main90364-18011iGDJ150,GRJ150,KDJ150..6F201708-202312

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-35110iGDJ150,GRJ150,KDJ150..6F201708-202312

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-35130iGDJ150,GRJ150,KDJ150..6F201708-202312

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-35140iGDJ150,GRJ150,KDJ150..6F201708-202312

33124LPIPE, OIL RECEIVER, N0.3(MTM)

main33124-35121iGDJ150,GRJ150,KDJ150..6F201708-202312

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-35030iGDJ150,GRJ150,KDJ150..6F201708-202312

3609

36867BSEAL, PACKING (FOR OIL SEPARATOR)

main36867-35010iGDJ150,GRJ150,KDJ150..6F201708-202312

8202

8401

9010908248

main90109-08248

9011908213

main90119-08213

9094901C99

main90949-01C99

9155180820

main91551-80820

9155281040

main91552-81040

9155281080

main91552-81080

9161961245

main91619-61245

35 parts on this diagram · 4 diagrams in section
