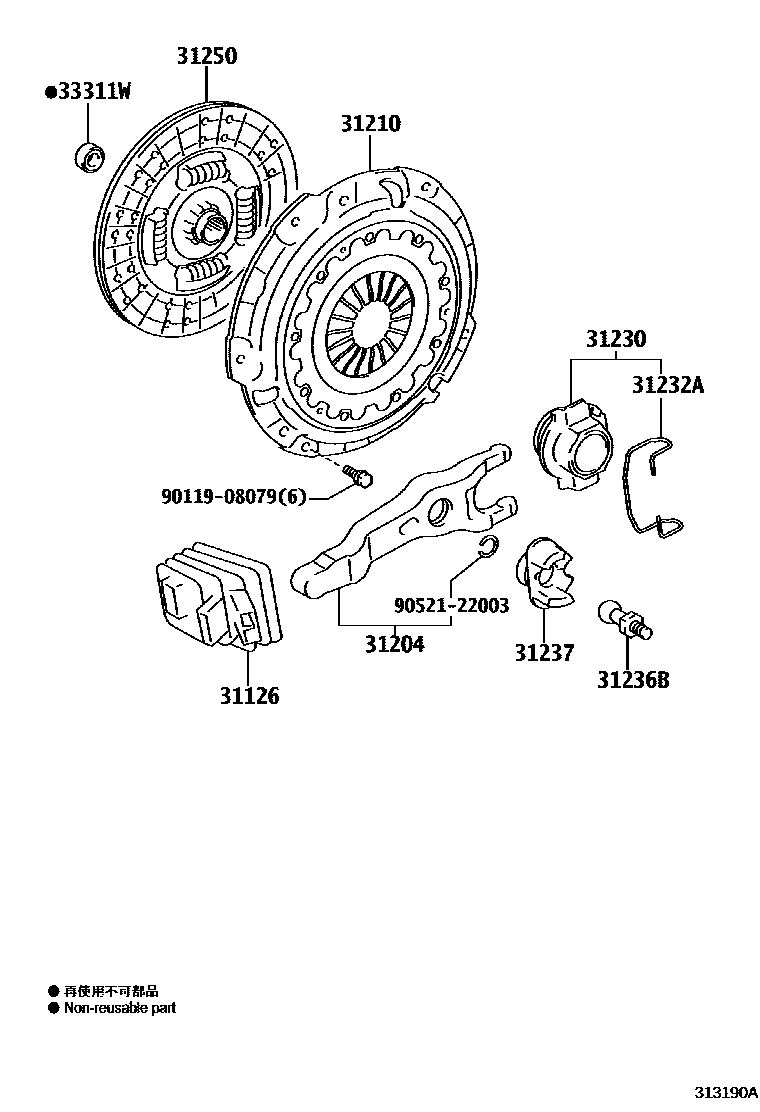

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36080iTRJ150..5F201708-202312

main31126-60100iGDJ150,KDJ150..6F201708-202312

main31126-60110iLJ150201708-202312

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iTRJ150..5F201708-202312

main31204-35050iLJ150201708-202312

main31204-35060iGRJ150..6F201708-202312

main31204-60170iGDJ150,KDJ150..6F201708-202312

31210COVER ASSY, CLUTCH

main31210-26164iLJ150201708-202312

main31210-26172iTRJ150..5F201708-202312

main31210-60280iGRJ150..6F201708-202312

main31210-60350iGDJ150,KDJ150..6F201708-202312

31230BEARING ASSY, CLUTCH RELEASE

main31230-35061iLJ150201708-202312

main31230-35071iTRJ150..5F201708-202312

main31230-60241iGRJ150..6F201708-202312

main31230-60270iGDJ150,KDJ150..6F201708-202312

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLJ150,TRJ150..5F201708-202312

TYPE A:REFER ILLUST.

main31232-35030iLJ150,TRJ150..5F201708-202312

TYPE B:REFER ILLUST.

main31232-60050iGRJ150..6F201708-202312

main31232-60060iGDJ150,KDJ150..6F201708-202312

31236BSUPPORT, RELEASE FORK

main31236-20080iGDJ150,KDJ150..6F201708-202312

main31236-26010iLJ150201708-202312

main31236-35030iTRJ150..5F201708-202312

main31236-35050iGRJ150..6F201708-202312

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-20010iGDJ150,KDJ150..6F201708-202312

main31237-60010iGRJ150..6F201708-202312

31250DISC ASSY, CLUTCH

main31250-26221iLJ150201708-201709

main31250-26222iLJ150201709-202312

main31250-35451iGRJ150..6F201708-201802

main31250-35452iGRJ150..6F201802-202312

main31250-60382iGDJ150,KDJ150..6F201708-201802

main31250-60383iGDJ150,KDJ150..6F201802-202312

main31250-60500iTRJ150..5F201708-201711

main31250-60501iTRJ150..5F201711-202312

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iGDJ150,KDJ150,LJ150..MTM201708-201808

main90363-12020iTRJ150..5F201708-202312

main90363-12024iGDJ150,KDJ150,LJ150..MTM201808-202312

9011908079

main90119-08079

9052122003

main90521-22003

11 parts on this diagram · 4 diagrams in section
