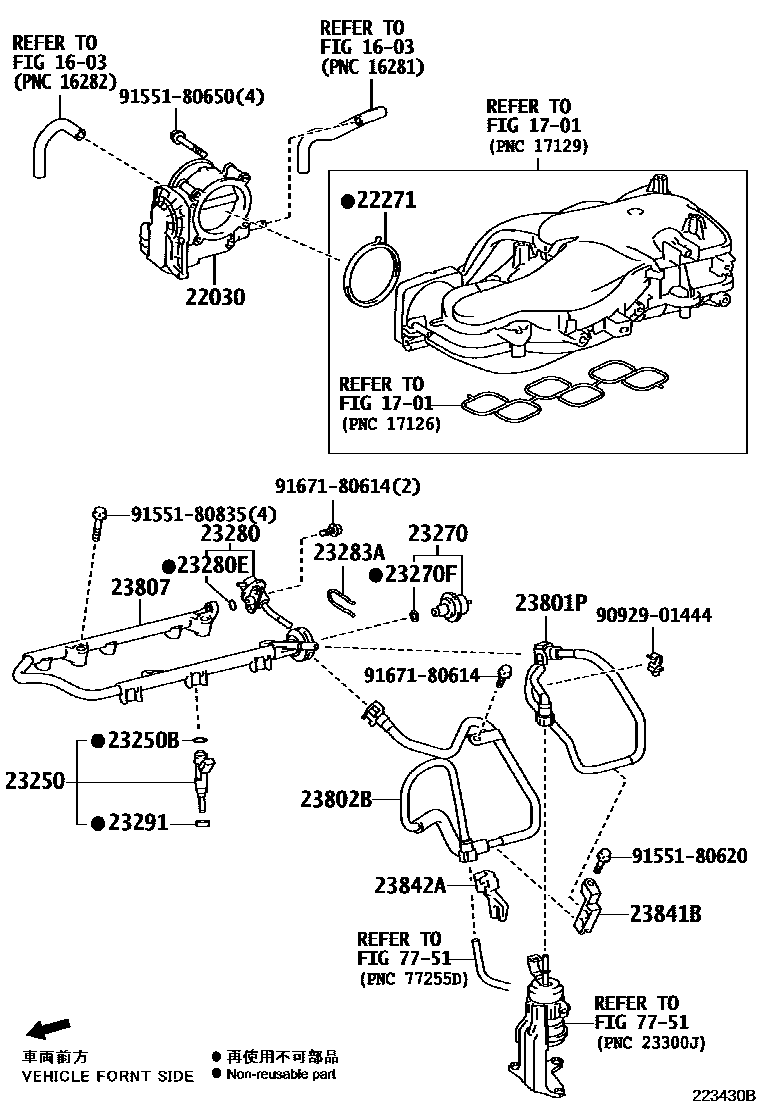

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31060i1GRFE..GRJ150201708-202312

main22030-75040i2TRFE..TRJ15#201708-202312

22271GASKET, THROTTLE BODY

main22271-31040i1GRFE..GRJ150201708-202312

main22271-75070i2TRFE..TRJ15#201708-202312

23250INJECTOR ASSY, FUEL

main23209-39215×6i1GRFE..GRJ150201708-202212

main23209-39445×6i1GRFE..GRJ150202212-202312

main23209-79215×4i2TRFE..TRJ15#201708-202312

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i1GRFE..GRJ150201708-202312

main90301-07037×4i2TRFE..TRJ15#201708-202312

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31140i1GRFE..GRJ150201708-202312

main23270-75050i2TRFE..TRJ15#201708-202312

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GRJ150201708-202312

main90301-07037i2TRFE..TRJ15#201708-202312

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31051i1GRFE..GRJ150201708-202312

main23280-75100i2TRFE..TRJ15#201708-202312

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07034i1GRFE..GRJ150201708-202312

main90301-07037i2TRFE..TRJ15#201708-202312

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GRJ150201708-202312

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i1GRFE..GRJ150201708-202312

main23291-73010×4i2TRFE..TRJ15#201708-202312

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31160i1GRFE..GRJ150201708-202312

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31110i1GRFE..GRJ150201708-202312

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31120i1GRFE..GRJ150201708-202312

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31080i1GRFE..GRJ150201708-202312

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-50010i1GRFE..GRJ150201708-202312

7751

9092901444

main90929-01444

9155180620

main91551-80620

9155180650

main91551-80650

9155180835

main91551-80835

9167180614

main91671-80614

23 parts on this diagram · 2 diagrams in section
