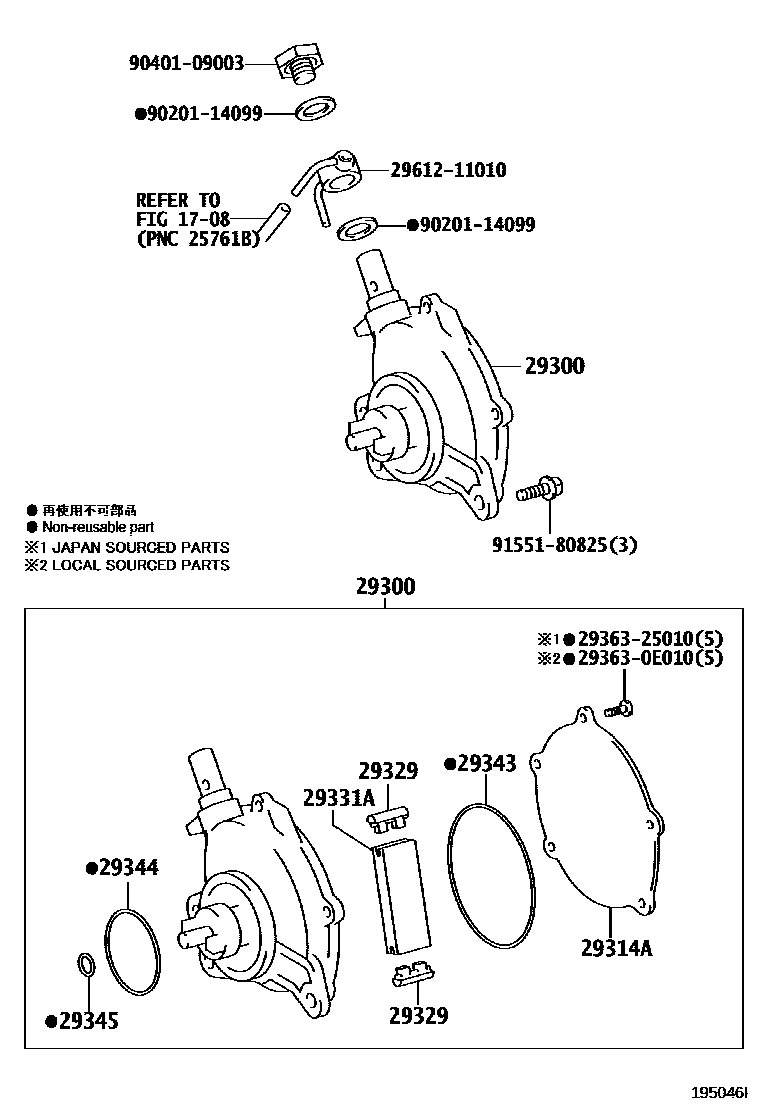

VACUUM PUMP

0001 1 0002 1 0003 1

1708

29300PUMP ASSY, VACUUM

main29300-11020i1GDFTV..GDJ150201708-201807

main29300-11021i1GDFTV..GDJ150201807-202307

main29300-30020i1KDFTV..KDJ150201708-202007

main29300-35010i1GDFTV..GDJ150202308-202312

main29300-54150i5LE..LJ150201708-202312

29314RING, STOP

main29314-64030i5LE..LJ150201708-202312

29314ACOVER, END

main29314-0E010i1GDFTV..GDJ150201810-202312

(L)

main29314-11020i1GDFTV..GDJ150201807-202308

(J)

29329CAP, VACUUM PUMP VANE

main29329-0E010×2i1GDFTV..GDJ150201810-202312

(L)

main29329-37010×2i1GDFTV..GDJ150201807-202308

(J)

29331BLADE, VACUUM PUMP, A

main29331-54130×5i5LE..LJ150201708-202312

main29331-67020×5i1KDFTV..KDJ150201708-202007

29331AVANE, VACUUM PUMP

main29331-0E010i1GDFTV..GDJ150201810-202312

(L)

main29331-11020i1GDFTV..GDJ150201807-202308

(J)

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i1GDFTV..GDJ150201810-202312

(L)

main29343-11020i1GDFTV..GDJ150201708-201807

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i1GDFTV..GDJ150201810-202312

(L)

main29344-22011i1GDFTV..GDJ150201708-201807

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i1GDFTV..GDJ150201810-202312

(L)

main29345-22011i1GDFTV..GDJ150201708-201807

293630E010SCREW, HOLLOW VACUUM PUMP

main29363-0E010

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

2961211010CONNECTOR, VACUUM PUMP

main29612-11010

9020114099

main90201-14099

9040109003

main90401-09003

9155180825

main91551-80825

16 parts on this diagram · 3 diagrams in section
