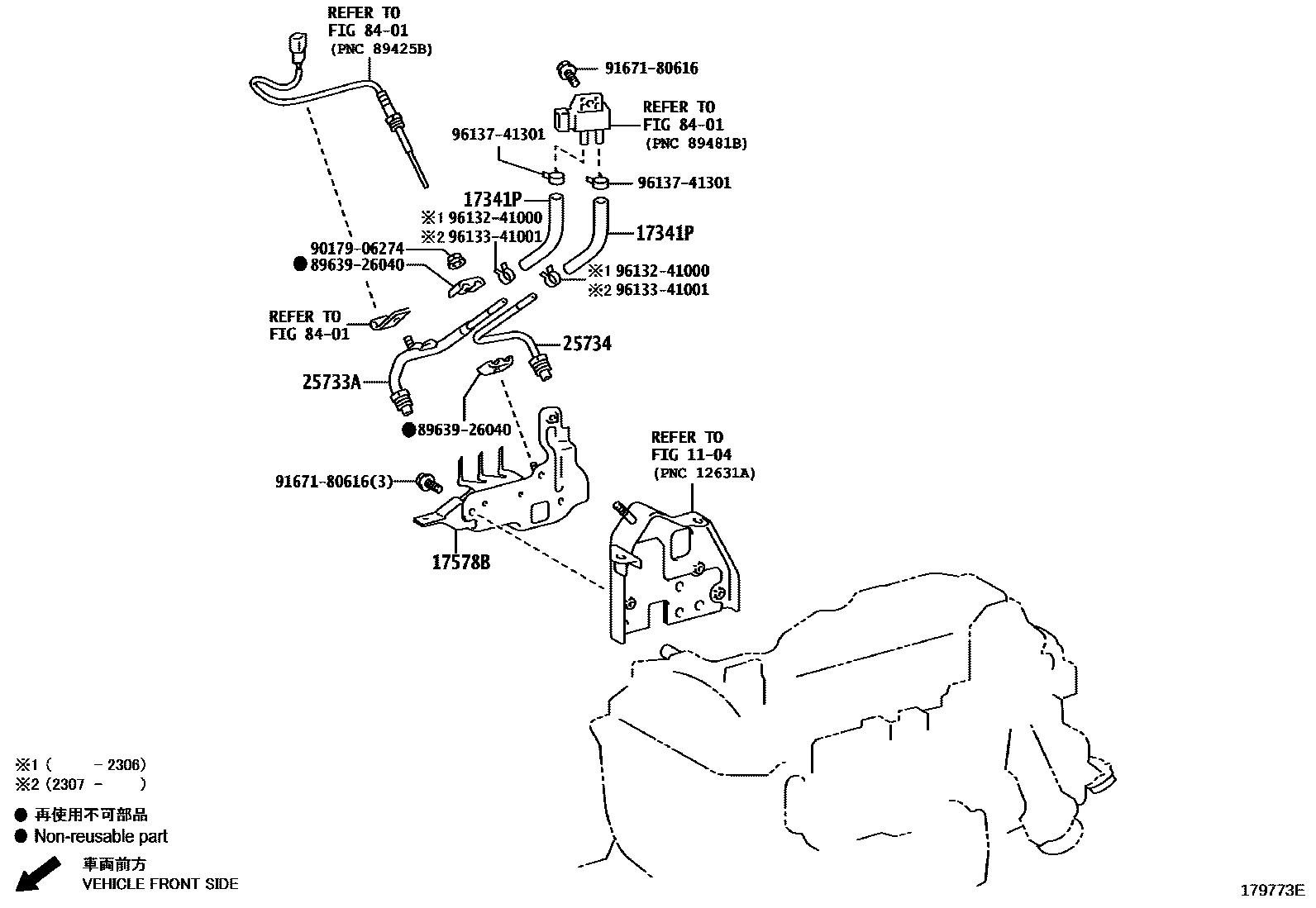

VACUUM PIPING
1104
17341PHOSE, AIR
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO6 D
GCC SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY
ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5
17578BCLAMP, PIPE
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO6 D
ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5
GCC SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
25733APIPE, VACUUM, NO.1
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
(L)
ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5,(L)
GCC SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY,(L)
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO6 D,(L)
ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5,(J)
sub25733-0E010
25734PIPE, VACUUM, NO.2
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
GCC SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY,(L)
ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO6 D,(L)
(L)
ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5,(L)
ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5,(J)
sub25734-0E010
8401
8963926040WIRE, BRAKE CONTROL
main89639-26040
9017906274
main90179-06274
9167180616
main91671-80616
9613241000
main96132-41000
9613341001
main96133-41001
9613741301
main96137-41301
12 parts on this diagram · 9 diagrams in section
