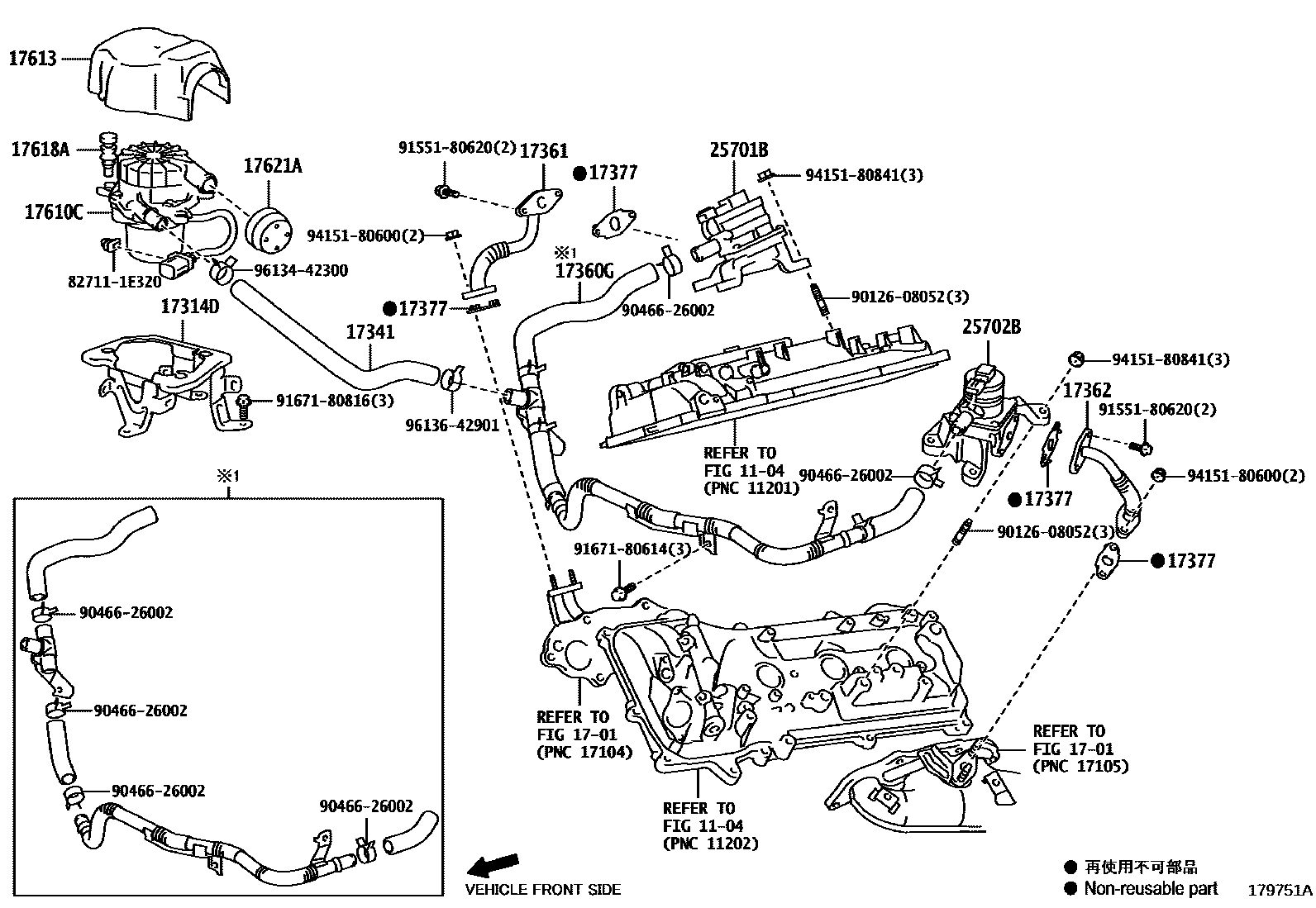

MANIFOLD AIR INJECTION SYSTEM
1104
1701
17314DBRACKET, AIR PUMP, NO.1
CHILE SPEC
ARGENTINA SPEC
ENGINE-FOR EURO 3-1 CONFORMITY
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
CHILE SPEC
ARGENTINA SPEC
ENGINE-FOR EURO 3-1 CONFORMITY
17360GTUBE ASSY, AIR
ARGENTINA SPEC
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
17361TUBE, AIR
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
17362TUBE, AIR, NO.2
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
17377GASKET, AIR TUBE, NO.2
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
17610CPUMP ASSY, AIR
ARGENTINA SPEC
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ENGINE-FOR EURO 5 CONFORMITY
COLOMBIA SPEC
17613COVER, AIR PUMP
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
ENGINE-FOR EURO 5 CONFORMITY
COLOMBIA SPEC
17618AINSULATOR, AIR PUMP
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
17621AINLET, AIR PUMP
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
25701BVALVE SET, EMISSION CONTROL, NO.1
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
25702BVALVE SET, EMISSION CONTROL, NO.2
ENGINE-FOR EURO 3-1 CONFORMITY
CHILE SPEC
ARGENTINA SPEC
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9012608052
main90126-08052
9046626002
main90466-26002
9155180620
main91551-80620
9167180614
main91671-80614
9167180816
main91671-80816
9415180600
main94151-80600
9415180841
main94151-80841
9613442300
main96134-42300
9613642901
main96136-42901
24 parts on this diagram · 2 diagrams in section
