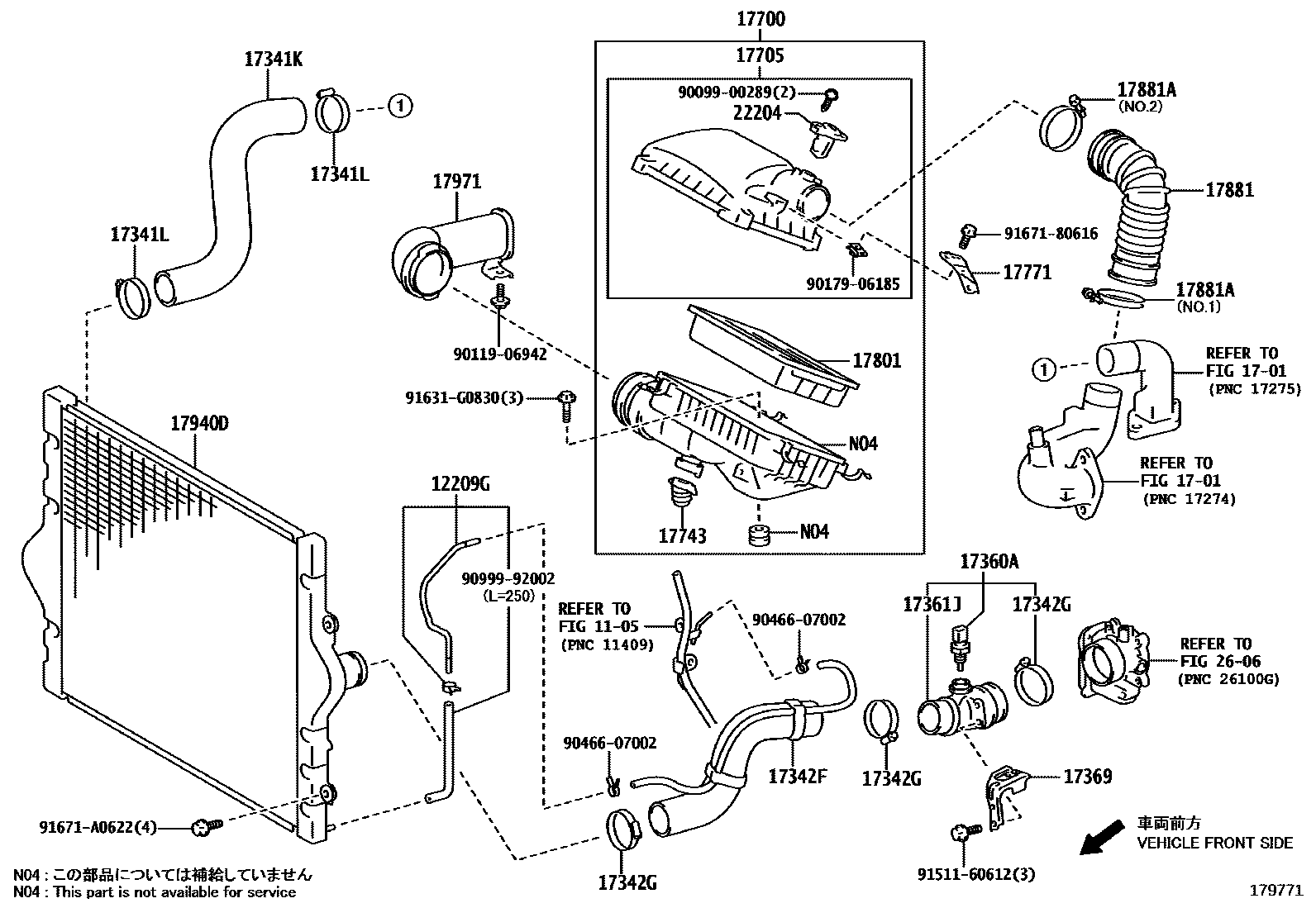

AIR CLEANER
1105
12209GPIPE SUB-ASSY, OIL RETURN
EXHAUST EMISSION CONTROL-EURO6 D
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
1701
17341KHOSE, AIR, NO.1(FOR INTERCOOLER)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6 D
17341LCLAMP, HOSE
17342FHOSE, AIR, NO.2(FOR INTERCOOLER)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6 D
17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)
17360ATUBE ASSY, AIR
17361JTUBE, AIR, NO.1
17369BRACKET, AIR TUBE SUPPORT
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17743VALVE, DUST RELIEF
17771BRACKET, AIR CLEANER INLET DUCT
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
NO.2
17940DINTERCOOLER ASSY
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6 D
EXHAUST EMISSION CONTROL-EURO6 D
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
MARK 22204-28010
2606
9009900289
main90099-00289
9011906942
main90119-06942
9017906185
main90179-06185
9046607002
main90466-07002
9099992002
main90999-92002
9151160612
main91511-60612
91631G0830
main91631-G0830
9167180616
main91671-80616
91671A0622
main91671-A0622
30 parts on this diagram · 7 diagrams in section
