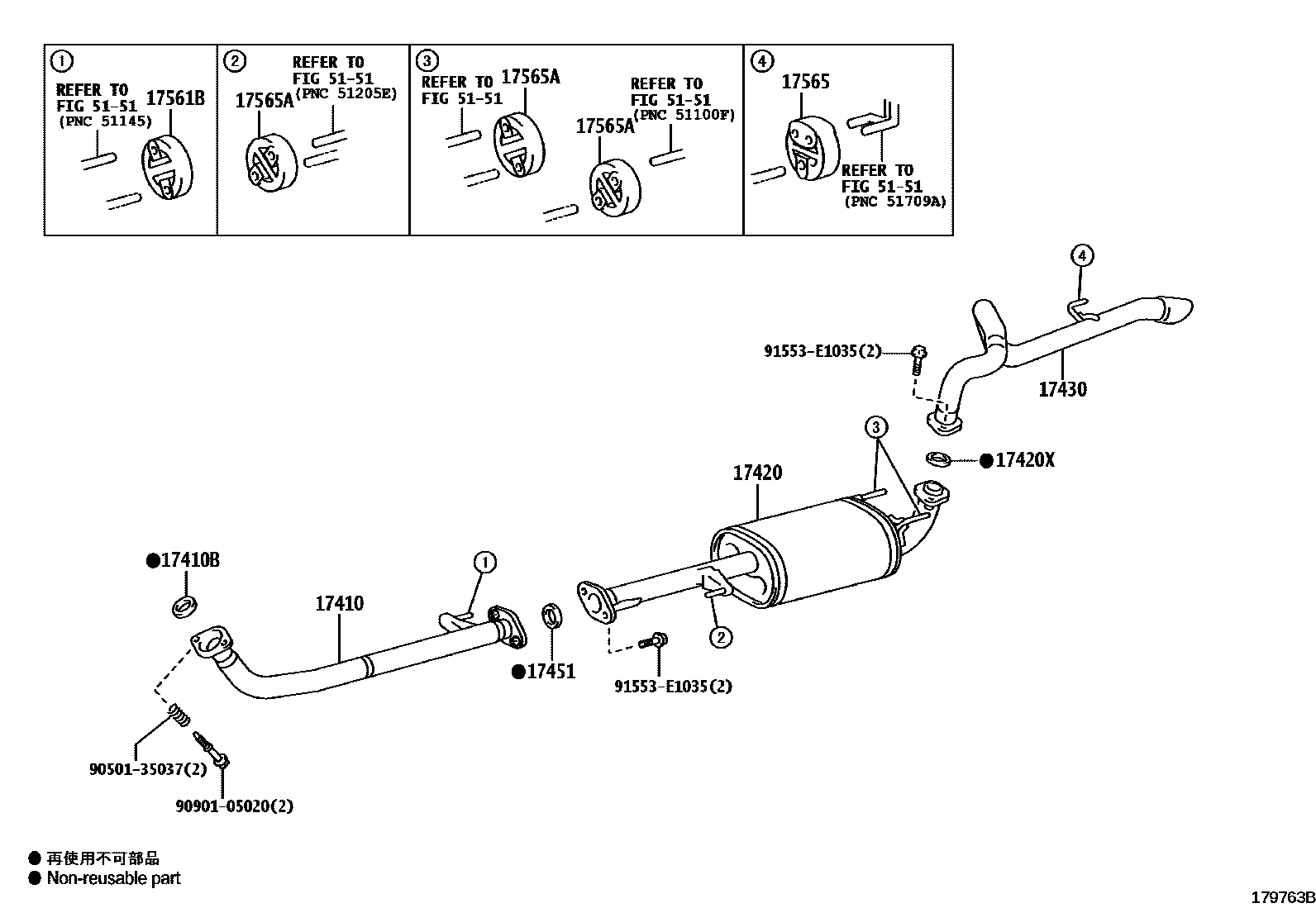

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/ZD4ZC7/Y,COLOMBIA SPEC&ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSIONCONTROL-EURO6 D
*114=TOYOTA/ZD4ZC7/Y,BHUTAN SPEC&ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
*114=TOYOTA/ZD4ZC7/Y,COSTA RICA SPEC&ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
*114=TOYOTA/AG4/Y,ENGINE-FOR EURO 4 CONFORMITY
ENGINE-FOR EURO 2 CONFORMITY,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
ENGINE-FOR EURO 3 CONFORMITY,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
*114=TOYOTA/TB7/Y,CHILE SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY
*114=TOYOTA/TB7/Y,ARGENTINA SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY
*114=TOYOTA/TB7/Y
ENGINE-FOR EURO 3-1 CONFORMITY
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
EXHAUST EMISSION CONTROL-EURO 5
GCC SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO6 D
sub17420-30370
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17561BSUPPORT, EXHAUST PIPE, NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
5151
9050135037
main90501-35037
9090105020
main90901-05020
91553E1035
main91553-E1035
13 parts on this diagram · 8 diagrams in section
