V-BELT

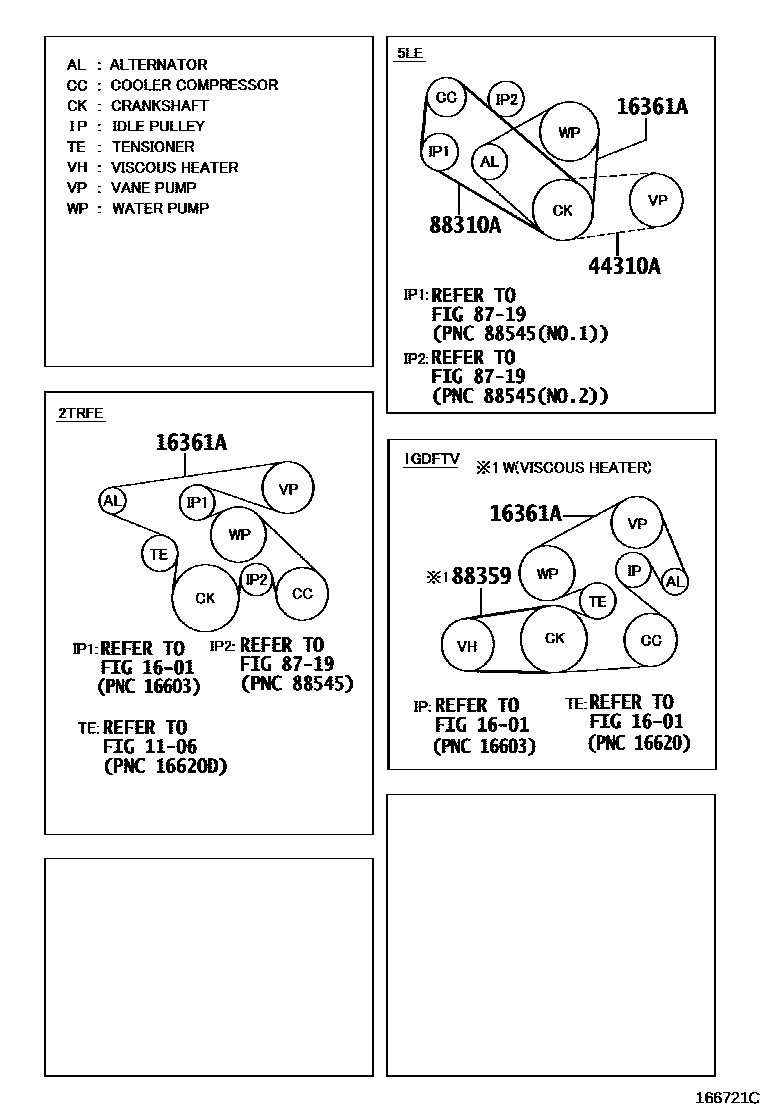

Parts diagram

1106

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92016i201708-202312

(L),MITSUBOSHI

main90080-92017i201708-202312

(L),BANDO

main90916-02211i201708-202312

(J)

main90916-02513i201708-202007

COLD AREA SPEC

main90916-02513i201708-202007

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

main90916-02513i201708-202007

COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)

main90916-02708i201708-202312

main99367-H2150i201708-202312

main99367-K1620i201708-202007

main99367-K2040i201708-202312

44310ABELT, V(FOR VANE PUMP)

main99332-00825i201708-202312

L=825

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-11210i201708-202312

L=1210

88359BELT, V(FOR VISCOUS HEATER)

main99364-K0890i202008-202312

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

main99364-K0890i202008-202312

COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)

main99364-K0890i202008-202312

COLD AREA SPEC

7 parts on this diagram · 2 diagrams in section
