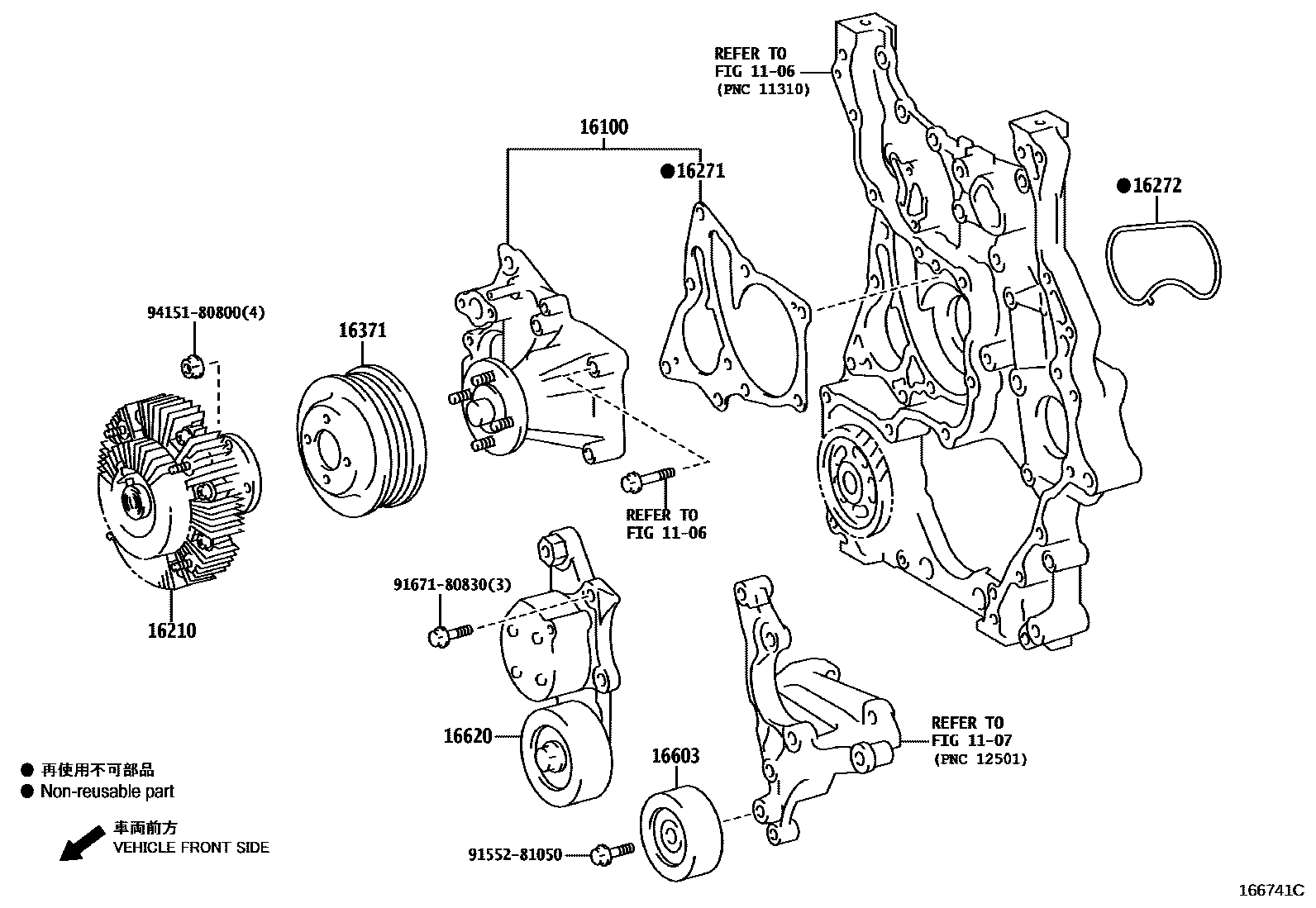

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1106

1107

16100PUMP ASSY, ENGINE WATER

main16100-19365i1GDFTV..GDJ150201708-202312

main16100-39545i1GRFE..GRJ150201708-202312

main16100-59257i5LE..LJ150201708-202312

main16100-69357i1KDFTV..KDJ150201708-202007

main16100-79445i2TRFE..TRJ15#201708-202312

16210COUPLING ASSY, FLUID

main16210-11030i1GDFTV..GDJ150201708-202312

main16210-30011i1KDFTV..KDJ150201708-202007

main16210-31040i1GRFE..GRJ150201708-202312

main16210-54220i5LE..LJ150201708-202312

main16210-75100i2TRFE..TRJ15#201708-202312

16271GASKET, WATER PUMP

main16271-11010i1GDFTV..GDJ150201708-202312

main16271-31040i1GRFE..GRJ150201708-202312

main16271-54030i5LE..LJ150201708-202312

main16271-67020i1KDFTV..KDJ150201708-202007

16272GASKET, WATER PUMP, NO.2

main16272-11010i1GDFTV..GDJ150201708-202312

16371PULLEY, FAN

main16371-11010i1GDFTV..GDJ150201708-202312

main16371-30020i1KDFTV..KDJ150201708-202007

main16371-31040i1GRFE..GRJ150201708-202312

main16371-54030i5LE..LJ150201708-202312

main16371-75040i2TRFE..TRJ15#201708-202312

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i1GDFTV..GDJ150201708-202312

main16603-31050i1GRFE..GRJ150201708-202312

16620TENSIONER ASSY, V-RIBBED BELT

main16620-11010i1GDFTV..GDJ150201708-202312

main16620-31051i1GRFE..GRJ150201708-202312

9155281050

main91552-81050

9167180830

main91671-80830

9415180800

main94151-80800

12 parts on this diagram · 5 diagrams in section
