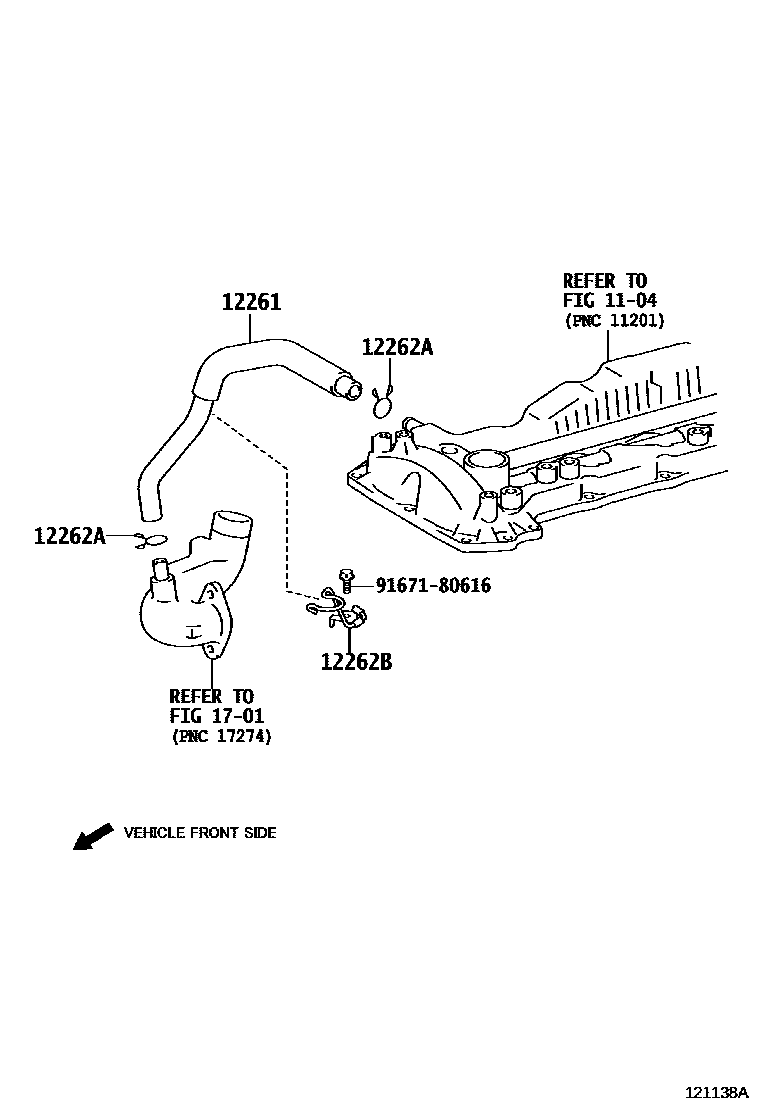

VENTILATION HOSE
1104
12261HOSE, VENTILATION
NO.2
NO.1
12262HOSE, VENTILATION, NO.2
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&COLD AREA SPEC
MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC
COSTA RICA SPEC&ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
COLOMBIA SPEC&ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO6 D
BHUTAN SPEC&ENGINE-FOR EURO 6C CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6 WITH(ONBOARD DIAGNOSIS)
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.1
NO.2
12262BCLAMP(FOR VENTILATION HOSE)
1701
9167180616
main91671-80616
7 parts on this diagram · 6 diagrams in section
