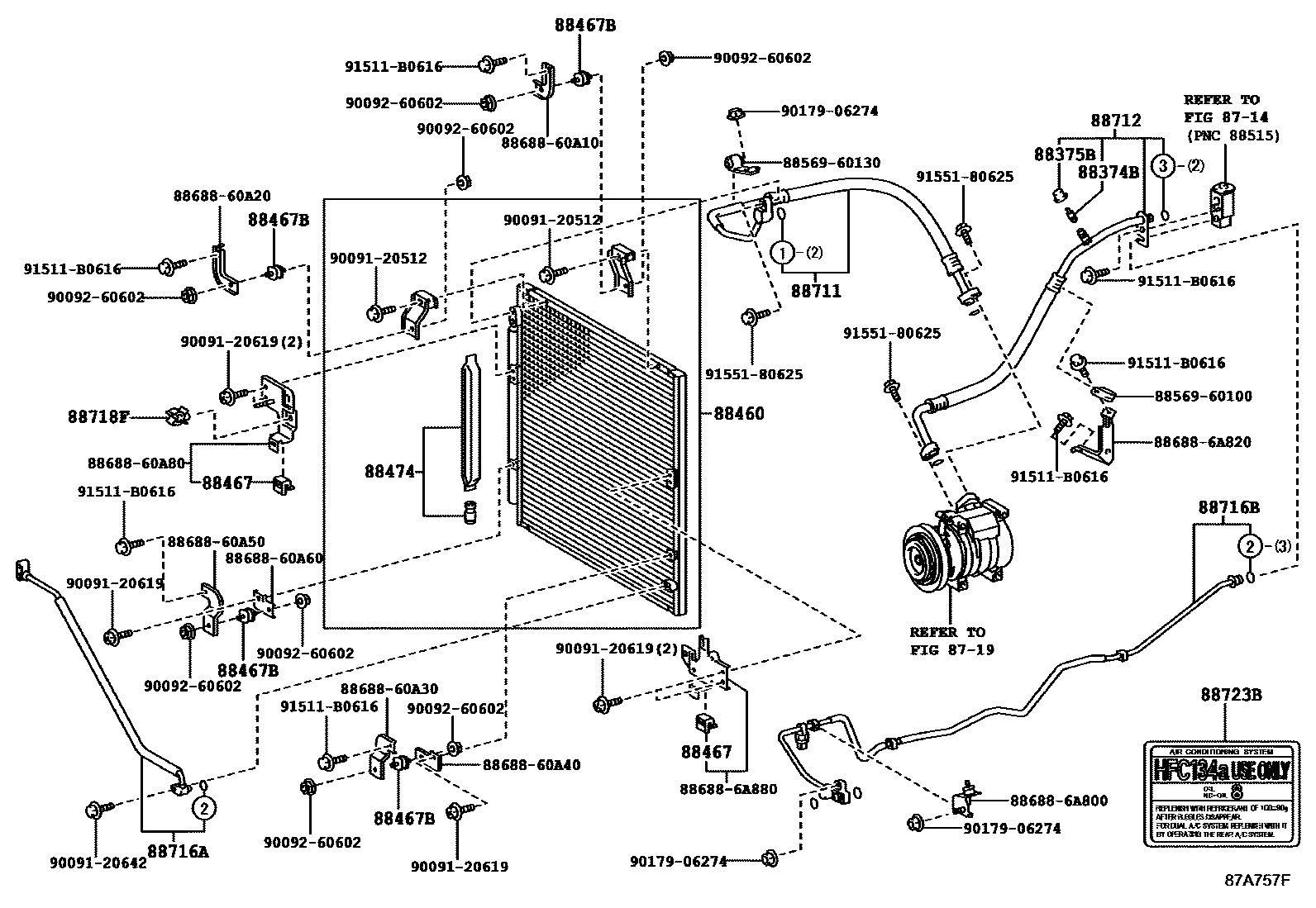

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1DEALER OPTION 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0018 1DEALER OPTION 0019 1DEALER OPTION 0020 1 0021 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iVDJL79..STD;VDJ76,L76,L78..RHD202309-202508

main88374-30010iHZJ7#202309

AIR CONDITIONER-WITH

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iVDJ7#..GCC202309-202409

main88375-30290iGDJ76,79,L7#..ARL202309

AIR CONDITIONER-WITH

88460CONDENSER ASSY, COOLER

main88460-60470iVDJ7#,L7#..ARL..(CBU,IV)201709-202508

main88460-60470iGDJ7#,L7#..ARL,GCC202309

AIR CONDITIONER-WITH

88467CUSHION, COOLER CONDENSER, NO.1

main88467-35080iVDJ7#,L7#..ARL..(CBU,IV)201709-202309

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-30270iVDJ7#,L7#..ARL..(CBU,IV)201709-202309

88474DRYER, COOLER

main88474-12030iGDJ7#,L7#..ARL,GCC202309

AIR CONDITIONER-WITH

main88474-12030iVDJ7#,L7#..ARL..(CBU,IV)201709-202508

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-60A20iVDJ79..RHD;VDJL79..LX201709-202508

main88711-60A40iVDJ7#..GCC202309-202409

main88711-60C00iGDJ7#..GEN202309

AIR CONDITIONER-WITH

main88711-60C10iGDJ7#..GCC202309

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-60A80iVDJ7#..GCC202309-202409

main88712-60C70iGDJ76,79,L7#..ARL202309

AIR CONDITIONER-WITH

main88712-60C80iGDJ7#..LHD..GEN202309-202504

AIR CONDITIONER-WITH

main88712-6A390iVDJL79..STD;VDJ76,L76,L78..RHD201709-202508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-6C250iVDJ7#,L7#..ARL..(CBU,IV)201709-202309

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-60D80iGDJ7#..RHD..GEN202309

AIR CONDITIONER-WITH

main88716-60E00iGDJ7#..GCC202309

AIR CONDITIONER-WITH

main88716-60E50iVDJ7#..GCC202309-202409

main88716-60E80iVDJL79..STD;VDJ76,L76,L78..RHD202309-202508

main88716-6C360iVDJ7#,L7#..ARL..(CBU,IV)201709-202309

88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

main88718-2F110iVDJ7#,L7#..ARL..(CBU,IV)201709-202309

88723BLABEL, COOLER SERVICE CAUTION

main88723-28220iVDJ79..RHD;VDJL79..LX201709-202508

main88723-28220iGDJ7#,L7#..ARL,GCC202309

AIR CONDITIONER-WITH

8856960100CLAMP (FOR COOLER RELAY)

main88569-60100

8856960130CLAMP (FOR COOLER RELAY)

main88569-60130

8868860A10BRACKET, COOLER DIAPHRAGM

main88688-60A10

8868860A20BRACKET, COOLER DIAPHRAGM

main88688-60A20

8868860A30BRACKET, COOLER DIAPHRAGM

main88688-60A30

8868860A40BRACKET, COOLER DIAPHRAGM

main88688-60A40

8868860A50BRACKET, COOLER DIAPHRAGM

main88688-60A50

8868860A60BRACKET, COOLER DIAPHRAGM

main88688-60A60

8868860A80BRACKET, COOLER DIAPHRAGM

main88688-60A80

886886A800BRACKET, COOLER DIAPHRAGM

main88688-6A800

886886A820BRACKET, COOLER DIAPHRAGM

main88688-6A820

886886A880BRACKET, COOLER DIAPHRAGM

main88688-6A880

9009120512

main90091-20512

9009120619

main90091-20619

9009120642

main90091-20642

9009260602

main90092-60602

9017906274

main90179-06274

91511B0616

main91511-B0616

9155180625

main91551-80625

33 parts on this diagram · 31 diagrams in section
