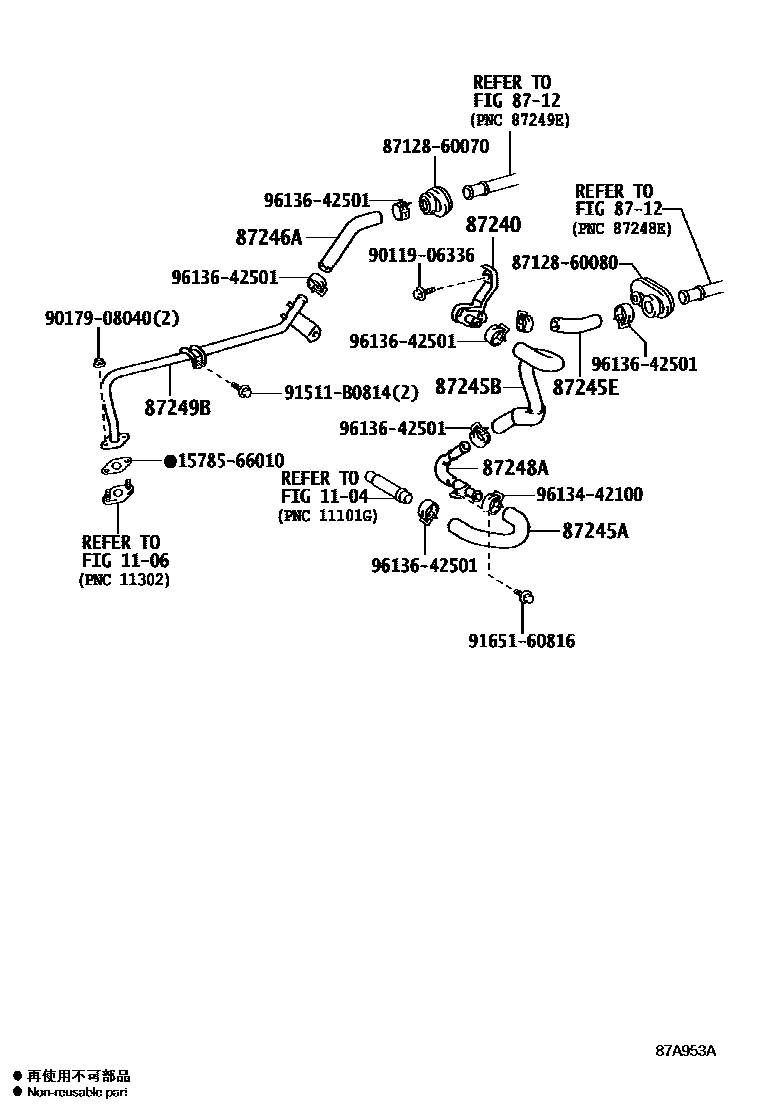

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT:W(REAR HEATER) 0003 1FRONT 0004 1FRONT 0006 1FRONT:W(REAR HEATER) 0007 1FRONT:W(REAR HEATER) 0008 1FRONT 0009 1FRONT 0010 1FRONT 0012 1FRONT 0013 1FRONT:W(REAR HEATER) 0014 1FRONT:W(REAR HEATER) 0015 1FRONT 0016 1FRONT 0017 1FRONT 0018 1REAR 0019 1REAR 0020 1REAR 0021 1REAR 0022 1REAR 0023 1REAR 0024 1REAR

1104

1106

8712

87240VALVE ASSY, HEATER WATER

main87240-60110iHZJ7#200701-201208

HEATER-W(FRONT)

main87240-60210iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

87245AHOSE, HEATER WATER, INLET A

main87245-60160iHZJ7#..RHD201208-201608

CKD PACKAGE(BANGLADESH)

main87245-60A70iVDJ7#..RHD201608-201709

main87245-60A71iVDJ7#..GCC201709-202309

HEATER-WITH(FRONT & ALUMI CORE)

main87245-60E90iGRJ79..RHD;GRJ71..STD..GEN201608-202309

HEATER-WITH(FRONT & ALUMI CORE)

main87245-60W50iGDJ7#,L7#202309

main87245-6A580iFZJ76,78..GEN200701-200907

HEATER-W(FRONT)

87245BHOSE, HEATER WATER, INLET B

main87245-6A550iFZJ7#200701-200907

HEATER-W(FRONT)

main87245-6A570iFZJ76,78..GEN200701-200907

HEATER-W(FRONT & REAR)

87245EHOSE, HEATER WATER, INLET E

main87245-60290iVDJ7#..GCC201701-202309

HEATER-WITH(FRONT & ALUMI CORE)

87246AHOSE, HEATER WATER, OUTLET A

main87245-60171iHZJ7#..RHD201208-201608

CKD PACKAGE(BANGLADESH)

main87245-60A60iVDJ7#,L7#..RHD..(CBU,IV)201608-202309

main87245-60E70iGRJ79..RHD;GRJ71..STD..GEN201608-202309

HEATER-WITH(FRONT & ALUMI CORE)

main87245-60W80iGDJ7#,L7#202309

main87245-60251iHZJ78;HZJ76,79..LHD..(DCB,HT)202309

HEATER-WITH(FRONT & REAR & ALUMI CORE)

main87245-60360iFZJ76,78..GEN200701-200907

HEATER-W(FRONT & REAR)

main87245-60E80iGRJ78200907-201208

HEATER-W(FRONT & REAR)

main87245-6A560iFZJ7#200701-200907

HEATER-W(FRONT)

87248APIPE, HEATER WATER INLET, A

main87248-60720iFZJ76,78..GEN200701-200907

HEATER-W(FRONT)

87249BPIPE, HEATER WATER OUTLET, B

main87208-60400iVDJ7#..RHD201608-201709

main87208-60401iVDJ7#..GCC201709-202309

HEATER-WITH(FRONT & ALUMI CORE)

main87208-60161iFZJ76,78..GEN200701-200907

HEATER-W(FRONT)

1578566010GASKET, OIL COOLER

main15785-66010

8712860070GROMMET, HEATER

main87128-60070

8712860080GROMMET, HEATER

main87128-60080

9011906336

main90119-06336

9017908040

main90179-08040

91511B0814

main91511-B0814

9165160816

main91651-60816

9613442100

main96134-42100

9613642501

main96136-42501

19 parts on this diagram · 22 diagrams in section
