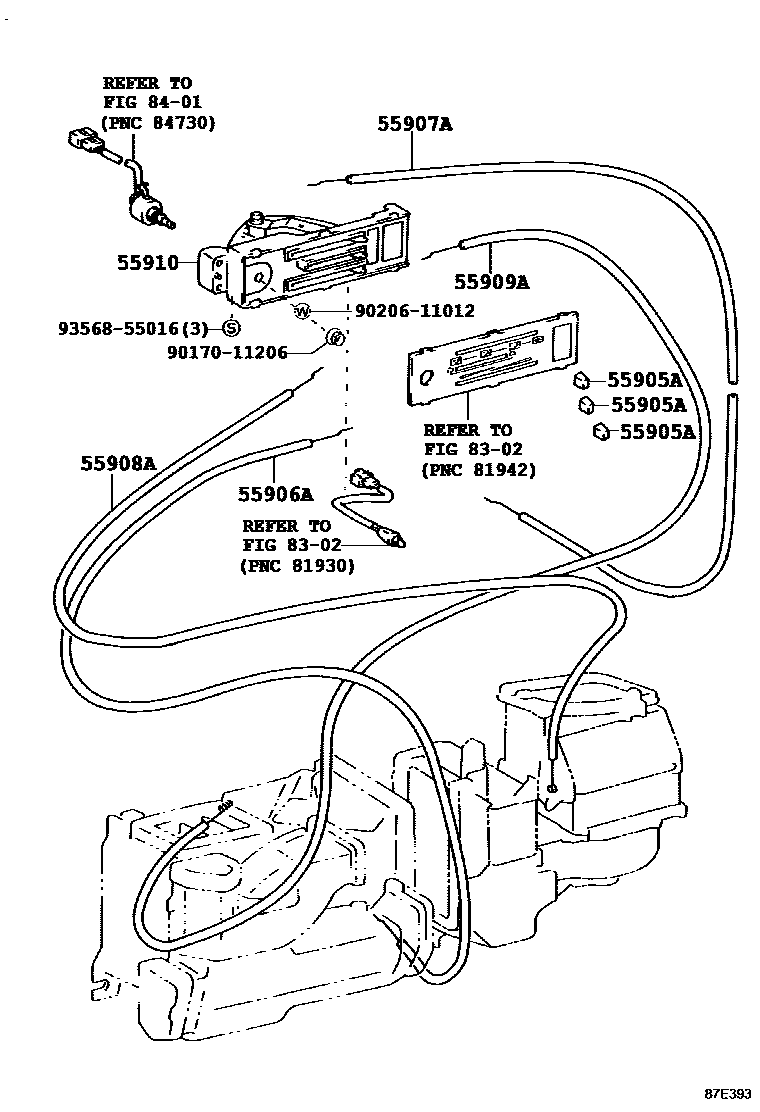

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1CONTROL PANEL:BOOST VENTILATE0006 1CONTROL PANEL:HEATER 0009 1CONTROL PANEL:HEATER & COOLER0012 1CONTROL PANEL:BOOST VENTILATE0014 1CONTROL PANEL:HEATER 0017 1CONTROL PANEL:HEATER & COOLER0020 1AIR DUCT 0021 1AIR DUCT 0022 1AIR DUCT:W/O(B/V OR HEATER) 0023 1AIR DUCT:BOOST VENTILATER 0026 1AIR DUCT:HEATER 0029 1AIR DUCT:HEATER & W(SIDE DEFR0033 1AIR DUCT:BOOST VENTILATER 0035 1AIR DUCT:HEATER 0038 1AIR DUCT:HEATER & W(SIDE DEFR

55905AKNOB, HEATER CONTROL

main55905-89110iFZJ76,78,HZJ76,78..GEN200701-200907

HEATER-W(FRONT & REAR),DEF-VENT,WARM-COOL

main55905-89110iFZJ76,78,HZJ76,78..GEN200701-200907

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL

main55905-89110iFZJ76,78,HZJ76,78..GEN200701-200907

DEF-VENT,WARM-COOL

main55905-89110iFZJ76,78,HZJ76,78..GEN200701-200907

HEATER-BOOST VENTILATOR,DEF-VENT,WARM-COOL

main55905-89110iFZJ76,78,HZJ76,78..GEN200701-200907

HEATER-W(FRONT),DEF-VENT,WARM-COOL

main55905-89110iFZJ76,78,HZJ76,78..GEN200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL

main55905-95J01iFZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7#200701-200907

FRESH-RECIRC

sub55905-89110

main55905-95J01iFZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7#200701-200907

HEATER-BOOST VENTILATOR,FRESH-RECIRC

sub55905-89110

main55905-95J01iFZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7#200701-200907

HEATER-W(FRONT),FRESH-RECIRC

sub55905-89110

main55905-95J01iFZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7#200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRESH-RECIRC

sub55905-89110

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-60110iGDJ7#,L7#,GRJ7#,HZJ7#200907-202508

main55906-60110iGRJ79,HZJ79..STD..GCC200907-201008

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55906-60110iGRJ79,HZJ79..STD..GCC200907-201008

HEATER-W(FRONT)

main55906-60110iGRJ79,HZJ79..STD..GCC200907-201008

HEATER-BOOST VENTILATOR

main55906-90K00iFZJ71,78,79,HZJ7#,VDJ7#..RHD200701-200907

main55906-90K01iFZJ79,HZJ79..STD..GCC200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55906-90K01iFZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD200701-200907

HEATER-BOOST VENTILATOR

main55906-90K01iFZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD200701-200907

HEATER-W(FRONT)

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60160iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD201608-202309

HEATER-WITH(FRONT & ALUMI CORE)

main55907-60160iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD201608-202309

HEATER-WITH(FRONT & ALUMI CORE)&AIR CONDITIONER-WITH

main55907-60160iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD201608-202309

HEATER-WITH(FRONT & REAR & ALUMI CORE)

main55907-60160iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD201608-202309

HEATER-WITH(FRONT & REAR & ALUMI CORE)&AIR CONDITIONER-WITH

main55907-60160iVDJ79..RHD;VDJL79..LX201208-202508

main55907-60160iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT)

main55907-60160iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55907-60160iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT & REAR)

main55907-60160iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55907-90K01iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55907-90K01iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT & REAR)

main55907-90K01iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55907-90K01iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT)

main55907-90K02iFZJ71,78,79,HZJ7#..RHD200701-200907

HEATER-W(FRONT & REAR)

main55907-90K02iVDJ7#200701-200907

HEATER-W(FRONT)

main55907-90K02iVDJ7#200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55907-90K02iVDJ7#200701-200907

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-60090iGDJ7#,L7#,GRJ7#,HZJ7#200907-202508

main55908-60090iGRJ79,HZJ79..STD..GCC200907-201008

HEATER-BOOST VENTILATOR

main55908-60090iGRJ79,HZJ79..STD..GCC200907-201008

HEATER-W(FRONT)

main55908-60090iGRJ79,HZJ79..STD..GCC200907-201008

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55908-90K00iFZJ71,78,79,HZJ7#,VDJ7#..RHD200701-200907

main55908-90K01iFZJ79,HZJ79..STD..GCC200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55908-90K01iFZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD200701-200907

HEATER-BOOST VENTILATOR

main55908-90K01iFZJ79,HZJ79..STD..GCC200701-200907

HEATER-W(FRONT)

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-60120iGRJ71,78,79,HZJ7#..RHD200907-201208

HEATER-W(FRONT)

main55909-60120iGDJ7#,L7#,GRJ79,HZJ7#..RHD200907-202508

main55909-60120iGRJ78,HZJ76,78..RHD200907-201208

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55909-60120iGRJ78,HZJ76,78..RHD200907-201208

HEATER-W(FRONT & REAR)

main55909-60120iGRJ78,HZJ76,78..RHD200907-201208

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55909-60130iHZJ76,78,79..LHD..(DCB,HT)201608-202309

HEATER-WITH(FRONT & ALUMI CORE)

main55909-60130iGRJ71..LHD..STD..GEN200907-201608

HEATER-W(FRONT)

main55909-60130iGRJ71..LHD..STD..GEN200907-201608

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55909-60130iGRJ71..LHD..STD..GEN200907-201608

HEATER-W(FRONT & REAR)

main55909-60130iGRJ71..LHD..STD..GEN200907-201608

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55909-60130iGRJ71..SOT200911-202409

main55909-60130iHZJ76,78,79..GCC201608-202309

HEATER-WITH(FRONT & ALUMI CORE)&AIR CONDITIONER-WITH

main55909-60130iGRJ71..STD..GEN201608-202309

HEATER-WITH(FRONT & REAR & ALUMI CORE)

main55909-60130iGRJ71..STD..GEN201608-202309

HEATER-WITH(FRONT & REAR & ALUMI CORE)&AIR CONDITIONER-WITH

main55909-90K02iFZJ71,78,79,HZJ7#..RHD200701-200907

HEATER-W(FRONT)

main55909-90K02iFZJ71,78,79,HZJ7#..RHD200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55909-90K02iFZJ78,HZJ76,78..RHD200701-200907

HEATER-W(FRONT & REAR)

main55909-90K02iFZJ78,HZJ76,78..RHD200701-200907

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55909-90K03iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55909-90K03iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT)

main55909-90K03iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55909-90K03iFZJ76,78,HZJ76,78..LHD..GEN200701-200907

HEATER-W(FRONT & REAR)

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60220iVDJ7#200701-200907

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55910-60220iVDJ7#200701-200907

HEATER-W(FRONT)

main55910-60220iVDJ7#200701-200907

HEATER-W(FRONT & REAR)

main55910-60220iVDJ7#200701-200907

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55910-60230iFZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78200701-200907

HEATER-BOOST VENTILATOR

main55910-60260iGRJ79,HZJ79..STD..GCC200907-201008

HEATER-BOOST VENTILATOR

main55910-60260iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-202309

main55910-60260iHZJ71,79..RHD..(PIC,SOT)201208-201909

CKD PACKAGE(BANGLADESH)

main55910-60260iHZJ71,79..RHD..(PIC,SOT)202309

BANGLADESH SPEC&BATTERY-80D26R X 2

main55910-60260iHZJ71,79..RHD..(PIC,SOT)201909-202309

BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)

main55910-60270iGDJ7#,L7#;GRJ71..GEN;GRJ79,HZJ7#..RHD201608-202309

HEATER-WITH(FRONT & REAR & ALUMI CORE)

main55910-60270iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD201608-202309

HEATER-WITH(FRONT & ALUMI CORE)

main55910-60270iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD201608-202309

HEATER-WITH(FRONT & ALUMI CORE)&AIR CONDITIONER-WITH

main55910-60270iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD201608-202309

HEATER-WITH(FRONT & REAR & ALUMI CORE)&AIR CONDITIONER-WITH

main55910-60270iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT)

main55910-60270iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT)&AIR CONDITIONER-WITH

main55910-60270iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT & REAR)

main55910-60270iGRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD200907-201608

HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH

main55910-60270iGRJ71..STD..GEN;GRJ79,HZJ7#..RHD..(HT,PIC,SOT)201208-202508

8302

8401

9017011206

main90170-11206

9020611012

main90206-11012

9356855016

main93568-55016

11 parts on this diagram · 17 diagrams in section
