MIRROR

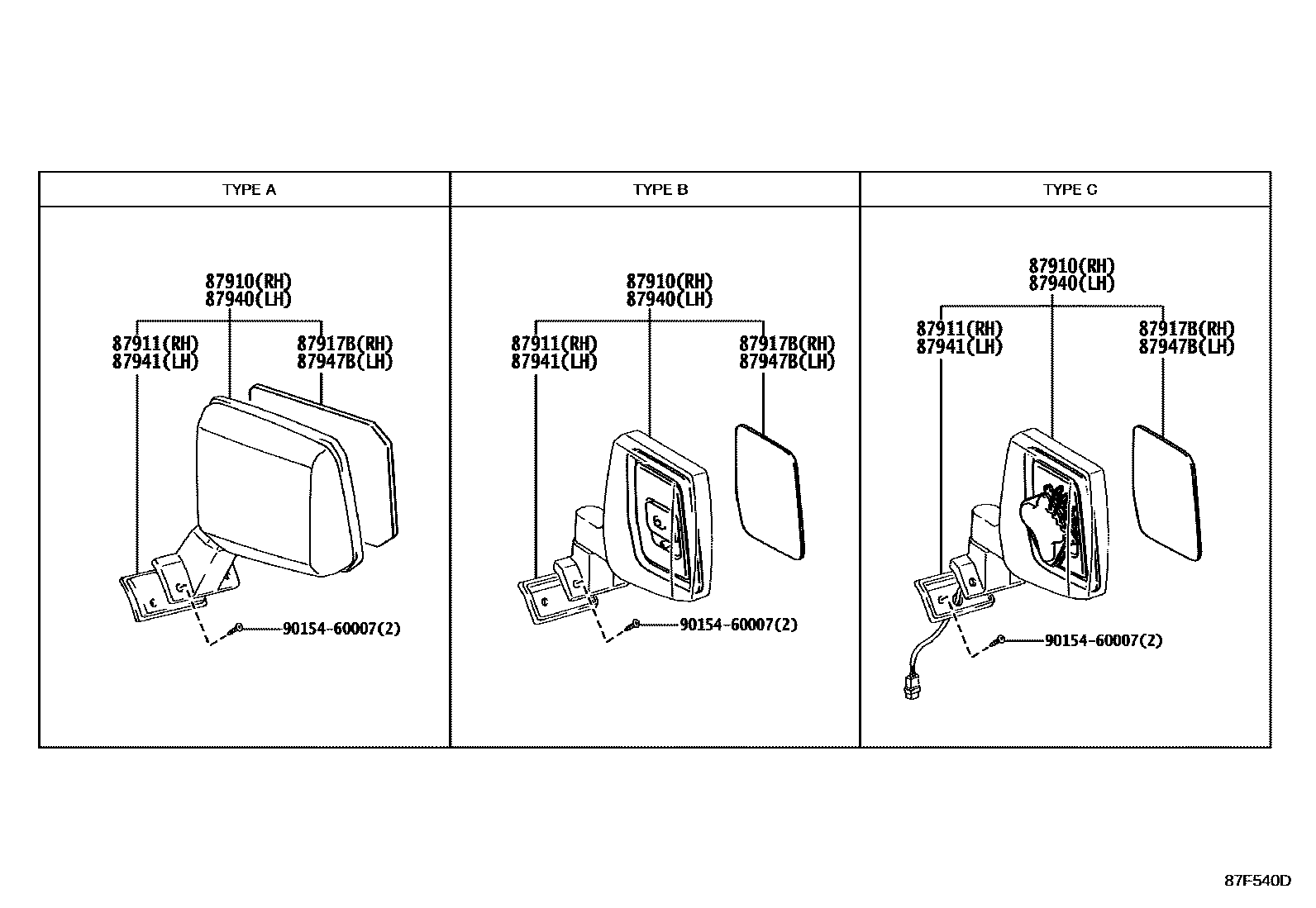

Parts diagram
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-60142i200701-202309
NO PAINT REQ.,TYPE B:REFER ILLUST.
main87910-60142i200701-201608
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-W/O(PLATING),TYPE B:REFER ILLUST.
main87910-60142i200701-200907
NO PAINT REQ.,REAR SEAT-TRANSVERSE SEAT,TYPE B:REFER ILLUST.
main87910-60142i202107-202309
TYPE B:REFER ILLUST.
main87910-60142i201608-202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK),TYPE B:REFER ILLUST.
main87910-60152i201608-202107
FRONT BUMPER-WITH(PLATING GARNISH),TYPE B:REFER ILLUST.
main87910-60152i200701-201608
PLATED,TYPE B:REFER ILLUST.
main87910-60152i200701-201608
PLATED,OUTSIDE REAR VIEW MIRROR-W(PLATING),TYPE B:REFER ILLUST.
main87910-60152i200701-201608
PLATED,FRONT BUMPER-WITH(PLATING GARNISH),TYPE B:REFER ILLUST.
main87910-60152i201608-202107
TYPE B:REFER ILLUST.
main87910-60152i201608-202107
OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED,TYPE B:REFER ILLUST.
main87910-60333i200701-201208
NO PAINT REQ.,TYPE B:REFER ILLUST.
sub87910-60142
main87910-60363i200701-201208
PLATED,TYPE B:REFER ILLUST.
sub87910-60A91
main87910-60680i201608-202107
TYPE B:REFER ILLUST.
main87910-60680i200701-201608
NO PAINT REQ.,TYPE B:REFER ILLUST.
main87910-60680i201608-201612
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK),TYPE B:REFER ILLUST.
main87910-60A70i200701-201208
PLATED,TYPE B:REFER ILLUST.
sub87910-60152
main87910-60A91i201208-201608
PLATED,TYPE B:REFER ILLUST.
main87910-60A91i201608-202309
PLATED,TYPE A:REFER ILLUST.
main87910-60A91i201608-202309
PLATED,FRONT BUMPER-WITH(PLATING GARNISH),TYPE A:REFER ILLUST.
main87910-60A91i201608-202309
PLATED,OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED,TYPE A:REFERILLUST.
main87910-60A91i202107-202309
TYPE A:REFER ILLUST.
main87910-60A91i202107-202309
FRONT BUMPER-WITH(PLATING GARNISH),TYPE A:REFER ILLUST.
main87910-60A91i202107-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED,TYPE A:REFER ILLUST.
main87910-60A91i202107-202309
70TH PACKAGE(BODY COLOR BUMPER),TYPE A:REFER ILLUST.
main87910-60A91i202107-202309
70TH PACKAGE(BODY COLOR BUMPER) & PLATED,TYPE A:REFER ILLUST.
main87910-60A91i202107-202309
70TH PACKAGE(BLACK BUMPER),TYPE A:REFER ILLUST.
main87910-60Y40i202309-202508
NO PAINT REQ.
main87910-60Y40i202309-202508
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87910-60Y50i202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87910-60Y50i202309-202409
NO PAINT REQ.
main87910-60Z80i202209-202309
PLATED,OUTSIDE REAR VIEW MIRROR-*DRS(*DM & FLAT) & *PAS(ROUND) & PAINTED,TYPE B:REFER ILLUST.
main87910-60Z80i202209-202309
PLATED,TYPE B:REFER ILLUST.
main87910-60Z90i202209-202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM & FLAT) & *PAS(ROUND),TYPE B:REFERILLUST.
main87910-60Z90i202209-202309
NO PAINT REQ.,TYPE B:REFER ILLUST.
main87910-6A860i202309-202508
NO PAINT REQ.
main87910-6A860i202309-202508
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&REMORT&PAINTED)
main87910-6A890i202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&REMORT&PAINTED)
main87910-6A890i202309
NO PAINT REQ.
main87910-6AA20i202309-202409
NO PAINT REQ.
main87910-90K00i200701-201508
NO PAINT REQ.,TYPE A:REFER ILLUST.
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-60060i200701-201208
main87911-90K00i200701-201508
main87911-90K01i200701-201612
main87911-90K01i200701-201608
OUTSIDE REAR VIEW MIRROR-W/O(PLATING)
main87911-90K01i201608-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87911-90K01i201608-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED
main87911-90K01i200701-200907
REAR SEAT-TRANSVERSE SEAT
87917BMIRROR, OUTER REAR VIEW, RH
main87917-60680i200701-202107
main87917-90K00i200701-201508
main87917-90K01i200701-201608
OUTSIDE REAR VIEW MIRROR-W/O(PLATING)
main87917-90K01i200701-202309
main87917-90K01i201608-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87917-90K01i200701-201608
OUTSIDE REAR VIEW MIRROR-W(PLATING)
main87917-90K01i200701-200907
REAR SEAT-TRANSVERSE SEAT
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-60273i200701-201208
NO PAINT REQ.,TYPE B:REFER ILLUST.
sub87940-60372
main87940-60303i200701-201208
PLATED,TYPE B:REFER ILLUST.
sub87940-60A81
main87940-60372i200701-201608
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-W/O(PLATING),TYPE B:REFER ILLUST.
main87940-60372i200701-202309
NO PAINT REQ.,TYPE B:REFER ILLUST.
main87940-60372i201608-202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK),TYPE B:REFER ILLUST.
main87940-60372i202107-202309
TYPE B:REFER ILLUST.
main87940-60372i200701-200907
NO PAINT REQ.,REAR SEAT-TRANSVERSE SEAT,TYPE B:REFER ILLUST.
main87940-60382i201608-202107
TYPE B:REFER ILLUST.
main87940-60382i200701-201608
PLATED,TYPE B:REFER ILLUST.
main87940-60382i200701-201608
PLATED,OUTSIDE REAR VIEW MIRROR-W(PLATING),TYPE B:REFER ILLUST.
main87940-60382i200701-201608
PLATED,FRONT BUMPER-WITH(PLATING GARNISH),TYPE B:REFER ILLUST.
main87940-60382i201608-202107
FRONT BUMPER-WITH(PLATING GARNISH),TYPE B:REFER ILLUST.
main87940-60382i201608-202107
OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED,TYPE B:REFER ILLUST.
main87940-60600i201608-201612
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK),TYPE B:REFER ILLUST.
main87940-60600i200701-201608
NO PAINT REQ.,TYPE B:REFER ILLUST.
main87940-60600i201608-202107
TYPE B:REFER ILLUST.
main87940-60A60i200701-201208
PLATED,TYPE B:REFER ILLUST.
sub87940-60382
main87940-60A81i201608-202309
PLATED,FRONT BUMPER-WITH(PLATING GARNISH),TYPE A:REFER ILLUST.
main87940-60A81i201608-202309
PLATED,OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED,TYPE A:REFERILLUST.
main87940-60A81i202107-202309
TYPE A:REFER ILLUST.
main87940-60A81i202107-202309
FRONT BUMPER-WITH(PLATING GARNISH),TYPE A:REFER ILLUST.
main87940-60A81i202107-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED,TYPE A:REFER ILLUST.
main87940-60A81i202107-202309
70TH PACKAGE(BODY COLOR BUMPER) & PLATED,TYPE A:REFER ILLUST.
main87940-60A81i202107-202309
70TH PACKAGE(BLACK BUMPER),TYPE A:REFER ILLUST.
main87940-60A81i202107-202309
70TH PACKAGE(BODY COLOR BUMPER),TYPE A:REFER ILLUST.
main87940-60A81i201208-202309
PLATED,TYPE B:REFER ILLUST.
main87940-60A81i201608-202309
PLATED,TYPE A:REFER ILLUST.
main87940-60A81i202209-202309
PLATED,OUTSIDE REAR VIEW MIRROR-*DRS(*DM & FLAT) & *PAS(ROUND) & PAINTED,TYPE B:REFER ILLUST.
main87940-60Y40i202309-202508
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87940-60Y40i202309-202508
NO PAINT REQ.
main87940-60Y50i202309-202409
NO PAINT REQ.
main87940-60Y50i202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87940-60Y80i202309-202409
NO PAINT REQ.
main87940-6A730i202309-202508
NO PAINT REQ.
main87940-6A730i202309-202508
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&REMORT&PAINTED)
main87940-6A750i202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&REMORT&PAINTED)
main87940-6A750i202309
NO PAINT REQ.
main87940-90K00i200701-201508
NO PAINT REQ.,TYPE A:REFER ILLUST.
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87911-60060i200701-201208
main87911-90K00i200701-201508
main87911-90K01i200701-201608
OUTSIDE REAR VIEW MIRROR-W/O(PLATING)
main87911-90K01i200701-200907
REAR SEAT-TRANSVERSE SEAT
main87911-90K01i200701-201612
main87911-90K01i201608-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87911-90K01i201608-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&E MARK)&PAINTED
87947BMIRROR, OUTER REAR VIEW, LH
main87947-60600i200701-202107
main87947-90K00i200701-201508
main87947-90K01i200701-200907
REAR SEAT-TRANSVERSE SEAT
main87947-90K01i201608-202309
OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)
main87947-90K01i200701-202309
main87947-90K01i200701-201608
OUTSIDE REAR VIEW MIRROR-W(PLATING)
main87947-90K01i200701-201608
OUTSIDE REAR VIEW MIRROR-W/O(PLATING)
9015460007
main90154-60007

7 parts on this diagram · 3 diagrams in section
