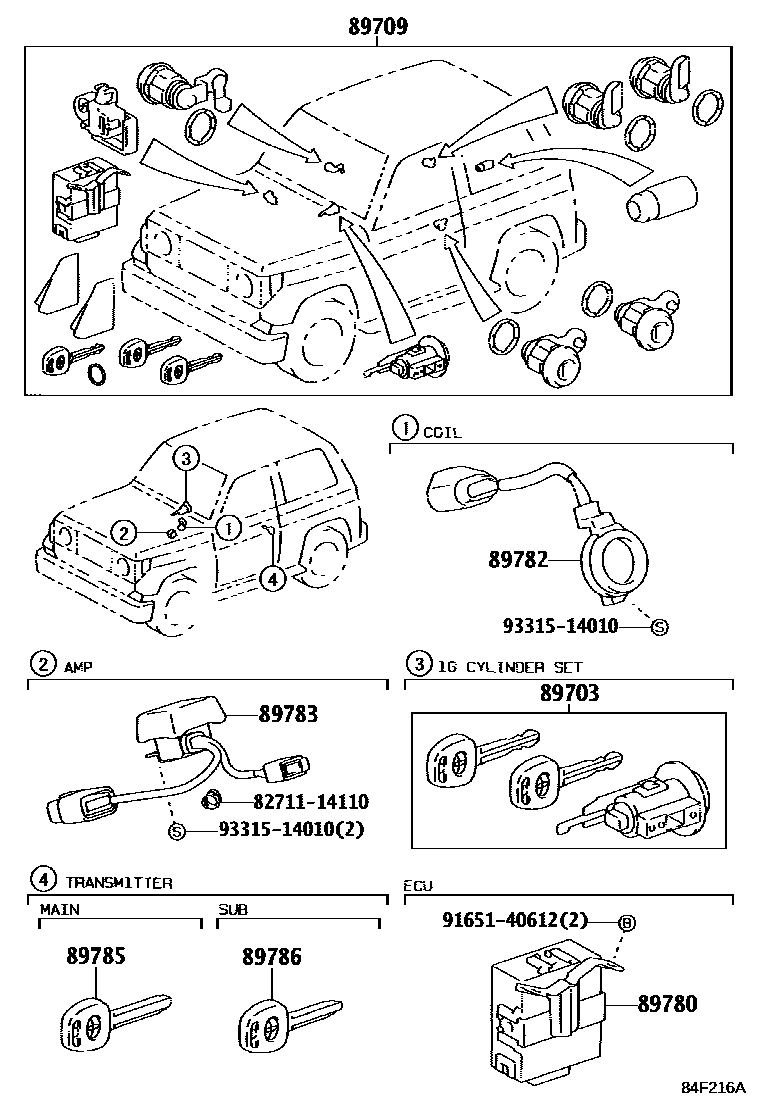

ANTI-THEFT DEVICE
89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)
89709COMPUTER SET, TRANSPONDER KEY
BLACK,TRIM1#,4#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&SPARE WHEEL CARRIER-BACK DOOR FRAME, WITH(LOCK)&GLOVE BOX-WITH(KEY),BLACK,TRIM1#,4#
FUEL TANK-90L,BLACK,TRIM1#,4#
FUEL TANK-90L, WITH(FUEL TANK CAP KEY),BLACK,TRIM1#,4#
sub89709-60300
89780COMPUTER ASSY, TRANSPONDER KEY
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
SAUDI ARABIA SPEC&SPARE WHEEL CARRIER-BACK DOOR FRAME, WITH(LOCK)&GLOVE BOX-WITH(KEY)
89782COIL, TRANSPONDER KEY
SAUDI ARABIA SPEC&SPARE WHEEL CARRIER-BACK DOOR FRAME, WITH(LOCK)&GLOVE BOX-WITH(KEY)
89783AMPLIFIER, TRANSPONDER KEY
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
SAUDI ARABIA SPEC&SPARE WHEEL CARRIER-BACK DOOR FRAME, WITH(LOCK)&GLOVE BOX-WITH(KEY)
89785TRANSMITTER, TRANSPONDER KEY MASTER
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
89786TRANSMITTER, TRANSPONDER KEY SUB
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
VENEZUELA SPEC&GLOVE BOX-WITH(KEY)
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9165140612
main91651-40612
9331514010
main93315-14010
10 parts on this diagram · 5 diagrams in section
